Measuring range:
see technical data
|
Measurement parameters:
Sodium ions | Potassium ions | Nitrate ions | Calcium ions | Temperature
With the HORIBA 4M LAQUAtwin Kit you get a high-quality mobile laboratory for your analyses.The high-quality case contains the well-known ion selectives "Made in Japan" LAQUAtwin Pocket Tester for sodium, potassium, nitrate and calcium determination and offers you a price advantage, as you receive the case including accessories free of charge compared to a single purchase. The lid of the case itself contains a storage box for the colour-sorted calibration solutions included in the scope of delivery, as well as a wash / spray bottle for easy cleaning of the sensors.The case itself can hold up to seven HORIBA LAQUAtwin Pocket Testers, so simply add the additional testers you want to the shopping basket and we will take care of everything else.As usual, the manufacturer provides a two-year warranty and the devices offer the advantage that the sensors can be stored dry and you do not need any storage solutions.Do you have any questions? Please feel free to call us!Manufacturer Part No. 1300083234
Measurement parameters:
Dissolved oxygen and temperature
The high-quality multi-parameter hand-held meters of the LAQUA 200 series manufactured by Horiba are suitable for use in the field under any conditions and in direct daylight thanks to their monochrome LCD display with LED backlight. Another advantage of these devices is that the hand-held meters are very shock and scratch resistant due to the special rubber coating and offer a long operating time due to the AA 2500 mAh batteries used. An IP67 certification, which certifies dust-tightness and protection against temporary submersion for up to 30 minutes at a water depth of one metre, rounds off the professional overall package in addition to the ergonomic design and simple operation. In the certainty of producing high-quality devices, the manufacturer Horiba offers you a three-year guarantee on the hand-held measuring devices of the LAQUA 200 series. During the measurements, the user is supported by the display of instructions in the form of smiley symbols. This is intended to prevent operating errors that can lead to implausible measurement results. Furthermore, the measuring device has only 9 keys and no menu texts. This design decision serves, among other things, to ensure that the device can be operated as easily as possible during discontinuous use or when used by other users. The Horiba meters have an electrode wear indicator, a lock function to "save" the current measured value on the display, automatic calibration functions and a self-diagnostic function. The fold-out stand on the back of the units means that you always have your hands free to carry out your measurements easily and safely. Instruments marked as "Kit" are delivered in a reinforced measuring case for mobile use in the open air. This contains the exchangeable measuring electrode, the corresponding cable which is connected to the device and the electrode, as well as the suitable buffer or calibration solutions including instructions. If you want to carry out measurements of different parameters with different electrodes, you can simply connect the electrodes to each other at the upper part and then immerse them in the measuring solution. DO220 kit version with GLP functions Measurement data storage of 1000, instead of 500 data sets Measurement and calibration data are stored GLP compliant with date and time stamp PC communication via optional USB cable RS232 printer function to print the measurement data Scope of delivery:Handheld meter DO210 or DO2209552-20D Galvanic DO probe, 2 meter cable2x AA batteryrugged measuring case manual and quick reference guideManufacturer article number: 3200779530 (DO210-K) 3200779531 (DO220-K)
Measurement parameters:
Dissolved oxygen and temperature
The high-quality multi-parameter hand-held meters of the LAQUA 200 series manufactured by Horiba are suitable for use in the field under any conditions and in direct daylight thanks to their monochrome LCD display with LED backlight. Another advantage of these devices is that the hand-held meters are very shock and scratch resistant due to the special rubber coating and offer a long operating time due to the AA 2500 mAh batteries used. An IP67 certification, which certifies dust-tightness and protection against temporary submersion for up to 30 minutes at a water depth of one metre, rounds off the professional overall package in addition to the ergonomic design and simple operation. In the certainty of producing high-quality devices, the manufacturer Horiba offers you a three-year guarantee on the hand-held measuring devices of the LAQUA 200 series. During the measurements, the user is supported by the display of instructions in the form of smiley symbols. This is intended to prevent operating errors that can lead to implausible measurement results. Furthermore, the measuring device has only 9 keys and no menu texts. This design decision serves, among other things, to ensure that the device can be operated as easily as possible during discontinuous use or when used by other users. The Horiba meters have an electrode wear indicator, a lock function to "save" the current measured value on the display, automatic calibration functions and a self-diagnostic function. The fold-out stand on the back of the units means that you always have your hands free to carry out your measurements easily and safely. Instruments marked as "Kit" are delivered in a reinforced measuring case for mobile use in the open air. This contains the exchangeable measuring electrode, the corresponding cable which is connected to the device and the electrode, as well as the suitable buffer or calibration solutions including instructions. If you want to carry out measurements of different parameters with different electrodes, you can simply connect the electrodes to each other at the upper part and then immerse them in the measuring solution. DO220 kit version with GLP functions Measurement data storage of 1000, instead of 500 data sets Measurement and calibration data are stored GLP compliant with date and time stamp PC communication via optional USB cable RS232 printer function to print the measurement data Scope of delivery:Handheld meter DO210 or DO2209552-20D Galvanic DO probe, 2 meter cable2x AA batteryrugged measuring case manual and quick reference guideManufacturer article number: 3200779530 (DO210-K) 3200779531 (DO220-K)

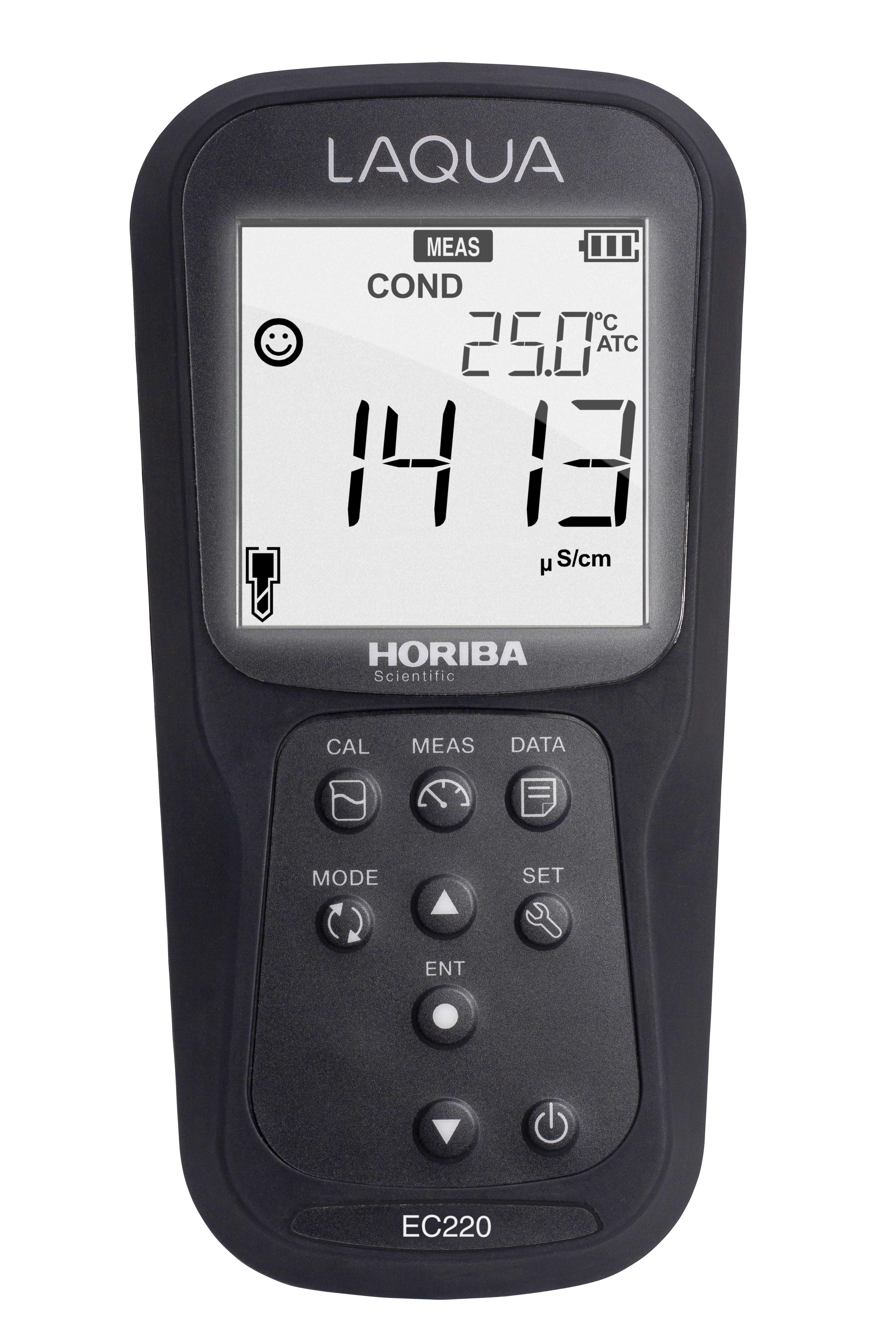

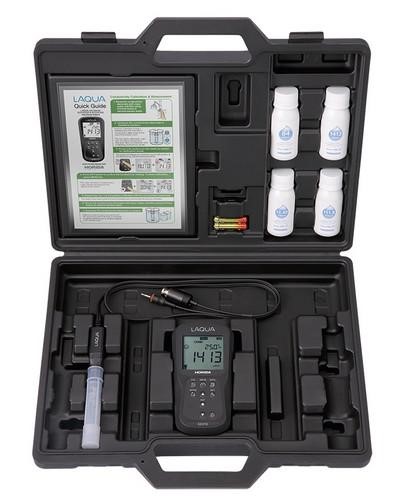

Measurement parameters:
Conductivity value, TDS measurement, resistance value, salinity and temperature
The high-quality multi-parameter hand-held meters of the LAQUA 200 series manufactured by Horiba are suitable for use in the field under any conditions and in direct daylight thanks to their monochrome LCD display with LED backlight. Another advantage of these devices is that the hand-held meters are very shock and scratch resistant due to the special rubber coating and offer a long operating time due to the AA 2500 mAh batteries used. An IP67 certification, which certifies dust-tightness and protection against temporary submersion for up to 30 minutes at a water depth of one metre, rounds off the professional overall package in addition to the ergonomic design and simple operation. In the certainty of producing high-quality devices, the manufacturer Horiba offers you a three-year guarantee on the hand-held measuring devices of the LAQUA 200 series. During the measurements, the user is supported by the display of instructions in the form of smiley symbols. This is intended to prevent operating errors that can lead to implausible measurement results. Furthermore, the measuring device has only 9 keys and no menu texts. This design decision serves, among other things, to ensure that the device can be operated as easily as possible during discontinuous use or when used by other users. The Horiba meters have an electrode wear indicator, a lock function to "save" the current measured value on the display, automatic calibration functions and a self-diagnostic function. The fold-out stand on the back of the units means that you always have your hands free to carry out your measurements easily and safely. Instruments marked as "Kit" are delivered in a reinforced measuring case for mobile use in the open air. This contains the exchangeable measuring electrode, the corresponding cable which is connected to the device and the electrode, as well as the suitable buffer or calibration solutions including instructions. If you want to carry out measurements of different parameters with different electrodes, you can simply connect the electrodes to each other at the upper part and then immerse them in the measuring solution. EC220 kit version with GLP functions Measurement data storage of 1000, instead of 500 data sets Measurement and calibration data are stored GLP compliant with date and time stamp PC communication via optional USB cable RS232 printer function to print the measurement data Scope of delivery:Hand-held meter EC210 or EC2209383-10D Ti/Pt Conductivity electrode (k=1.0)one each of 84 µS/cm, 1413 µS/cm, 12.88 mS/cm and 111.8 mS/cm conductivity calibration solution (60 ml) 2x AA batteryrugged measuring case manual and quick reference guideManufacturer article number: 3200779528 (EC210-K) 3200779529 (EC220-K)
Measurement parameters:
Conductivity value, TDS measurement, resistance value, salinity and temperature
The high-quality multi-parameter hand-held meters of the LAQUA 200 series manufactured by Horiba are suitable for use in the field under any conditions and in direct daylight thanks to their monochrome LCD display with LED backlight. Another advantage of these devices is that the hand-held meters are very shock and scratch resistant due to the special rubber coating and offer a long operating time due to the AA 2500 mAh batteries used. An IP67 certification, which certifies dust-tightness and protection against temporary submersion for up to 30 minutes at a water depth of one metre, rounds off the professional overall package in addition to the ergonomic design and simple operation. In the certainty of producing high-quality devices, the manufacturer Horiba offers you a three-year guarantee on the hand-held measuring devices of the LAQUA 200 series. During the measurements, the user is supported by the display of instructions in the form of smiley symbols. This is intended to prevent operating errors that can lead to implausible measurement results. Furthermore, the measuring device has only 9 keys and no menu texts. This design decision serves, among other things, to ensure that the device can be operated as easily as possible during discontinuous use or when used by other users. The Horiba meters have an electrode wear indicator, a lock function to "save" the current measured value on the display, automatic calibration functions and a self-diagnostic function. The fold-out stand on the back of the units means that you always have your hands free to carry out your measurements easily and safely. Instruments marked as "Kit" are delivered in a reinforced measuring case for mobile use in the open air. This contains the exchangeable measuring electrode, the corresponding cable which is connected to the device and the electrode, as well as the suitable buffer or calibration solutions including instructions. If you want to carry out measurements of different parameters with different electrodes, you can simply connect the electrodes to each other at the upper part and then immerse them in the measuring solution. EC220 kit version with GLP functions Measurement data storage of 1000, instead of 500 data sets Measurement and calibration data are stored GLP compliant with date and time stamp PC communication via optional USB cable RS232 printer function to print the measurement data Scope of delivery:Hand-held meter EC210 or EC2209383-10D Ti/Pt Conductivity electrode (k=1.0)one each of 84 µS/cm, 1413 µS/cm, 12.88 mS/cm and 111.8 mS/cm conductivity calibration solution (60 ml) 2x AA batteryrugged measuring case manual and quick reference guideManufacturer article number: 3200779528 (EC210-K) 3200779529 (EC220-K)

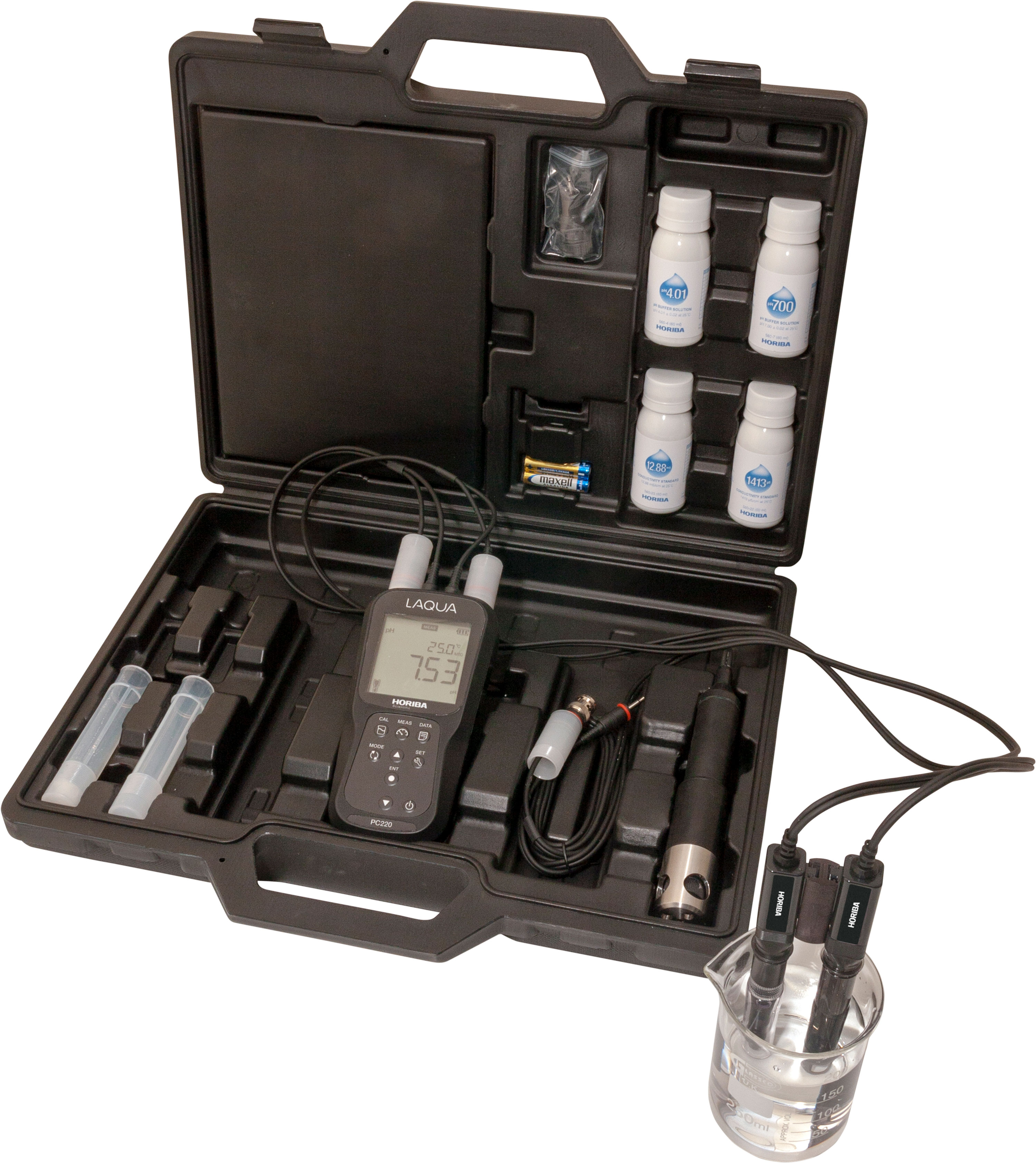

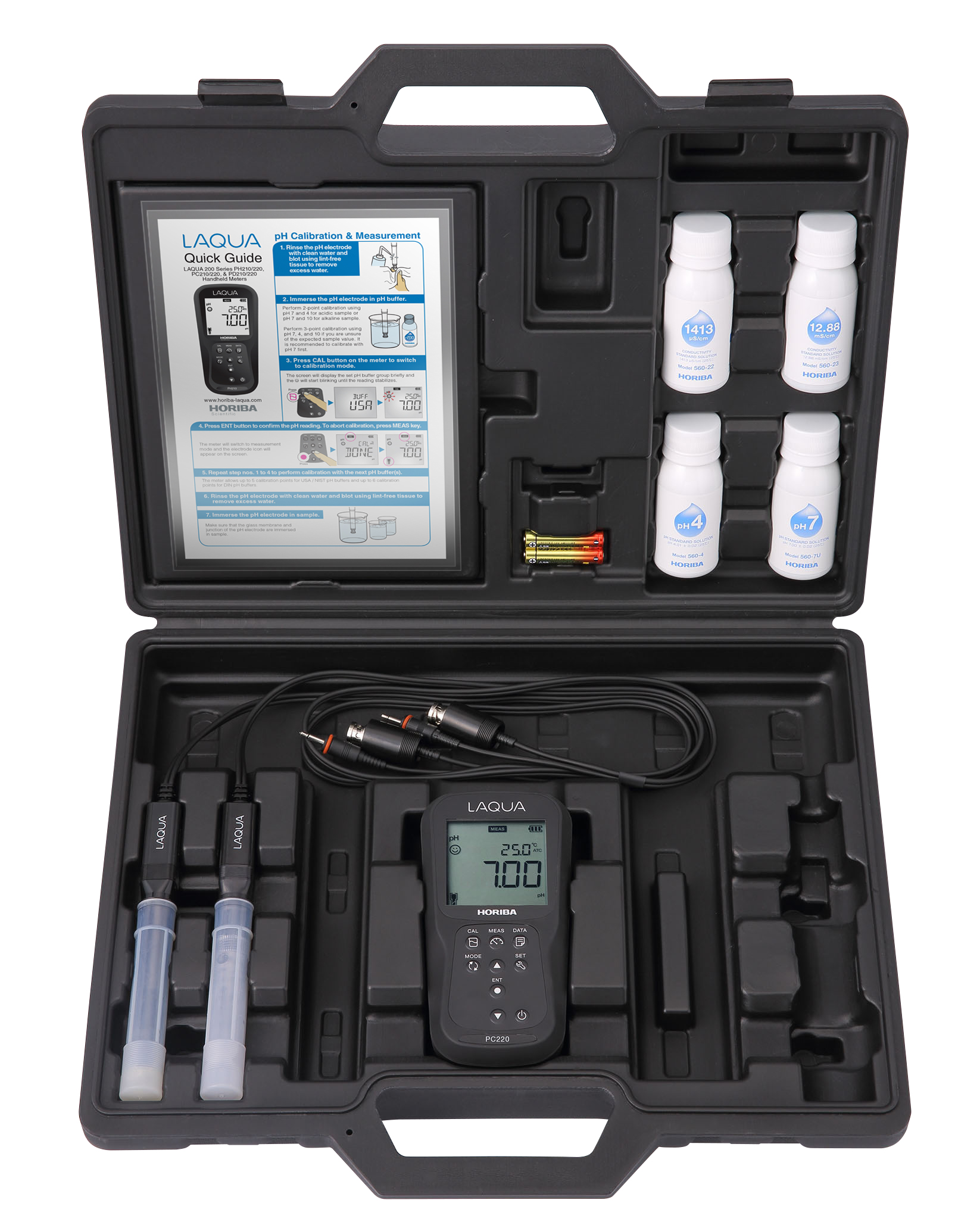

Measurement parameters:
pH value, ORP value, conductance, TDS, resistivity value, salt measurement and temperature
The high-quality multi-parameter hand-held meters of the LAQUA 200 series manufactured by Horiba are suitable for use in the field under any conditions and in direct daylight thanks to their monochrome LCD display with LED backlight. Another advantage of these devices is that the hand-held meters are very shock and scratch resistant due to the special rubber coating and offer a long operating time due to the AA 2500 mAh batteries used. An IP67 certification, which certifies dust-tightness and protection against temporary submersion for up to 30 minutes at a water depth of one metre, rounds off the professional overall package in addition to the ergonomic design and simple operation. In the certainty of producing high-quality devices, the manufacturer Horiba offers you a three-year guarantee on the hand-held measuring devices of the LAQUA 200 series. During the measurements, the user is supported by the display of instructions in the form of smiley symbols. This is intended to prevent operating errors that can lead to implausible measurement results. Furthermore, the measuring device has only 9 keys and no menu texts. This design decision serves, among other things, to ensure that the device can be operated as easily as possible during discontinuous use or when used by other users. The Horiba meters have an electrode wear indicator, a lock function to "save" the current measured value on the display, automatic calibration functions and a self-diagnostic function. The fold-out stand on the back of the units means that you always have your hands free to carry out your measurements easily and safely. Instruments marked as "Kit" are delivered in a reinforced measuring case for mobile use in the open air. This contains the exchangeable measuring electrode, the corresponding cable which is connected to the device and the electrode, as well as the suitable buffer or calibration solutions including instructions. If you want to carry out measurements of different parameters with different electrodes, you can simply connect the electrodes to each other at the upper part and then immerse them in the measuring solution. PC220 kit version with GLP functions Measurement data storage of 1000, instead of 500 data sets Measurement and calibration data are stored GLP compliant with date and time stamp PC communication via optional USB cable RS232 printer function to print the measurement data Scope of delivery:Hand-held meter PC210 or PC2209652-10D gel pH electrode9383-10D Ti/Pt Conductivity electrode (k=1.0)one each of 4.01, 7.00 pH buffer solution (60 ml) one each of 1413 µS/cm, 12.88 mS/cm conductivity calibration solution (60 ml) 2x AA batteryelectrode adapterrugged measuring case manual and quick reference guideManufacturer article number: 3200779532 (PC210-K) 3200779533 (PC220-K)
Measurement parameters:
pH value, ORP value, conductance, TDS, resistivity value, salt measurement and temperature
The high-quality multi-parameter hand-held meters of the LAQUA 200 series manufactured by Horiba are suitable for use in the field under any conditions and in direct daylight thanks to their monochrome LCD display with LED backlight. Another advantage of these devices is that the hand-held meters are very shock and scratch resistant due to the special rubber coating and offer a long operating time due to the AA 2500 mAh batteries used. An IP67 certification, which certifies dust-tightness and protection against temporary submersion for up to 30 minutes at a water depth of one metre, rounds off the professional overall package in addition to the ergonomic design and simple operation. In the certainty of producing high-quality devices, the manufacturer Horiba offers you a three-year guarantee on the hand-held measuring devices of the LAQUA 200 series. During the measurements, the user is supported by the display of instructions in the form of smiley symbols. This is intended to prevent operating errors that can lead to implausible measurement results. Furthermore, the measuring device has only 9 keys and no menu texts. This design decision serves, among other things, to ensure that the device can be operated as easily as possible during discontinuous use or when used by other users. The Horiba meters have an electrode wear indicator, a lock function to "save" the current measured value on the display, automatic calibration functions and a self-diagnostic function. The fold-out stand on the back of the units means that you always have your hands free to carry out your measurements easily and safely. Instruments marked as "Kit" are delivered in a reinforced measuring case for mobile use in the open air. This contains the exchangeable measuring electrode, the corresponding cable which is connected to the device and the electrode, as well as the suitable buffer or calibration solutions including instructions. If you want to carry out measurements of different parameters with different electrodes, you can simply connect the electrodes to each other at the upper part and then immerse them in the measuring solution. PC220 kit version with GLP functions Measurement data storage of 1000, instead of 500 data sets Measurement and calibration data are stored GLP compliant with date and time stamp PC communication via optional USB cable RS232 printer function to print the measurement data Scope of delivery:Hand-held meter PC210 or PC2209652-10D gel pH electrode9383-10D Ti/Pt Conductivity electrode (k=1.0)one each of 4.01, 7.00 pH buffer solution (60 ml) one each of 1413 µS/cm, 12.88 mS/cm conductivity calibration solution (60 ml) 2x AA batteryelectrode adapterrugged measuring case manual and quick reference guideManufacturer article number: 3200779532 (PC210-K) 3200779533 (PC220-K)

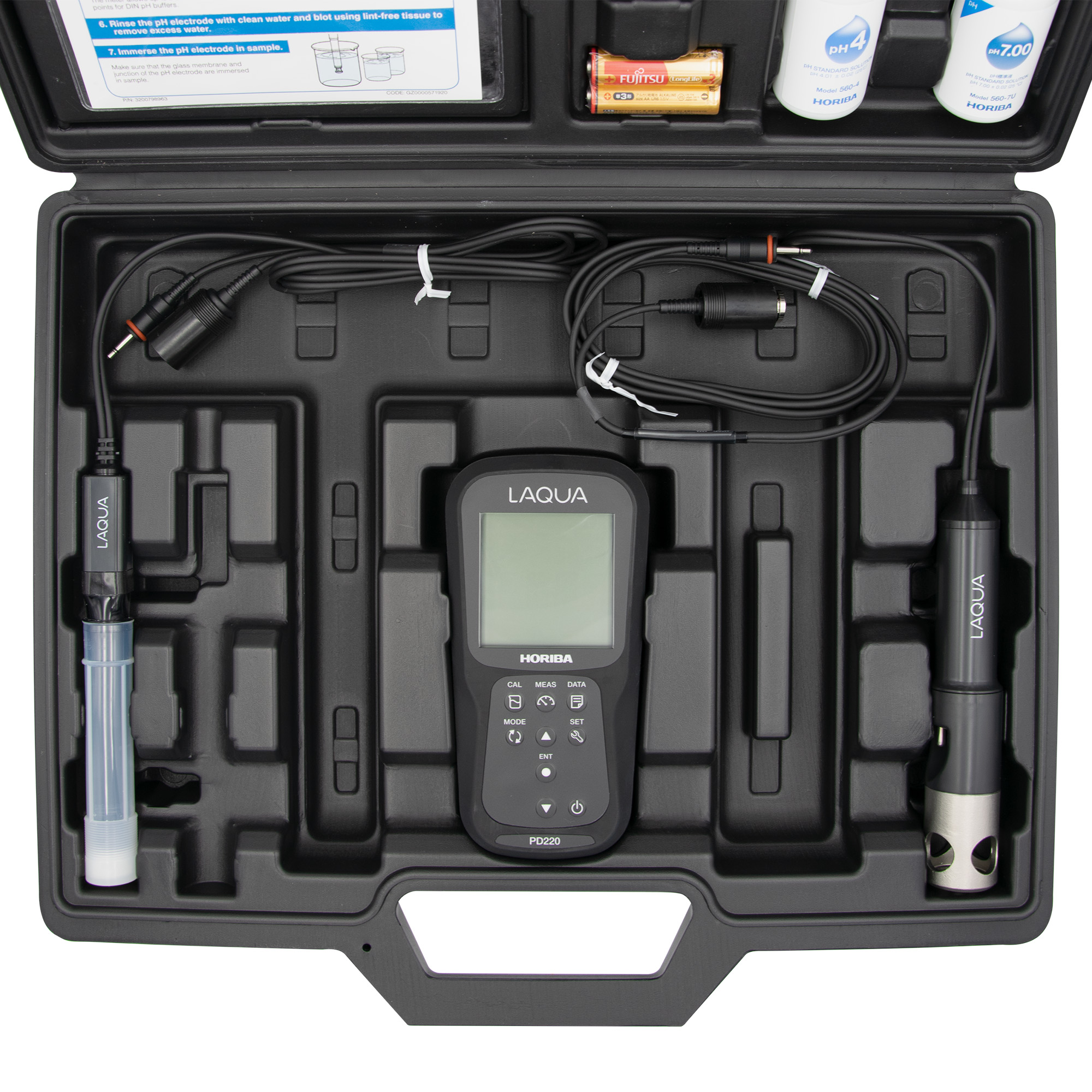

Measurement parameters:
pH value, ORP value, dissolved oxygen and temperature
The high-quality multi-parameter hand-held meters of the LAQUA 200 series manufactured by Horiba are suitable for use in the field under any conditions and in direct daylight thanks to their monochrome LCD display with LED backlight. Another advantage of these devices is that the hand-held meters are very shock and scratch resistant due to the special rubber coating and offer a long operating time due to the AA 2500 mAh batteries used. An IP67 certification, which certifies dust-tightness and protection against temporary submersion for up to 30 minutes at a water depth of one metre, rounds off the professional overall package in addition to the ergonomic design and simple operation. In the certainty of producing high-quality devices, the manufacturer Horiba offers you a three-year guarantee on the hand-held measuring devices of the LAQUA 200 series. During the measurements, the user is supported by the display of instructions in the form of smiley symbols. This is intended to prevent operating errors that can lead to implausible measurement results. Furthermore, the measuring device has only 9 keys and no menu texts. This design decision serves, among other things, to ensure that the device can be operated as easily as possible during discontinuous use or when used by other users. The Horiba meters have an electrode wear indicator, a lock function to "save" the current measured value on the display, automatic calibration functions and a self-diagnostic function. The fold-out stand on the back of the units means that you always have your hands free to carry out your measurements easily and safely. Instruments marked as "Kit" are delivered in a reinforced measuring case for mobile use in the open air. This contains the exchangeable measuring electrode, the corresponding cable which is connected to the device and the electrode, as well as the suitable buffer or calibration solutions including instructions. If you want to carry out measurements of different parameters with different electrodes, you can simply connect the electrodes to each other at the upper part and then immerse them in the measuring solution. PD220 kit version with GLP functions Measurement data storage of 1000, instead of 500 data sets Measurement and calibration data are stored GLP compliant with date and time stamp PC communication via optional USB cable RS232 printer function to print the measurement data Scope of delivery:Hand-held meter PD210 or PD2209652-20D gel pH electrode, 2 meter cable9552-20D Galvanic DO probe, 2 meter cableone each of 4.01, 7.00 and 10.01 pH buffer solution (60 ml) 2x AA batteryelectrode adapterrugged measuring case manual and quick reference guideManufacturer article number: 3200779534 (PD210-K) 3200779535 (PD220-K)
Measurement parameters:
pH value, ORP value, dissolved oxygen and temperature
The high-quality multi-parameter hand-held meters of the LAQUA 200 series manufactured by Horiba are suitable for use in the field under any conditions and in direct daylight thanks to their monochrome LCD display with LED backlight. Another advantage of these devices is that the hand-held meters are very shock and scratch resistant due to the special rubber coating and offer a long operating time due to the AA 2500 mAh batteries used. An IP67 certification, which certifies dust-tightness and protection against temporary submersion for up to 30 minutes at a water depth of one metre, rounds off the professional overall package in addition to the ergonomic design and simple operation. In the certainty of producing high-quality devices, the manufacturer Horiba offers you a three-year guarantee on the hand-held measuring devices of the LAQUA 200 series. During the measurements, the user is supported by the display of instructions in the form of smiley symbols. This is intended to prevent operating errors that can lead to implausible measurement results. Furthermore, the measuring device has only 9 keys and no menu texts. This design decision serves, among other things, to ensure that the device can be operated as easily as possible during discontinuous use or when used by other users. The Horiba meters have an electrode wear indicator, a lock function to "save" the current measured value on the display, automatic calibration functions and a self-diagnostic function. The fold-out stand on the back of the units means that you always have your hands free to carry out your measurements easily and safely. Instruments marked as "Kit" are delivered in a reinforced measuring case for mobile use in the open air. This contains the exchangeable measuring electrode, the corresponding cable which is connected to the device and the electrode, as well as the suitable buffer or calibration solutions including instructions. If you want to carry out measurements of different parameters with different electrodes, you can simply connect the electrodes to each other at the upper part and then immerse them in the measuring solution. PD220 kit version with GLP functions Measurement data storage of 1000, instead of 500 data sets Measurement and calibration data are stored GLP compliant with date and time stamp PC communication via optional USB cable RS232 printer function to print the measurement data Scope of delivery:Hand-held meter PD210 or PD2209652-20D gel pH electrode, 2 meter cable9552-20D Galvanic DO probe, 2 meter cableone each of 4.01, 7.00 and 10.01 pH buffer solution (60 ml) 2x AA batteryelectrode adapterrugged measuring case manual and quick reference guideManufacturer article number: 3200779534 (PD210-K) 3200779535 (PD220-K)

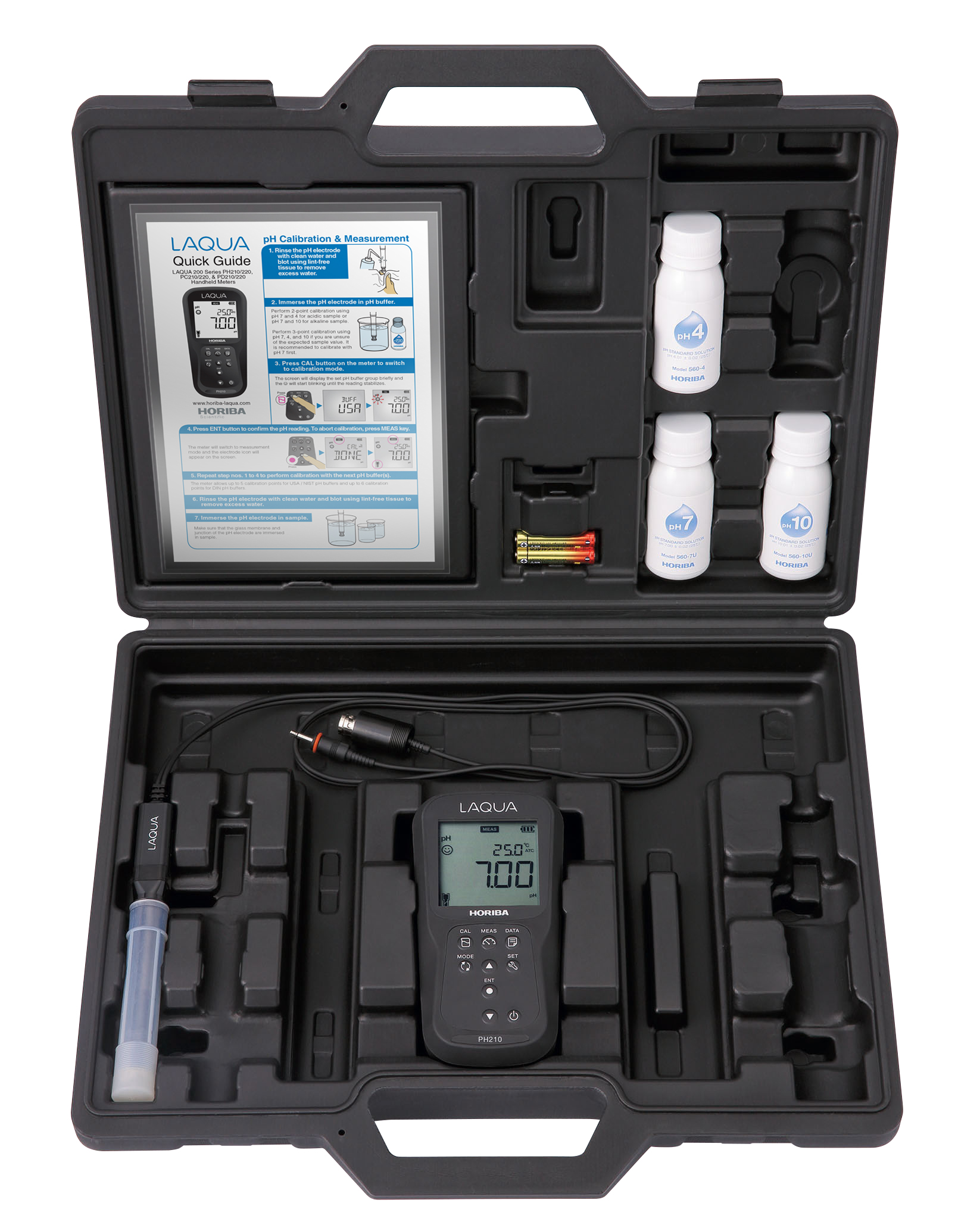

Measurement parameters:
pH value, ORP value and temperature
The high-quality multi-parameter hand-held meters of the LAQUA 200 series manufactured by Horiba are suitable for use in the field under any conditions and in direct daylight thanks to their monochrome LCD display with LED backlight. Another advantage of these devices is that the hand-held meters are very shock and scratch resistant due to the special rubber coating and offer a long operating time due to the AA 2500 mAh batteries used. An IP67 certification, which certifies dust-tightness and protection against temporary submersion for up to 30 minutes at a water depth of one metre, rounds off the professional overall package in addition to the ergonomic design and simple operation. In the certainty of producing high-quality devices, the manufacturer Horiba offers you a three-year guarantee on the hand-held measuring devices of the LAQUA 200 series. During the measurements, the user is supported by the display of instructions in the form of smiley symbols. This is intended to prevent operating errors that can lead to implausible measurement results. Furthermore, the measuring device has only 9 keys and no menu texts. This design decision serves, among other things, to ensure that the device can be operated as easily as possible during discontinuous use or when used by other users. The Horiba meters have an electrode wear indicator, a lock function to "save" the current measured value on the display, automatic calibration functions and a self-diagnostic function. The fold-out stand on the back of the units means that you always have your hands free to carry out your measurements easily and safely. Instruments marked as "Kit" are delivered in a reinforced measuring case for mobile use in the open air. This contains the exchangeable measuring electrode, the corresponding cable which is connected to the device and the electrode, as well as the suitable buffer or calibration solutions including instructions. If you want to carry out measurements of different parameters with different electrodes, you can simply connect the electrodes to each other at the upper part and then immerse them in the measuring solution. PH220 kit version with GLP functions Measurement data storage of 1000, instead of 500 data sets Measurement and calibration data are stored GLP compliant with date and time stamp PC communication via optional USB cable RS232 printer function to print the measurement data Scope of delivery:Hand-held meter PH210 or PH2209652-10D gel pH electrodeone each of 4.01, 7.00 and 10.01 pH buffer solution (60 ml) 2x AA batteryrugged measuring case manual and quick reference guideManufacturer article number: 3200779526 (PH210-K) 3200779527 (PH220-K)
Measurement parameters:
pH value, ORP value and temperature
The high-quality multi-parameter hand-held meters of the LAQUA 200 series manufactured by Horiba are suitable for use in the field under any conditions and in direct daylight thanks to their monochrome LCD display with LED backlight. Another advantage of these devices is that the hand-held meters are very shock and scratch resistant due to the special rubber coating and offer a long operating time due to the AA 2500 mAh batteries used. An IP67 certification, which certifies dust-tightness and protection against temporary submersion for up to 30 minutes at a water depth of one metre, rounds off the professional overall package in addition to the ergonomic design and simple operation. In the certainty of producing high-quality devices, the manufacturer Horiba offers you a three-year guarantee on the hand-held measuring devices of the LAQUA 200 series. During the measurements, the user is supported by the display of instructions in the form of smiley symbols. This is intended to prevent operating errors that can lead to implausible measurement results. Furthermore, the measuring device has only 9 keys and no menu texts. This design decision serves, among other things, to ensure that the device can be operated as easily as possible during discontinuous use or when used by other users. The Horiba meters have an electrode wear indicator, a lock function to "save" the current measured value on the display, automatic calibration functions and a self-diagnostic function. The fold-out stand on the back of the units means that you always have your hands free to carry out your measurements easily and safely. Instruments marked as "Kit" are delivered in a reinforced measuring case for mobile use in the open air. This contains the exchangeable measuring electrode, the corresponding cable which is connected to the device and the electrode, as well as the suitable buffer or calibration solutions including instructions. If you want to carry out measurements of different parameters with different electrodes, you can simply connect the electrodes to each other at the upper part and then immerse them in the measuring solution. PH220 kit version with GLP functions Measurement data storage of 1000, instead of 500 data sets Measurement and calibration data are stored GLP compliant with date and time stamp PC communication via optional USB cable RS232 printer function to print the measurement data Scope of delivery:Hand-held meter PH210 or PH2209652-10D gel pH electrodeone each of 4.01, 7.00 and 10.01 pH buffer solution (60 ml) 2x AA batteryrugged measuring case manual and quick reference guideManufacturer article number: 3200779526 (PH210-K) 3200779527 (PH220-K)
Thank you for your interest in our smart and customizable Horiba WQ-300 series instruments.The high-quality digital multi-parameter handheld meters with their generous color LCD display with LED backlight (7 cm x 5.2 cm) are ideally suited for use in the field under all conditions and in direct daylight.Use our configurator to freely select the suitable measuring device of the WQ-300 Horiba series (1 to 3 channels), the measuring parameters (sensor cartridges) and desired cable length (with integrated sensor receptacle + digital module) according to your wishes and requirements. At a later stage, you can always connect another available measurement parameter to the device via the corresponding sensor cable or carry it in the case as a supplement. As with other handheld measuring devices from Horiba, a major advantage of these devices is that the measuring devices are highly resistant to shock, slipping and scratching thanks to a special rubber coating. Only four standard AA 2500 mAh batteries are required for operation, and to give you more flexibility when you are on the move, the WQ-300 series devices can also be powered by a powerbank or battery pack via the integrated USB interface. The IP67 certification, which certifies dustproofness and protection against temporary submersion for up to 30 minutes at a water depth of one meter, completes the overall professional package, along with the usual ergonomic design and ease of user operation. Horiba attests to its outstanding product quality by offering a three-year warranty on the LAQUA WQ-300 series handheld meters. Other added values and features:During analyses, the user is supported by the display of operating instructions in the form of smiley icons, which is supplemented by an LED status display on the sensor. This is intended to prevent operating errors, which can lead to implausible measurement results. The design decision to install only a small number of control buttons and not to implement any nested user menus serves to ensure that the devices can be operated easily and safely even during discontinuous use as well as when used by other users. The measuring instruments have an electrode wear indicator, a measuring stability indicator on the instrument and sensor, a locking function to "save" the currently measured value on the display, free naming of the measuring point (8 characters), automatic calibration functions, integrated sensor holders, self-diagnosis function, as well as GLP functions. The fold-out stand on the back of the instruments means that you always have your hands free to carry out your measurements easily and safely. Measurement data can be conveniently transferred to your computer or cell phone via USB or WiFi.All handheld meters of the 300 series are delivered in a reinforced measuring case for mobile use in the open air. This provides space for the meter, for electrodes and cables, for up to eight 60 ml bottles of buffer solutions including an integrated buffer solution bottle holder for easier calibration. Particularly noteworthy is the automatic sensor recognition of the instrument through the use of sensor cables with integrated digital sensor recording. Information about the sensor, calibration data as well as measurement settings are stored in the sensor recording and transmitted to the measuring instrument. In addition, calibration of all connected sensors is possible at the same time, since each sensor head independently stores the measurement and calibration data and transmits it to the WQ300 series measuring device.Optionally, there is the possibility to connect and use analog sensors via the Horiba BNC sensor adapter with the device, please contact us for this.Languages:GermanEnglishFrenchSpanishPortugueseChineseScope of delivery:WQ-300 series handheld meter in a carrying casethe digital electrode you have chosen, if applicable, and the corresponding sensor-specific cable with integrated digital sensor receptaclemanualManufacturer article number single measuring device WQ-310-K 1 channel: 3200832605
Note: Chloride sensor, if selected, is supplied without chloride ion strength regulator and chloride electrode filling solution. This must be procured by the customer. Without the filling solution the sensor can´t be used.
Thank you for your interest in our smart and customizable Horiba WQ-300 series instruments.The high-quality digital multi-parameter handheld meters with their generous color LCD display with LED backlight (7 cm x 5.2 cm) are ideally suited for use in the field under all conditions and in direct daylight.Use our configurator to freely select the suitable measuring device of the WQ-300 Horiba series (1 to 3 channels), the measuring parameters (sensor cartridges) and desired cable length (with integrated sensor receptacle + digital module) according to your wishes and requirements. At a later stage, you can always connect another available measurement parameter to the device via the corresponding sensor cable or carry it in the case as a supplement. As with other handheld measuring devices from Horiba, a major advantage of these devices is that the measuring devices are highly resistant to shock, slipping and scratching thanks to a special rubber coating. Only four standard AA 2500 mAh batteries are required for operation, and to give you more flexibility when you are on the move, the WQ-300 series devices can also be powered by a powerbank or battery pack via the integrated USB interface. The IP67 certification, which certifies dustproofness and protection against temporary submersion for up to 30 minutes at a water depth of one meter, completes the overall professional package, along with the usual ergonomic design and ease of user operation. Horiba attests to its outstanding product quality by offering a three-year warranty on the LAQUA WQ-300 series handheld meters. Other added values and features:During analyses, the user is supported by the display of operating instructions in the form of smiley icons, which is supplemented by an LED status display on the sensor. This is intended to prevent operating errors, which can lead to implausible measurement results. The design decision to install only a small number of control buttons and not to implement any nested user menus serves to ensure that the devices can be operated easily and safely even during discontinuous use as well as when used by other users. The measuring instruments have an electrode wear indicator, a measuring stability indicator on the instrument and sensor, a locking function to "save" the currently measured value on the display, free naming of the measuring point (8 characters), automatic calibration functions, integrated sensor holders, self-diagnosis function, as well as GLP functions. The fold-out stand on the back of the instruments means that you always have your hands free to carry out your measurements easily and safely. Measurement data can be conveniently transferred to your computer or cell phone via USB or WiFi.All handheld meters of the 300 series are delivered in a reinforced measuring case for mobile use in the open air. This provides space for the meter, for electrodes and cables, for up to eight 60 ml bottles of buffer solutions including an integrated buffer solution bottle holder for easier calibration. Particularly noteworthy is the automatic sensor recognition of the instrument through the use of sensor cables with integrated digital sensor recording. Information about the sensor, calibration data as well as measurement settings are stored in the sensor recording and transmitted to the measuring instrument. In addition, calibration of all connected sensors is possible at the same time, since each sensor head independently stores the measurement and calibration data and transmits it to the WQ300 series measuring device.Optionally, there is the possibility to connect and use analog sensors via the Horiba BNC sensor adapter with the device, please contact us for this.Languages:GermanEnglishFrenchSpanishPortugueseChineseScope of delivery:WQ-300 series handheld meter in a carrying casethe digital electrode you have chosen, if applicable, and the corresponding sensor-specific cable with integrated digital sensor receptaclemanualManufacturer article number single measuring device WQ-320-K 2 channel: 3200832606
Note: Chloride sensor, if selected, is supplied without chloride ion strength regulator and chloride electrode filling solution. This must be procured by the customer. Without the filling solution the sensor can´t be used.
Thank you for your interest in our smart and customizable Horiba WQ-300 series instruments.The high-quality digital multi-parameter handheld meters with their generous color LCD display with LED backlight (7 cm x 5.2 cm) are ideally suited for use in the field under all conditions and in direct daylight.Use our configurator to freely select the suitable measuring device of the WQ-300 Horiba series (1 to 3 channels), the measuring parameters (sensor cartridges) and desired cable length (with integrated sensor receptacle + digital module) according to your wishes and requirements. At a later stage, you can always connect another available measurement parameter to the device via the corresponding sensor cable or carry it in the case as a supplement. As with other handheld measuring devices from Horiba, a major advantage of these devices is that the measuring devices are highly resistant to shock, slipping and scratching thanks to a special rubber coating. Only four standard AA 2500 mAh batteries are required for operation, and to give you more flexibility when you are on the move, the WQ-300 series devices can also be powered by a powerbank or battery pack via the integrated USB interface. The IP67 certification, which certifies dustproofness and protection against temporary submersion for up to 30 minutes at a water depth of one meter, completes the overall professional package, along with the usual ergonomic design and ease of user operation. Horiba attests to its outstanding product quality by offering a three-year warranty on the LAQUA WQ-300 series handheld meters. Other added values and features:During analyses, the user is supported by the display of operating instructions in the form of smiley icons, which is supplemented by an LED status display on the sensor. This is intended to prevent operating errors, which can lead to implausible measurement results. The design decision to install only a small number of control buttons and not to implement any nested user menus serves to ensure that the devices can be operated easily and safely even during discontinuous use as well as when used by other users. The measuring instruments have an electrode wear indicator, a measuring stability indicator on the instrument and sensor, a locking function to "save" the currently measured value on the display, free naming of the measuring point (8 characters), automatic calibration functions, integrated sensor holders, self-diagnosis function, as well as GLP functions. The fold-out stand on the back of the instruments means that you always have your hands free to carry out your measurements easily and safely. Measurement data can be conveniently transferred to your computer or cell phone via USB or WiFi.All handheld meters of the 300 series are delivered in a reinforced measuring case for mobile use in the open air. This provides space for the meter, for electrodes and cables, for up to eight 60 ml bottles of buffer solutions including an integrated buffer solution bottle holder for easier calibration. Particularly noteworthy is the automatic sensor recognition of the instrument through the use of sensor cables with integrated digital sensor recording. Information about the sensor, calibration data as well as measurement settings are stored in the sensor recording and transmitted to the measuring instrument. In addition, calibration of all connected sensors is possible at the same time, since each sensor head independently stores the measurement and calibration data and transmits it to the WQ300 series measuring device.Optionally, there is the possibility to connect and use analog sensors via the Horiba BNC sensor adapter with the device, please contact us for this.Languages:GermanEnglishFrenchSpanishPortugueseChineseScope of delivery:WQ-300 series handheld meter in a carrying casethe digital electrode you have chosen, if applicable, and the corresponding sensor-specific cable with integrated digital sensor receptaclemanualManufacturer article number single measuring device WQ-330-K 3 channel: 3200832607
Note: Chloride sensor, if selected, is supplied without chloride ion strength regulator and chloride electrode filling solution. This must be procured by the customer. Without the filling solution the sensor can´t be used.
Measuring range:
4 to 9900 ppm (mg/L) - (0.1 to 250 mmol/L) | 0 to 50.0 ºC
|
Measurement parameters:
Calcium Ion | Temperature
Manufacturer Part No. 3200689161
LAQUAtwin CA-11 : The
world's first pocket-sized calcium ion analyser.
Your mobile laboratory -
for use on site: Ideal for water quality
testing in agriculture, aquariums, food and many other applications.
HORIBA's unique compact meter
integrates electrode, display and sample container to enable simple, effective
on-site testing by direct measurement with a single drop.
Minimum sample volume: 0.3 ml (0.05 ml with sampling sheet B) Up to 2 calibration
points Automatic standard
detection: 150 & 2000ppm calcium
(standard) Adjustable high and low
calibration values Multiplication
compensation: 0.01 to 9.90 Temperature and mV
display Temperature calibration: 5 to 40.0 ºC Auto-hold / auto-stable
measurement Automatic switch-off: 30 min. Low battery indicator IP67 rating dust and
waterproof Replaceable sensor 400 hours battery life: continuous operation without backlight Material: ABS epoxy Display: customised (monochrome) digital LCD with backlight Operating conditions: 5 to 40 ºC, 85% or less relative humidity Warranty: 2 years - meter, 6 months - sensor Packed in a practical
carrying case
Supplied with 150 & 2000ppm
calcium standards, 5 x sampling sheets B, 2 x CR2032 batteries, dropper,
instructions and quick reference guide
Measuring range:
0 to 199 μS/cm | 200 to 1999 μS/cm | 2.00 to 19.99 mS/cm
|
Measurement parameters:
electrical conductivity
Manufacturer Part No. 3999960125
LAQUAtwin EC-11: The
world's first pocket-sized conductivity meter
Your mobile laboratory -
for use on site: Ideal for water quality
tests in aquariums, food, beekeeping (honey) and many other applications
HORIBA's unique compact meter
integrates electrode, display and sample container to enable simple, effective
on-site testing by direct measurement with a single drop.
Minimum sample volume: 0.12 ml Up to 2 calibration
points Automatic range Automatic calibration Automatic standard
detection: 1413µS/cm & 12.88mS/cm Automatic temperature
compensation: 2%/ºC fixed Automatic stable /
automatic hold measurement Automatic switch off: 30 min. Low battery indicator IP67 rating dust and
waterproof Replaceable sensor 400 hours battery life:
continuous operation without backlight Materials: ABS epoxy housing and titanium coating with platinum black
sensor Display: customised (monochrome) LCD with backlight Operating conditions: 5 to 40°C, 85% or less relative humidity Warranty: 2 years - meter, 6 months - sensor Packed in a practical
carrying case
Supplied with 1413µS/cm &
12.88mScm conductivity standards (14ml each), conditioning solution (4ml), 2 x
CR2032 batteries, drops, instructions and quick reference guide
Measuring range:
0 to 199 μS/cm | 200 to 1999 μS/cm | 2.00 to 19.99 mS/cm | 20.0 to 199.9 mS/cm | 0 to 50.0 ºC
|
Measurement parameters:
electrical conductivity | temperature
Manufacturer Part No. 3999960126
LAQUAtwin EC-22: The
world's first pocket-sized conductivity meter
Your mobile laboratory -
for use on site: Ideal for water quality
tests in aquariums, food and many other applications.
HORIBA's unique compact meter
integrates electrode, display and sample container to enable simple, effective
on-site testing by direct measurement with a single drop.
Minimum sample volume: 0.12 ml Up to 3 calibration
points Conductivity and
temperature display Automatic range Automatic calibration Automatic standard
detection: 1413µS/cm, 12.88mS/cm, 111.8mS/cm Automatic temperature
compensation: 2%/ºC fixed Temperature calibration: 5 to 40.0 ºC Automatically stable /
automatically held measurement Automatic switch-off: 30 min. Low battery indicator IP67 rating dust and
waterproof Replaceable sensor 400 hours battery life: continuous operation without backlight Materials: ABS epoxy housing and titanium coating with platinum black
sensor Display: customised (monochrome) LCD with backlight Operating conditions: 5 to 40°C, 85% or less relative humidity Warranty: 2 years - meter, 6 months - sensor Packed in a practical
carrying case
Supplied with 1413µS/cm &
12.88mS/cm conductivity standards (14ml each), conditioning solution (4ml), 2 x
CR2032 batteries, dropper, instructions and quick reference guide
Measuring range:
0 to 199 μS/cm | 200 to 1999 μS/cm | 2.00 to 19.99 mS/cm | 20.0 to 199.9 mS/cm | TDS 0.0 to 99.9 ppm, 100 to 999 ppm, 1000 to 9990 ppm | 0 to 50.0 ºC
|
Measurement parameters:
electrical conductivity | TDS value | temperature
Manufacturer Part No. 3999960127
LAQUAtwin EC-33: The
world's first pocket-sized conductivity meter
Your mobile laboratory -
for use on site: Ideal for water quality
tests in aquariums, food and many other applications.
HORIBA's unique compact meter
integrates electrode, display and sample container to enable simple, effective
on-site testing by direct measurement with a single drop.
Minimum sample volume: 0.12 ml Up to 3 calibration
points Conductivity, TDS and
temperature display Automatic range Automatic calibration Automatic standard
detection: 1413µS/cm, 12.88mS/cm, 111.8mS/cm Automatic temperature
compensation: 2%/ºC fixed Temperature calibration: 5 to 40.0 ºC 4 curves for the total
dissolved solids content: TDS factor 0.4 to 1.0,
EN 27888, 442, NaCl Automatically stable /
automatically held measurement Automatic switch-off: 30 min. Low battery indicator IP67 rating dust and
waterproof Replaceable sensor 400 hours battery life: continuous operation without backlight Materials: ABS epoxy housing and titanium coating with platinum black
sensor Display: customised (monochrome) LCD with backlight Operating conditions: 5 to 40°C, 85% or less relative humidity Warranty: 2 years - meter, 6 months - sensor Packed in a practical
carrying case
Supplied with 1413µS/cm &
12.88mS/cm conductivity standards (14ml each), conditioning solution (4ml), 2 x
CR2032 batteries, drops, instructions and quick reference guide
Measuring range:
0.1 to 990 ppm (mg/L) | 0 to 50.0 ºC
|
Measurement parameters:
Fluoride Ion | Temperature
Manufacturer Part No. 3200934412
LAQUAtwin F-11: The
world's first pocket-sized fluoride ion analyser
Your mobile laboratory -
for on-site use
HORIBA's unique compact meter
integrates electrode, display and sample container to enable simple, effective
on-site testing by direct measurement with a single drop.
Revolutionary fluoride
ion analysis: Be part of history with
the world's first and only pocket-sized fluoride ion analyser.
Measurement capabilities
for microsamples: The interchangeable
sensor with a lanthanum trifluoride crystal enables measurements in samples as
small as 0.3 ml (or 0.1 ml with a sampling sheet).
Comprehensive
measurement range: With a measurement
range of 0.1 to 990 ppm or mg/L, the meter provides accurate fluoride ion
readings.
Unrivalled accuracy: With an accuracy of 2 % of the actual value, the meter
ensures reliable results for your analyses.
Convenient two-point
auto-calibration: Achieve accuracy with
two-point calibration as the meter automatically recognises and calibrates the
1 ppm and 10 ppm fluoride ion standard solutions included in the kit. You can
adjust the calibration with other standard solutions that differ in concentration
by a factor of ten.
Multiplying compensation
function: Taking into account the sample
dilution in the measured value, the meter has a multiplying compensation
function to calculate the correct concentration.
Auto Stable & Auto
Hold measurement modes: To assist users in
recording stable readings, the meter displays a smiley face and can freeze the
reading.
Temperature Calibration: The meter displays temperatures up to 50.0°C and allows for
temperature correction through its calibration function.
IP67 rating: Water and dustproof meter with digital LCD display and
backlighting
Complete package for
fluoride ion testing on the go: Each F-11 meter comes
with 1ppm and 10ppm fluoride ion standard solutions (14ml each), TISAB solution
(14ml), 5ml plastic cup, batteries, syringe and 5 sampling sheets.
Measuring range:
NO3-: 6 to 9900 ppm (mg/L) - (0.1 to 160 mmol/L) | NO3-N: 1.4 to 2200 ppm (mg/L)| 0 to 50.0 ºC
|
Measurement parameters:
Nitrate Ion | Temperature
The LAQUAtwin Nitrate Ion Handheld Tester (NO3-11C) included in the analysis kit is pre-set by the factory to the relevant calibration points 300PPM and 5000PPM for plant sap analysis.
Manufacturer Part No. 3200689163
| B-741
Measuring range:
NO3-: 6 to 9900 ppm (mg/L) - (0.1 to 160 mmol/L) | NO3-N: 1.4 to 2200 ppm (mg/L)| 0 to 50.0 ºC
|
Measurement parameters:
Nitrate Ion | Temperature
The LAQUAtwin Nitrate Ion Handheld Tester (NO3-11C) included in the analysis kit is pre-set by the factory to the relevant calibration points 30PPM and 300PPM for soil analysis.
Manufacturer Part No. 3200689164 | B-742
Measuring range:
NO3-: 6 to 9900 ppm (mg/L) - (0.1 to 160 mmol/L) | NO3-N: 1.4 to 2200 ppm (mg/L)| 0 to 50.0 ºC
|
Measurement parameters:
Nitrate Ion | Temperature
Manufacturer Part No. 3200689162

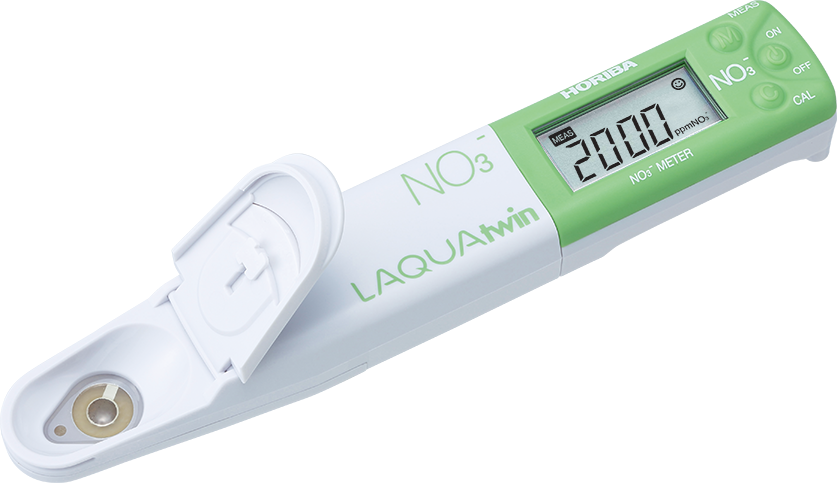

LAQUAtwin NO3-11: The
world's first pocket-sized nitrate ion analyser
Your mobile laboratory -
for use on site: Ideal for water quality
tests in agriculture, plant breeding and many other applications
HORIBA's unique compact meter
integrates electrode, display and sample container to enable simple, effective
on-site testing by direct measurement with a single drop.
Minimum sample volume: 0.3 ml (0.05 ml with sampling sheet B) Up to 2 calibration
points Automatic standard
detection Adjustable high and low
calibration values Multiplication
compensation: 0.01 to 9.90 Temperature and mV
display Temperature calibration: 5 to 40.0 ºC Auto-hold / auto-stable
measurement Automatic switch-off: 30 min. Low battery indicator IP67 rating dust and
waterproof Replaceable sensor 400 hours battery life: continuous operation without backlight Material: ABS epoxy Display: customised (monochrome) digital LCD with backlight Operating conditions: 5 to 40 ºC, 85% or less relative humidity Warranty: 2 years - meter, 6 months - sensor Packed in a practical
carrying case
Supplied with accessories (see
specifications for more details)
Measuring range:
0.0 to 14.0 pH
|
Measurement parameters:
pH
Manufacturer Part No. 3999960122
LAQUAtwin PH-11: The
world's first pocket-sized PH meter
Your mobile laboratory -
for use on site: Ideal for water quality testing in aquatic, drinking and
process water and many other applications
HORIBA's unique compact
meter integrates electrode, display and sample container to enable simple,
effective on-site testing by direct measurement with a single drop.
Minimum sample volume: 0.1 ml (0.05 ml
with sampling sheet B) Up to 2 calibration points pH and mV display Automatic calibration Automatic buffer recognition: USA &
NIST pH buffers Automatic temperature compensation Automatic stable / automatic hold
measurement Automatic switch-off: 30 min. Low battery indicator IP67 rating dust and waterproof Replaceable sensor 400 hours battery life: continuous
operation without backlight Material: ABS epoxy Display: customised
(monochrome) LCD with backlight Operating conditions: 5 to 40°C, 85% or
less relative humidity Warranty: 2 years - meter; 6 months -
sensor Packed in a practical carrying case
Supplied with pH 4.01
& 7.00 buffers (14ml each), 2 x CR2032 batteries, drops, instructions and
short manual
Measuring range:
0.00 to 14.00 pH
|
Measurement parameters:
pH
Manufacturer Part No. 3999960123
LAQUAtwin PH-22: The
world's first pocket-sized PH meter
Your mobile laboratory -
for use on site: Ideal for water quality
testing in aquatic, drinking and process water and many other applications.
HORIBA's unique compact meter
integrates electrode, display and sample container to enable simple, effective
on-site testing by direct measurement with a single drop.
Minimum sample volume: 0.1 ml (0.05 ml with sampling sheet B) Up to 3 calibration
points pH and mV display Automatic calibration Automatic buffer
recognition: USA & NIST pH
buffers Automatic temperature
compensation Automatic stable /
automatic hold measurement Automatic switch-off: 30 min. Low battery indicator IP67 rating dust and
waterproof Replaceable sensor 400 hours battery life: continuous operation without backlight Material: ABS epoxy Display: customised (monochrome) LCD with backlight Operating conditions: 5 to 40°C, 85% or less relative humidity Warranty: 2 years - meter, 6 months - sensor Packed in a practical
carrying case
Supplied with pH 4.01 & 7.00
buffers (14ml each), 2 x CR2032 batteries, drops, instructions and short manual
