Water Monitoring in Practice: Why Water Quality Must Be Measurable

Water Monitoring with the HORIBA U-50 – Reliably Measuring and Documenting Water Quality

The quality of our natural water bodies is a sensitive resource. Clean water is the foundation for healthy ecosystems, a safe drinking water supply and the sustainable use of water bodies. However, the water quality of natural water bodies is subject to constant natural changes due to environmental influences. Precipitation, nutrient inputs, dry spells or human activity can cause significant changes within a short space of time.

Whether it be rivers, lakes, ponds or groundwater – regular monitoring of water quality is now essential for local authorities, environmental agencies, water boards, research institutions and water body operators. As your experienced partner in water analysis, we at HeylNeomeris demonstrate in this article what is important in water monitoring, which parameters are crucial, and why the HORIBA U-50 series of portable multi-parameter analysers have proven their worth in practice.

With modern multi-parameter analysers such as the HORIBA U-50 series, all key water parameters can be measured directly on site – quickly, accurately and without the need for time-consuming laboratory analyses. This enables changes to be detected at an early stage, legal requirements to be met and well-informed decisions on water protection to be made.

The Importance of Water Quality in Natural Water Bodies

Water is a habitat, a resource and a recreational area all at once. Water quality is far more than a purely ecological issue. It directly influences the health of fish stocks, the stability of ecosystems, the safety of drinking water supply, and the recreational use of water bodies by anglers, bathers and those seeking relaxation.

A stable biological balance ensures that water bodies can purify themselves and that biodiversity is preserved. If this balance is disrupted – for example, by over-fertilisation (eutrophication), periods of heat or heavy rain, or the introduction of pollutants – there is a risk of massive algal growth, fish deaths and the loss of valuable habitats. Anyone wishing to identify such developments at an early stage cannot do without regular, reliable water analysis.

Precisely because water quality can change drastically in the short term and at a local level, a one-off laboratory analysis alone is often insufficient. What is needed are continuous monitoring solutions that provide robust data directly on site, quickly and reliably.

Regular water analyses act as the early warning system for water protection. They make it possible to detect negative changes before irreversible damage occurs and to initiate well-founded measures for remediation or maintenance.

Which Bodies of Water Should Be Monitored Using Handheld Measuring Devices?

Professional water monitoring is useful in many areas. Depending on the area of application, the focus is on different types of water bodies, each of which has its own specific monitoring requirements:

Streams, rivers and ditches are subject to constant changes due to inflows and outflows, discharges or agricultural pollution, and seasonal fluctuations. Mobile measurements taken at several points along the watercourse provide a realistic picture of the water body’s condition.

Lakes, ponds and pools are sensitive to nutrient inputs and temperature stratification. Regular measurements are important here, for example, to detect oxygen deficits in deeper water layers at an early stage.

In the case of bathing lakes and recreational waters, the focus is not only on environmental protection but also on visitor safety. Oxygen levels, turbidity and temperature can change very rapidly, particularly in summer.

The quality of groundwater is crucial for drinking water supply. Measurements at abstraction points and wells provide information about potential contamination and changes in the subsurface.

For fish farms and pond facilities, water quality has a direct impact on the growth, health and survival rates of the fish. Even short-term fluctuations in oxygen levels can cause significant economic damage. Operators of pond facilities, angling clubs and fish farmers therefore need reliable data to protect fish stocks and ensure water quality.

At sewage treatment works, drainage systems and discharge points, continuous monitoring is essential to comply with statutory limits and prevent environmental pollution. Here, too, numerous water parameters must be regularly monitored and documented.

Which Water Parameters Are Particularly Important for Water Body Assessment?

A meaningful water body assessment is always based on several parameters simultaneously. Only the interplay of various parameters enables a well-founded assessment of the ecological status. The most important parameters are:

The pH value provides information on the acidic or alkaline nature of the water and directly influences the living conditions for fish and other aquatic organisms.

The oxygen content is one of the most important indicators of the biological health of a body of water. Values that are too low can lead to fish mortality and a loss of biodiversity.

These parameters provide information on the total content of dissolved salts and minerals in the water and may indicate sources of pollution or discharges.

Turbidity indicates the proportion of suspended solids in the water and is an important indicator of erosion, sediment input or discharges.

Water temperature influences almost all chemical and biological processes in the water body and is closely linked to the oxygen content.

The oxidation-reduction potential provides insight into the oxidation and reduction processes in water and offers important additional information on water chemistry.

Depending on the model, the HORIBA U-50 series also measures:

• Salinity
• TDS (Total Dissolved Solids)
• Density of seawater
• Water depth
• GPS position (depending on the model)

The simultaneous recording of all measured values provides a comprehensive picture of the current water quality.

Why Mobile Multi-Parameter Analysers Are Useful

In the past, many water parameters had to be determined using various individual measuring instruments or in the laboratory. Traditional laboratory analyses provide precise results, but involve delays, sample transport, greater effort and higher costs. For day-to-day water monitoring, mobile multi-parameter analysers have therefore become indispensable for high-quality, meaningful and rapid analysis.

The advantages are clear:

• Immediate results on site – no need to wait for laboratory results.
• Multiple parameters in a single step – instead of using several individual devices. All relevant water parameters are recorded simultaneously within a few seconds, ensuring that all measured values are taken at exactly the same point in time.
• Significant time savings – a single measuring device replaces numerous individual devices, reducing both the workload and potential measurement errors.
• Efficient fieldwork – less effort for environmental agencies, associations and operators.
• Data-driven decisions – rapid response to exceedances of limit values or anomalies.
• Documentable and traceable measurement series – for reports, studies and regulatory compliance.

For local authorities, water associations, research institutions and water body operators in particular, this means significant time and cost savings whilst delivering higher data quality.

HORIBA U-50 – The Professional Solution for Water Monitoring

The HORIBA U-50 series has been specially developed for demanding field measurements and is one of the world's leading multi-parameter measurement systems for environmental monitoring, research and water management.

Advantages of the HORIBA U-50 Handheld Meter

Measure up to 11 Water Parameters Simultaneously

The U-50 series combines several sensors in a single robust probe, enabling the simultaneous measurement of up to 11 water parameters. This means that all relevant measurements are recorded in a single measurement process.

Design and Operation

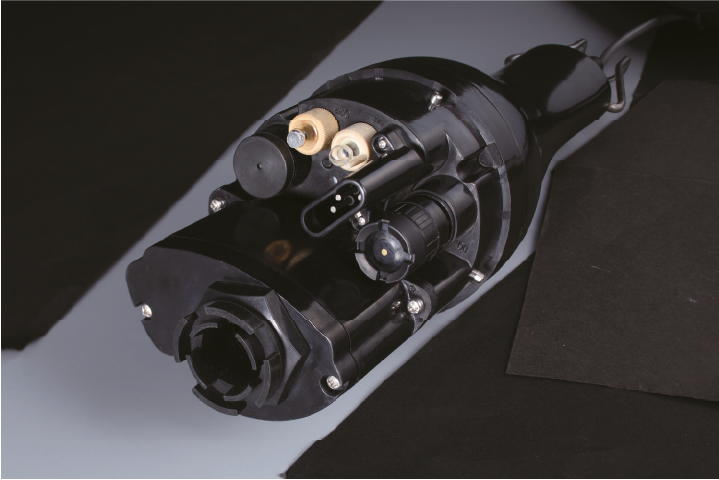

The U-50 probe combines sensors for pH, redox potential, dissolved oxygen, conductivity, salinity, TDS, temperature, turbidity and, depending on the model, water depth and GPS position. All sensors can be replaced individually, which significantly reduces operating costs.

Designed for Tough Field Use

The robust, shock-resistant housing and waterproof construction (protection class JIS 8 for the probe) make the U-50 a reliable companion for outdoor use, whether at ditches, jetties, wetlands or sampling points. The large, backlit LCD display ensures good readability even in difficult lighting conditions, and one-handed operation makes field work considerably easier.

Efficient Data Management

Up to 10,000 data records can be transferred to a PC via the integrated USB interface. An auto-hold function automatically freezes the measured values, making them easier to read and document. Diagnostic functions also provide early warning of the need to replace sensors or of any faults.

Model Variants for Different Requirements

The U-50 series comprises several models—from the U-51 to the U-54G—which differ in terms of turbidity measurement principle, water depth measurement and GPS functionality. This means the right equipment can be selected for every application, from simple field monitoring to scientific water body mapping. Models with GPS functionality (U-52G, U-53G and U-54G) are particularly suitable for environmental surveys of lakes, rivers and coastal waters, where the precise positioning of measurement points is important.

Practical Examples of the HORIBA U-50 in Use

The HORIBA U-50 has a wide range of applications:

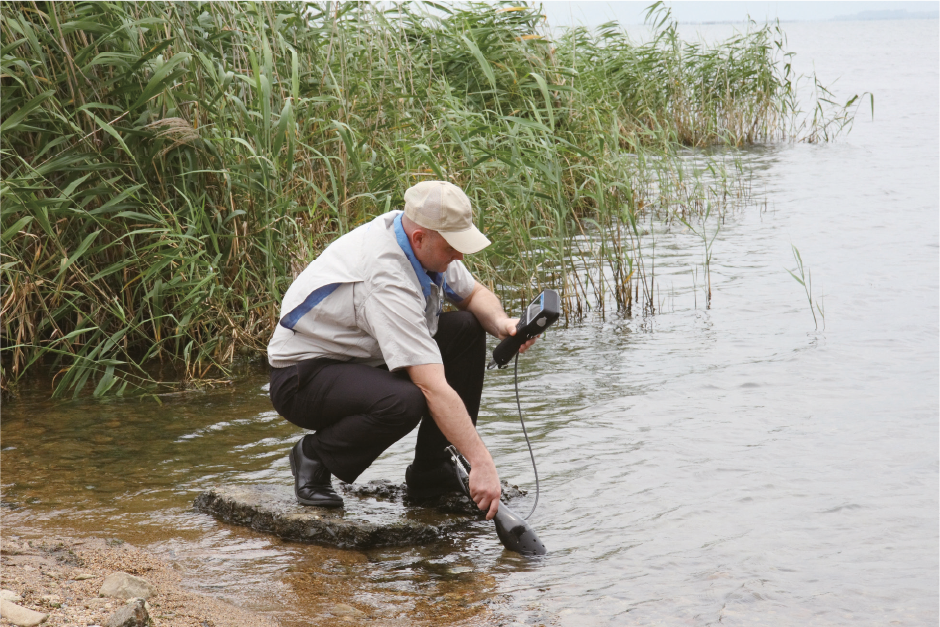

• Measurements in ditches and on footbridges: The probe can be dragged through the water whilst walking past, with readings continuously recorded and stored.
• Groundwater sampling: At wells or sampling points, the probe can be lowered into the water and up to 10,000 measurement series can be stored in the device before the data is analysed on a PC.
• Surveys in wetlands: Thanks to its waterproof design, you can work without worry even in the event of splashing water or accidental contact with water.
• Surface waters and coastal areas: With the optional 30-metre cable, measurements can be taken at various water depths, making the instrument ideal for surveys of lakes, rivers and coastal areas.

These applications demonstrate that, whether for a fishing club, a fisheries business, an environmental agency or a research institution, the HORIBA U-50 can be flexibly adapted to the specific task at hand.

Investment Made Easy: Hire Purchase and Financing

Purchasing a professional multi-parameter measuring device is an investment in reliable data and efficient work processes. To ensure this investment is not thwarted by limited budgets, hire purchase and financing models are available alongside the traditional outright purchase. This allows the cost of the purchase to be spread out over a fixed period in a predictable manner without placing a sudden strain on cash flow. This is an attractive option, particularly for local authorities, associations and institutions with fixed annual budgets.

If you are interested in a hire purchase or financing model, please feel free to contact our sales assistants for personalised advice.

Why HeylNeomeris?

With many years' experience in water analysis, HeylNeomeris supports customers from industry, environmental technology, research and public administration in selecting the right measurement technology.

Our range of services includes:

• Personalised expert advice
• Assistance with equipment selection
• Service
• Maintenance and spare parts
• Financing and hire purchase
• Long-term support

This means you not only receive a high-quality measuring instrument, but also a reliable, comprehensive solution for professional water monitoring.

Conclusion: Reliable Water Monitoring Starts with the Right Measurement Technology

Regular and reliable water analyses form the basis for protecting water bodies, meeting legal requirements and making informed decisions. The HORIBA U-50 series offers a portable, robust and versatile measuring instrument that records up to 11 parameters simultaneously and is suitable for professional field use.

Would you like to learn more about the HORIBA U-50, receive a customized quotation, or get advice on hire purchase and financing options?

Our sales team will be happy to assist you personally and answer any questions you may have about the right measuring instrument as well as our financing and hire purchase options.
