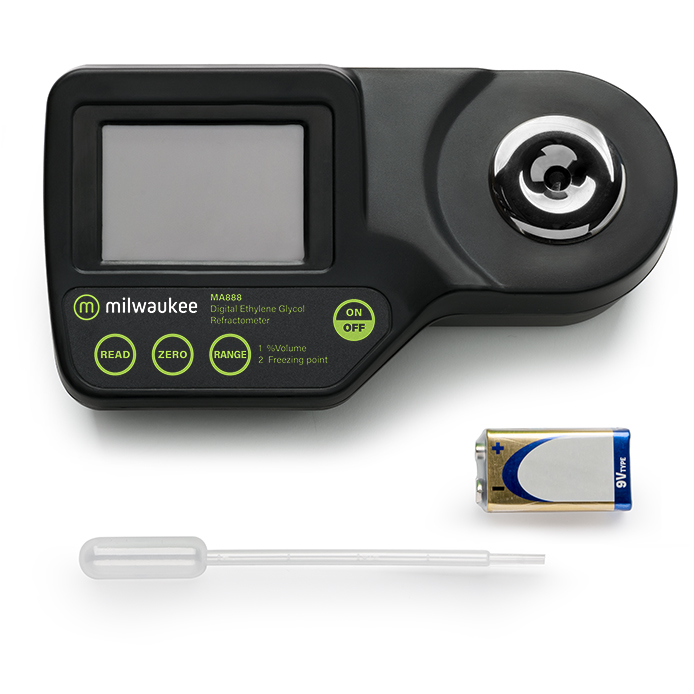

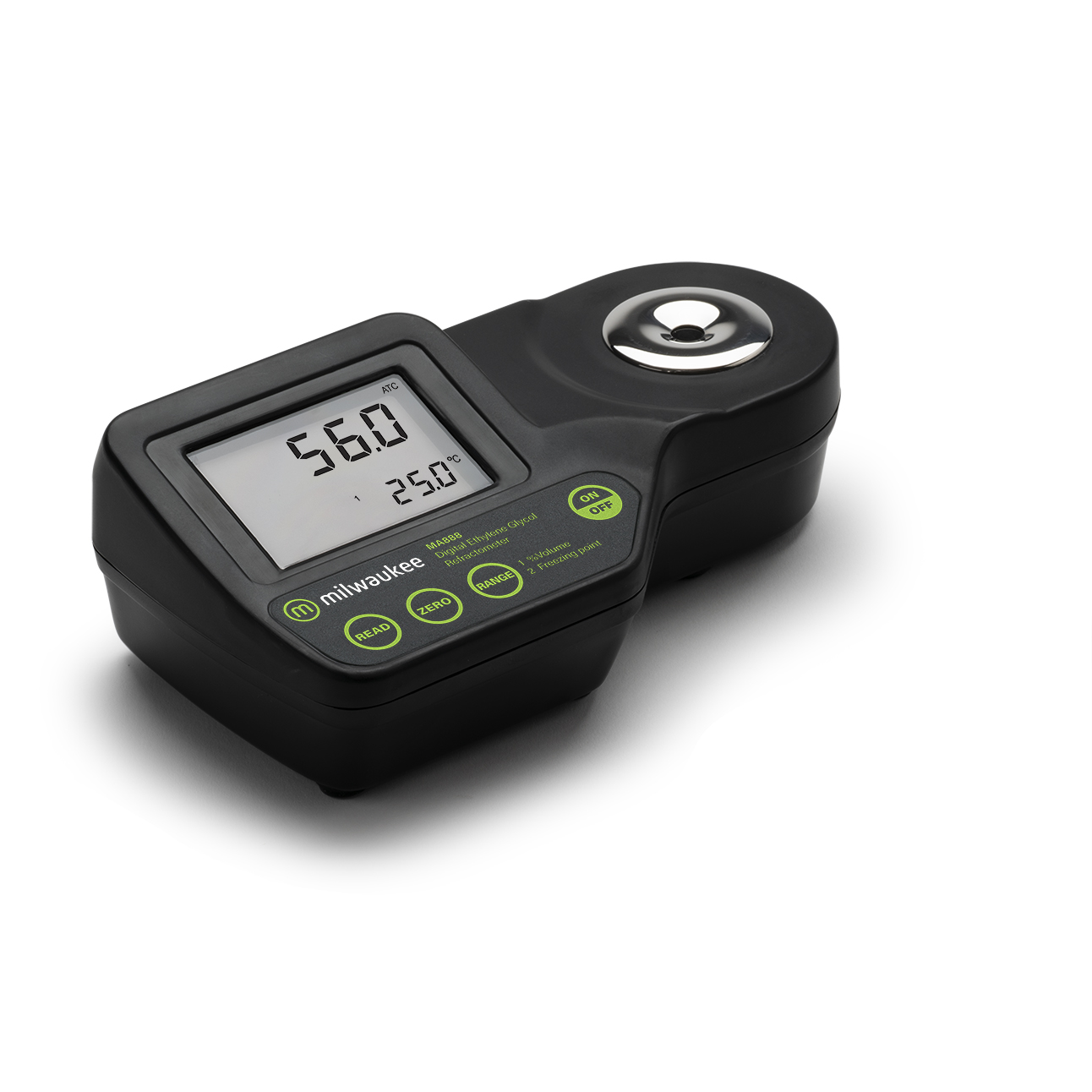

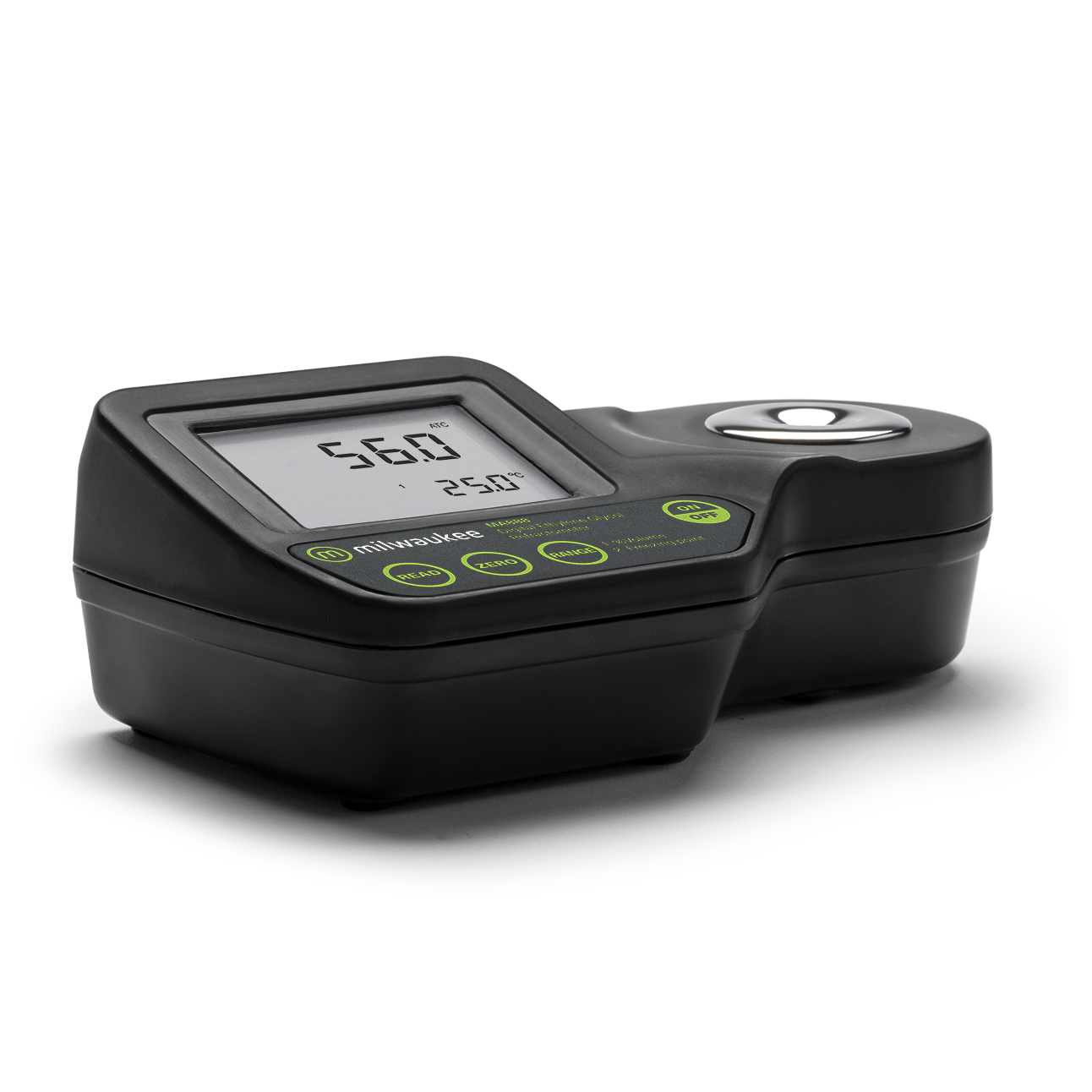

Milwaukee MA888 Digital Ethylene Glycol Refractometer
Product number: 895546
€180.70*
Please log in to receive your conditions.
Available in 7 days, delivery time 1-2 days
Product number:
895546
GTIN:
4260682386021
Measurement parameters:
Volume, Freezing Point, Temperature
Measuring range:
0 to 100% Volume | Freezing Point 0 to -50°C (32 to -58°F) | Temperature 0 to 80°C / 32 to 176°F
Application:
e.g. of ethylene glycol based coolants of antifreeze
Offer as PDF
Login for addressed offer The entered number of pieces will be taken into account when creating the offer.
Login for addressed offer The entered number of pieces will be taken into account when creating the offer.
Product information "Milwaukee MA888 Digital Ethylene Glycol Refractometer"
The MA888 is an potical instrument that employs the measurements of the refractive index to determine the % volume and freezing point of ethylene glycol based coolants of antifreeze.
The digital refractometer eliminates the uncertainty associated with mechanical refractometers and is easily portable for use in the field to optimize your cooling system.
The MA888 refractometer is an optical device that is simple and quick to use.
Samples are measured after a simple user calibration with distilled or deionized water. Within seconds, the refractive index and temperature are measured and converted into one of two measurement units; % Volume or Freezing Point.
The Instrument utilizes internationally recognized references for unit conversion and temperature compensation for ethylene glycol solutions (e.g. CRC Handbook of Chemistry and Physics, 87th Edition).
The temperature (in °C or °F) is also displayed on the large dual level display along with helpful message codes.
Key features:
- Dual-level LCD
- Automatic Temperature Compensation (ATC)
- Easy setup
- Battery operation with Low Power indicator (BEPS)
- Automatically turns off after 3 minutes of non-use
Dimensions
| Height | 11,8 cm |
|---|---|
| Length | 26,8 cm |
| Width | 12,2 cm |
Weight
| Weight | 660 g |
|---|
Other attributes
| Applications | Heating, Water Treatment |
|---|---|
| Brand | Milwaukee |
| Country of origin | RO |
| Customs tariff number | 38221900 |
| Quality | Advanced |
Technical specifications
Range: 0 to 50 PSU: 0 to 150 ppt | 1.000 to 1.114 S.G. (20/20) | 0 to 80°C / 32 to 176°F
Resolution: 1 PSU | 1 ppt | 0.001 S.G. (20/20) | 0.1°C / 0.1°F
Accuracy: ±2 PSU | ±2 ppt | ±0.002 S.G. (20/20) | ±0.3°C / ±0.5°F
Light Source: Yellow LED
Measurement Time: Approximately 1.5 seconds
Minimum Sample: Volume 100 µL or 2 metrics drops (cover prism totally)
Sample Cell: Stainless steel ring and flint glass prism
Temperature Compensation: Automatic between 10 and 40°C / 50 to 104°F
Enclosure rating: IP65
Case Material: ABS
Battery Type: 1 x 9V AA (included)
Battery Life: 5000 hours reading with auto-shut off after 3 minutes of non-use
Dimensions Meter: 192 x 102 x 67 mm
Weight Meter: 0.42 kg
Dimensions Package: 268 x 172 x 118 mm
Weight Packaged: 0.66 kg
