Calcium (Ca2+) ion-selective electrode for 300 seriesThe new electrode is suitable for the LAQUA WQ-300 series from Horiba and offers precise and reliable measurements for ions in aqueous solutions. It is characterised by its user-friendly handling and environmentally friendly design and can be used for a wide range of applications.Linearity in measurement range:The range where the calibration curve has linearity is called the measurement range. When lower concentration is measured where the linearity is not established, perform calibration at two points in the lower concentration range.Below graph shows the theoretical calibration curve of a calcium ion selective electrode.Influence of pH:The impact of the pH may cause a decrease in the slope of the ion selective electrode, or parallel shifting of the calibration curve. To prevent these effects, set the pH to an appropriate value in advance and keep it constant.Interfering ions:Ion selective electrodes have good selectivity with respect to the ions to be measured, but they may react to the other ions. When using the ion electrode method, it is important to know the effects of coexistent ions and take measures to avoid them. Interfering ions may form compounds with poor solubility or may form complex salts with the structure material of the ion selective membrane, these may to have a significant impact on the measured value.Conditioning:An electrode is conditioned by soaking it in a standard solution for 1 hour or longer. Use a standard solution whose concentration is 100 mg/L or more.In the following cases, perform conditioning of the electrode before calibration.• Before the first use.• Before use after storage for 2 weeks or longer.• If the electrode is less responsive.Calibration:Always calibrate with at least 2 calibration solutions which are 1 decade apart and bracket the expected measurement value.Use fresh calibration solutions and do not re-use them.• Below 10 ppm (mg/L)First solution between 1 and 10ppmSecond solution between 10 and 50 ppm• Between 10 and 100 ppm (mg/L)First solution between 10 and 100ppmSecond solution between 100 and 1000 ppm• Above 100 ppm (mg/L)First solution between 100 and 1000ppmFurther information can be found in the download area of the store. Manufacturer article number: 3200986786 (300-CA-C)

Manufacturer's number: 3200697410 Ion-selective electrodes respond to the concentration of specific ions in the test fluid and are variable potential electrodes. They are used in conjunction with reference electrodes to measure the concentration of certain ions. When measuring with an ion meter, the ion concentration can be read directly by calibrating with different standard solutions. Since the volume reading changes with temperature, measurements must be taken at a fixed temperature.

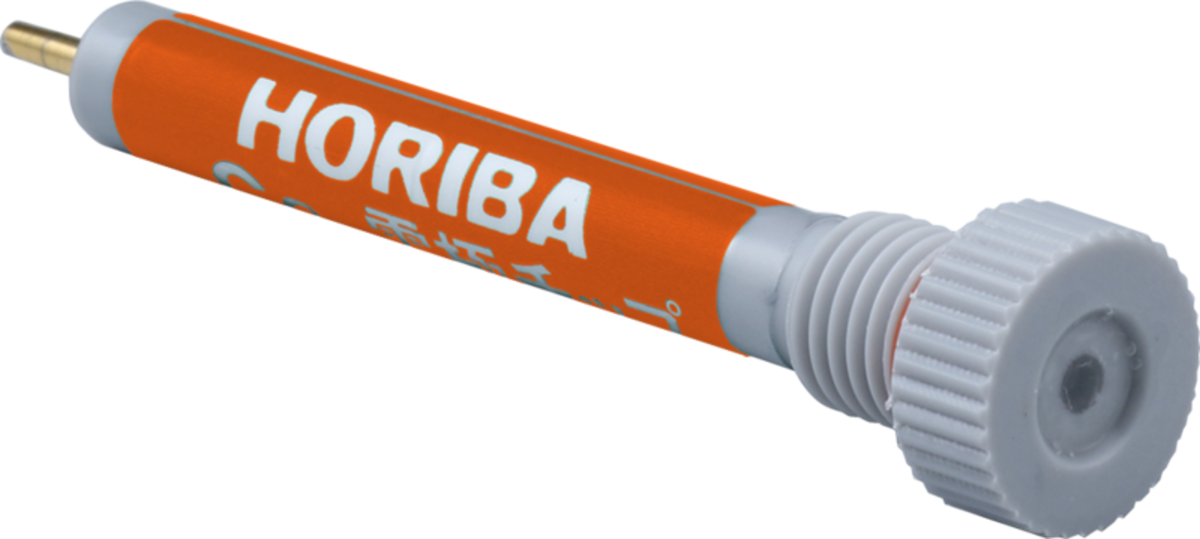

Manufacturer's number: 3200697414Calcium (Ca2+) replacement electrode tip for 6583S-10C

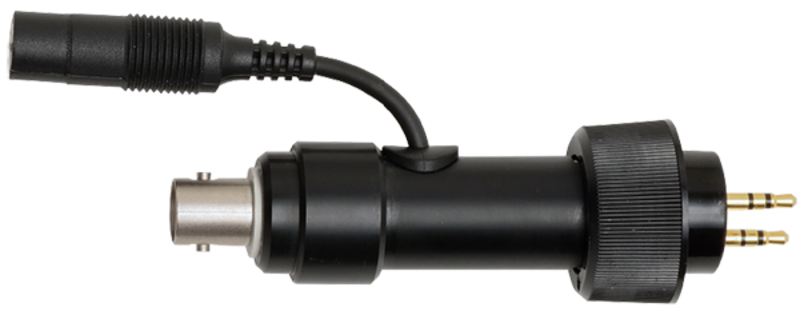

The Horiba LAQUA 300 BNC adapter is an intermediate piece to connect an ion selective electrode to the Smart Sensor Module with cable to an 300 series meter. After prior clarification with our company, your previous pH and redox electrodes can, if applicable, be connected to the 300 series meter after a compatibility check.Manufacturer number: 3200821465

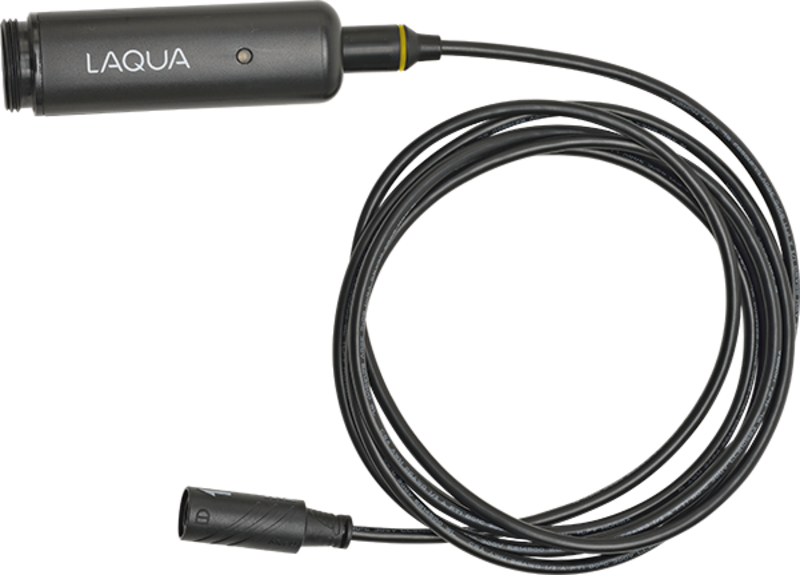

Cable with digital sensor head to accommodate the ion selective sensors.   Manufacturer Part Nr. :3200812203 (2 metres 300-I-2)    3200923560 (5 metres 300-I-5) Note: To use the ion selective sensors, the respective adapters are required.

Cable with digital sensor head to accommodate the ion selective sensors.   Manufacturer Part Nr. :3200812203 (2 metres 300-I-2)    3200923560 (5 metres 300-I-5) Note: To use the ion selective sensors, the respective adapters are required.

The HORIBA LAQUAtwin Pocket Tester series provides a comprehensive solution for immediate and precise measurement of water quality parameters directly in the field. To ensure these measurements remain reliable and accurate, regular monitoring of the sensors and, if necessary, replacement with spare sensors is essential. The replacement sensors are specifically designed for the HORIBA LAQUAtwin series and cover a wide range of types for various measurements: pH, conductivity, salinity, redox (ORP), as well as ion-selective sensors for sodium, potassium, nitrate, calcium, and fluoride. Each sensor is engineered to maximize user-friendliness and accuracy, qualities for which HORIBA is globally recognized in water quality testing. HORIBA replacement sensors ensure that users’ devices consistently deliver optimal performance and precise measurements. Advantages of HORIBA Replacement Sensors: Easy Replacement: The sensors can be replaced quickly, allowing measurements to continue without delay. High Precision: Replacement sensors ensure that results are accurate and reliable. Wide Measurement Range: Various sensor types are available to cover a broad spectrum of water quality parameters. Durability: The sensors are designed for long service life, even under challenging conditions. Sensor Replacement Instructions: Follow these steps when replacing the sensor to ensure the longevity and accuracy of your HORIBA LAQUAtwin Pocket Tester: Removing the Sensor: Turn off the tester. Lift the sensor tip slightly and pull the sensor a short distance away from the device. Completely detach the sensor from the tester. Installing the Sensor: Ensure the tester is turned off. Check that the waterproof gasket is intact and clean. Place the sensor onto the tester so that hook “A” on the back of the device fits into hole “a” on the sensor tip. Make sure the waterproof gasket is not twisted. Important: After replacing the sensor, follow the instructions in the user manual of the respective tester to make the device ready for accurate measurement. These manuals are available with the products and typically require calibration and, if necessary, conditioning. How can I tell if my sensor is worn out? Check the sensor condition as follows: Perform a 2-point calibration. If an error occurs during calibration, this indicates that the sensor has deteriorated. In this case, the sensor should be replaced. Regular checks and timely sensor replacement ensure that water quality measurements with HORIBA LAQUAtwin Pocket Testers remain accurate and reliable. Manufacturer Part Nr. 3200459869

Horiba Y046 Sampling Sheet B Contains 100 pcs. / boxuse for minute samples (minimum of 0.05 ml) and particulate-containing samples (e.g., soil extract) for the latter, please use sampling sheet holder and cover the sensor during measurement for LAQUAtwin and Twin pocket meters, except conductivity and salt EC modelsManufacturer Part Nr. 3200053858

Horiba Y048 sample sheet holder for sample sheet B (sheet B is used for samples with particles)Manufacturer Part Nr. 3200459736

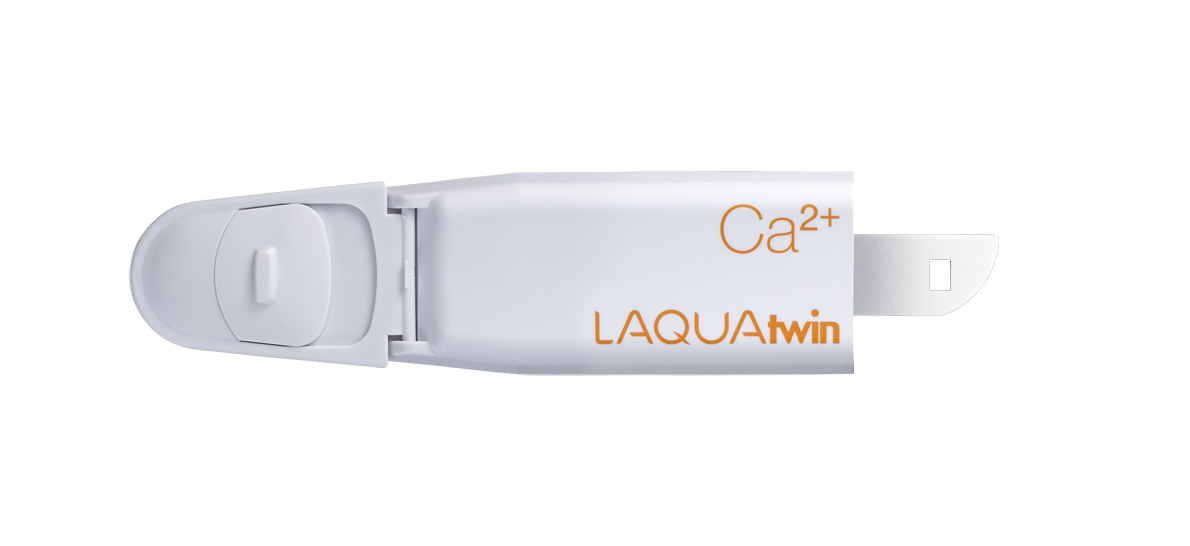

To ensure measurements remain reliable and accurate, it is important to regularly check the sensor and replace it with a spare sensor if necessary. The replacement sensor is specifically designed for the HORIBA LAQUAtwin Ca-11C for animal blood. This sensor is engineered to optimize user-friendliness and accuracy. With HORIBA replacement sensors, users can be confident that their devices consistently deliver optimal performance and precise results. Advantages of HORIBA Replacement Sensors: Easy Replacement: Sensors can be quickly replaced, allowing measurements to continue without delay. High Accuracy: Replacement sensors ensure that results are precise and reliable. Comprehensive Measurement Range: Various sensor types are available to measure a wide range of parameters. Durability: Sensors are designed for long service life, even under challenging conditions. Sensor Replacement Instructions: To ensure the longevity and accuracy of your HORIBA LAQUAtwin Pocket Tester, please follow these instructions when replacing a sensor: Removing the Sensor: Turn off the tester. Carefully detach the sensor from the device and lift the sensor tip. Completely separate the sensor from the tester so that the two components are no longer connected. Installing the Sensor: Ensure the tester is turned off. Check that the waterproof gasket is clean and intact. Attach the sensor to the tester by inserting hook “A” on the back of the device into hole “a” on the sensor tip. Make sure the waterproof gasket is not twisted. Important: After replacing the sensor, it is essential to follow the steps in the user manual of the respective tester to make the device ready for accurate measurements. These manuals are available with the products. Calibration and, if necessary, conditioning are usually required. How can I tell if my sensor shows signs of wear? Check the sensor condition as follows: Perform a 2-point calibration to assess the sensor’s condition. If an error occurs during calibration, this indicates that the sensor has deteriorated. In this case, replacing the sensor is recommended. Regular checks and timely replacement of sensors are essential to maintain the high standards and reliability of water quality measurements performed with HORIBA LAQUAtwin Pocket Testers. S051 Calcium replacement sensor for Ca-11C Manufacturer article number: 3200772945
