HORIBA fluoride meters – analysis for water, environment and food

The High-End LAQUA F-72 forms the top of the laboratory instruments series and measures the parameters pH, ORP, ion, as well as temperature. Ion selective parameters (each with his own electrode):  Ammonia ion (NH3), Calcium ion (Ca2+), Chloride ion (Cl-), Fluoride ion (F-), Nitrate Ion (NO3-), Potassium ion (K+) The auto-diagnostic function of the F- series allows the user to ensure that the instruments always provide powerful and reliable measurements. The LAQUA F-72 is fully GLP/GMP compliant and can be connected to an external printer. To ensure traceability, all results are recorded along with sample name, user ID and calibration information. The instrument offers you the proven calibration functions with automatic buffer recognition, stability display as well as the display of the electrode status (wear indicator). We offer a comprehensive range of conductivity electrodes suitable for all types of applications and samples. Known for their stability and durability, HORIBA's electrodes provide accurate measurements under all conditions.LAQUA's large capacitive touch screen panel:Large 5,7" (115,2 x 86,4 mm) graphic touch- color screen Display easy-to-understand menus for values and functionsEffortless single-touch operations- tap, flick and dragSwitch between real-time digital graphs or analogue displays during measurement with a single finger movement  Single channel displayExtensive on-screen support on the meter through an electronic user manual with colour images that can be accessed at any time and includes problem-solving instructions for calibration or measurementFeatures:Easy navigation for main instrument and electrode inspections Mode for periodic inspections: JIS/pharmacopoeia/digital simulator Customisable auto-hold function for calibration and measurement Simultaneous connection to a GLP/GMP compliant and a PC Digital memory - up to 2,000 measurement data sets can be recorded360° electrode stand which holds up to three electrodes and is height adjustable  USB PC communication and USB memory  Multilingual support (Japanese, English, Chinese, Korean)Scope of deliveryF-72 Meterelectrode standprotection coverpower adaptor with 6 plugsdata acquisition software in USB9615S-10D - refillable, glass-body pH electrode with integrated temperature sensor, 1m cable, BNC & phono jack502-S - each 1x pH 4.01, 7.00, 10.01, 3.33M KCl solution (250 ml)

The Dual Channel LAQUA F-73 forms the top of the laboratory instruments series and measures the parameters pH, ORP, ion, as well as temperature.  Ion selective parameters (each with his own electrode):  Ammonia ion (NH3), Calcium ion (Ca2+), Chloride ion (Cl-), Fluoride ion (F-), Nitrate Ion (NO3-), Potassium ion (K+) The auto-diagnostic function of the F- series allows the user to ensure that the instruments always provide powerful and reliable measurements. The LAQUA F-73 is fully GLP/GMP compliant and can be connected to an external printer. To ensure traceability, all results are recorded along with sample name, user ID and calibration information. The instrument offers you the proven calibration functions with automatic buffer recognition, stability display as well as the display of the electrode status (wear indicator). We offer a comprehensive range of conductivity electrodes suitable for all types of applications and samples. Known for their stability and durability, HORIBA's electrodes provide accurate measurements under all conditions.LAQUA's large capacitive touch screen panel:Large 5,7" (115,2 x 86,4 mm) graphic touch- color screen Display easy-to-understand menus for values and functionsEffortless single-touch operations- tap, flick and dragSwitch between real-time digital graphs or analogue displays during measurement with a single finger movement  Switchable single or dual channel displayExtensive on-screen support on the meter through an electronic user manual with colour images that can be accessed at any time and includes problem-solving instructions for calibration or measurementFeatures:Easy navigation for main instrument and electrode inspections Mode for periodic inspections: JIS/pharmacopoeia/digital simulator Customisable auto-hold function for calibration and measurement Simultaneous connection to a GLP/GMP compliant and a PC Digital memory - up to 2,000 measurement data sets can be recorded360° electrode stand which holds up to three electrodes and is height adjustable  USB PC communication and USB memory  Multilingual support (Japanese, English, Chinese, Korean)Scope of deliveryF-73 Meterelectrode standprotection coverpower adaptor with 6 plugsdata acquisition software in USB Manufacturer article number: 3200575123 (F-73G)

The High-End LAQUA F-74 forms the top of the laboratory instruments series and measures the parameters pH, ORP, ion, conductivity, resistance, salinity, TDS as well as temperature and complies with the standards of the industrial pharmacopoeias (JIS, USP, EP, JP and CP). Channel 1: pH, ion selective parameters, mV, ORPChannel 2: conductivity, salinity, resistivity and TDS Ion selective parameters (each with his own electrode):  Ammonia ion (NH3), Calcium ion (Ca2+), Chloride ion (Cl-), Fluoride ion (F-), Nitrate Ion (NO3-), Potassium ion (K+) The auto-diagnostic function of the F- series allows the user to ensure that the instruments always provide powerful and reliable measurements. The LAQUA F-74 is fully GLP/GMP compliant and can be connected to an external printer. To ensure traceability, all results are recorded along with sample name, user ID and calibration information. The instrument offers you the proven calibration functions with automatic buffer recognition, stability display as well as the display of the electrode status (wear indicator). We offer a comprehensive range of conductivity electrodes suitable for all types of applications and samples. Known for their stability and durability, HORIBA's electrodes provide accurate measurements under all conditions.LAQUA's large capacitive touch screen panel:Large 5,7" (115,2 x 86,4 mm) graphic touch- color screen Display easy-to-understand menus for values and functionsEffortless single-touch operations- tap, flick and dragSwitch between real-time digital graphs or analogue displays during measurement with a single finger movement  Switchable single or dual channel displayExtensive on-screen support on the meter through an electronic user manual with colour images that can be accessed at any time and includes problem-solving instructions for calibration or measurementFeatures:Easy navigation for main instrument and electrode inspections Mode for periodic inspections: JIS/pharmacopoeia/digital simulator Customisable auto-hold function for calibration and measurement Simultaneous connection to a GLP/GMP compliant and a PC Digital memory - up to 2,000 measurement data sets can be recorded360° electrode stand which holds up to three electrodes and is height adjustable  USB PC communication and USB memory  Multilingual support (Japanese, English, Chinese, Korean)Scope of deliveryF-74 Meterelectrode standprotection coverpower adaptor with 6 plugsdata acquisition software in USB Manufacturer article number: 3200575130 (F-74G)

High-end laboratory measuring instrument for analytics  Dear customers, herewith we offer you our highly professional Horiba laboratory table-top measuring instrument of the 2000 series.  The LAQUA 2000 series laboratory tabletop meter has a very high-quality 5 inch display with backlighting which shows you all the important information, such as the measured value with up to four decimal places in this version (depending on the resolution), the temperature, the date with time and much more.  The LAQUA 2000 series also offers you an adequate device memory with automatic data storage after a set time interval to document your daily measurements accurately over a long period of time. To protect the device settings from unauthorised access, they are password-protected. After your measurements, you can easily transfer all measurement data from the device to your PC via a USB cable in CSV, Excel and Pdf formats using the DAS20 software.  In order to facilitate your daily work with the device, the table measuring device visualises the correct calibration, the stable measurement as well as the electrode wear condition. The operation is intuitive because the available keys are marked with symbols and abbreviations. After the analysis, you can clean the device easily and in a time-saving manner with a damp cloth, as the surface is dirt-repellent due to its nature. With the electrode stand included in the scope of delivery, two electrodes can be held and adjusted in height. This allows you to individually align your electrode to your container or glass for calibration and measurement. Special features of the Laqua ION2000 model : The ION2000 is a laboratory meter to which you can connect the separately available ion-selective Horiba probes or determine the pH value and the redox value via the electrodes. Single input, connection of one electrode. Ions (ammonia, calcium, chloride, fluoride, nitrate, potassium)  Measurement ion-selective  accepts combined and half-cell ion-selective electrodes  wide measuring range from 0.000 μg/L to 9999 g/L  accepts up to 5 user-defined ion calibration points  choice of preferred units: μg/L - mg/L - g/L, ppm - ppt, mmol/L - mol/L  Resolution of 4 significant digits after the decimal point with automatic scaling  pH-ORP wide measuring range; -2.000 to 20.000 pH  high accuracy; ± 0.003 pH  resolution: 0.1, 0.01 or 0.001 pH  continuous display of calibrated points  display of offset and slope - by segment and average up to 5 pH  calibration points ± 2000.0 mV  1-point redox calibration  automatically recognises and calibrates USA, NIST, NIST2 and DIN pH buffers  allows CUST (Custom) buffers for manual calibration  Below we would like to show you in full the general functions of the Horiba LAQUA 2000 series:  internal memory for up to 2000 data sets, measurement data with time and date information  records and stores data in the unit memory based on a specified time interval  a 4-digit password protects the meter set-up mode from unauthorised access  data can be transferred to a computer and exported in the following formats CSV/Excel/PDF  GLP/GMP compliance of the instrument as data can be displayed, recorded and printed with date and time stamp on the instrument  Software updates can be downloaded to the instrument  Calibration reminder function, indicates that it is time to calibrate (alarm adjustable up to 90 days)  Electrode holder is mounted on the meter and can hold up to 2 electrodes (rotates 360º and can be moved up and down 30cm)  Displays measurement stability in measurement and calibration mode  displays electrode condition based on calibration data  smooth surface, easy cleaning  RS-232/USB, therefore easy PC and printer connection and free instrument software  Ergonomic design for easy viewing and operation  Clearly labelled and easy-to-use ports for communication and measurement  5" digital display with backlight, shows all important measurement values and status  Automatic calibration, recognises a wide range of standard solutions adjustable switch-off time (up to 30 minutes)  temperature compensation, the temperature in °C or °F is either automatically detected if a temperature sensor is connected (ATC mode) or manually entered by the user  several measuring modes:  Auto-Stable mode signals a stable measured value, Auto-Hold mode holds a stable measured value Real Time mode continuously displays current readings  small meter footprint of 155 x 150 mm, saves valuable space  Temperature detection, easy display of sample temperature user selectable resolution, up to 3 digits  Fixed and individual calibration points Easy navigation, navigate through the settings menu by up, down, right and left  Scope of delivery:  Measuring device with integrated electrode stand  Universal mains adapter with 6 plugs  Operating instructions  Manufacturer part number: Meter only ION2000 (3200896963)

High-end laboratory measuring instrument for analytics  Dear customers, herewith we offer you our highly professional Horiba laboratory table-top measuring instrument of the 2000 series.  The LAQUA 2000 series laboratory tabletop meter has a very high-quality 5 inch display with backlighting which shows you all the important information, such as the measured value with up to three decimal places (depending on the resolution), the temperature, the date with time and much more.  The LAQUA 2000 series also offers you an adequate device memory with automatic data storage after a set time interval to document your daily measurements accurately over a long period of time. To protect the device settings from unauthorised access, they are password-protected. After your measurements, you can easily transfer all measurement data from the device to your PC via a USB cable in CSV, Excel and Pdf formats using the DAS20 software.  In order to facilitate your daily work with the device, the table measuring device visualises the correct calibration, the stable measurement as well as the electrode wear condition. The operation is intuitive because the available keys are marked with symbols and abbreviations. After the analysis, you can clean the device easily and in a time-saving manner with a damp cloth, as the surface is dirt-repellent due to its nature. The electrode stand included in the starter set can be used to hold two electrodes and adjust their height. This allows you to individually align your electrode to your container or glass for calibration and measurement. Special features of the Laqua PC2000 model (multi-parameter): The PC2000 is a combination of the ION2000 and the EC2000 with the advantage that you can measure all parameters with one device. Dual input, connection of 2 electrodes at the same time. pH-ORP wide measuring range; -2.000 to 20.000 pH  high accuracy; ± 0.003 pH  resolution: 0.1, 0.01 or 0.001 pH  continuous display of calibrated points  display of offset and slope - by segment and average up to 5 pH  calibration points ± 2000.0 mV  1-point redox calibration  automatically recognises and calibrates USA, NIST, NIST2 and DIN pH buffers  allows CUST (Custom) buffers for manual calibration  Conductivity-resistivity-TDS-salinity wide measuring range from 0.001μS/cm to 2,000 S/cm  allows automatic and manual conductivity calibrations  records individual and average calibration factors after conductivity calibration  Calculates resistance, TDS and salinity based on measured conductivity  7 conductivity ranges:   0.000 to 1.999 μS/cm (k = 0.1)  2.00 to 19.99 μS/cm (k = 0.1, 1)  20.0 to 199.9 μS/cm (k = 0.1, 1, 10)  200 to 1999 μS/cm (k = 0.1, 1, 10)  2.00 to 19.99 mS/cm (k = 0.1, 1, 10)  20.0 to 199.9 mS/cm (k = 1, 10)  0.200 to 2.000 S/cm (k = 10) Ions (ammonia, calcium, chloride, fluoride, nitrate, potassium)  Measurement ion-selective accepts combined and half-cell ion-selective electrodes wide measuring range from 0.000 μg/L to 9999 g/L accepts up to 5 user-defined ion calibration points choice of preferred units: μg/L - mg/L - g/L, ppm - ppt, mmol/L - mol/L Resolution of 4 significant digits after the decimal point with automatic scaling  Below we would like to show you in full the general functions of the Horiba LAQUA 2000 series: internal memory for up to 2000 data sets, measurement data with time and date information records and stores data in the unit memory based on a specified time interval a 4-digit password protects the meter set-up mode from unauthorised access data can be transferred to a computer and exported in the following formats CSV/Excel/PDF GLP/GMP  compliance of the instrument as data can be displayed, recorded and printed with date and time stamp on the instrument Software updates can be downloaded to the instrument Calibration reminder function, indicates that it is time to calibrate (alarm adjustable up to 90 days) Electrode holder is mounted on the meter and can hold up to 2 electrodes (rotates 360º and can be moved up and down 30cm). Electrode holder only included in the starter set.Displays measurement stability in measurement and calibration mode displays electrode condition based on calibration data smooth surface, easy cleaning RS-232/USB, therefore easy PC and printer connection and free instrument software Ergonomic design for easy viewing and operation Clearly labelled and easy-to-use ports for communication and measurement 5" digital display with backlight, shows all important measurement values and status Automatic calibration, recognises a wide range of standard solutionsadjustable switch-off time (up to 30 minutes) temperature compensation, the temperature in °C or °F is either automatically detected if a temperature sensor is connected (ATC mode) or manually entered by the user several measuring modes: Auto-Stable mode signals a stable measured value,Auto-Hold mode holds a stable measured valueReal Time mode continuously displays current readings small meter footprint of 155 x 150 mm, saves valuable space Temperature detection, easy display of sample temperature user selectable resolution, up to 3 digits Fixed and individual calibration pointsEasy navigation, navigate through the settings menu by up, down, right and left Scope of delivery: Measuring device with integrated electrode stand Universal mains adapter with 6 plugs Operating instructions Starter set version additionally contains 9625-10D refillable pH electrode with plastic body 9382-10D conductivity electrode with plastic body, cell constant k=1.0 pH 4, 7 and 10 buffer solutions & 3.33M KCl (1 x 250ml each) 84 µS/cm, 1413 µS/cm, 12.88 mS/cm (1 x 250ml each) with electrode holderFlow cell available in combination with 9371-10 stainless steel conductivity cell for ultrapure water measurement (300-2C-C) Manufacturer part number:Meter only   PC2000 (3200896964) Starter-set   PC2000-SR (1300098882)

Thank you for your interest in our smart and customizable Horiba WQ-300 series instruments.The high-quality digital multi-parameter handheld meters with their generous color LCD display with LED backlight (7 cm x 5.2 cm) are ideally suited for use in the field under all conditions and in direct daylight.Use our configurator to freely select the suitable measuring device of the WQ-300 Horiba series (1 to 3 channels), the measuring parameters (sensor cartridges) and desired cable length (with integrated sensor receptacle + digital module) according to your wishes and requirements. At a later stage, you can always connect another available measurement parameter to the device via the corresponding sensor cable or carry it in the case as a supplement. As with other handheld measuring devices from Horiba, a major advantage of these devices is that the measuring devices are highly resistant to shock, slipping and scratching thanks to a special rubber coating. Only four standard AA 2500 mAh batteries are required for operation, and to give you more flexibility when you are on the move, the WQ-300 series devices can also be powered by a powerbank or battery pack via the integrated USB interface. The IP67 certification, which certifies dustproofness and protection against temporary submersion for up to 30 minutes at a water depth of one meter, completes the overall professional package, along with the usual ergonomic design and ease of user operation.  Horiba attests to its outstanding product quality by offering a three-year warranty on the LAQUA WQ-300 series handheld meters. Other added values and features:During analyses, the user is supported by the display of operating instructions in the form of smiley icons, which is supplemented by an LED status display on the sensor. This is intended to prevent operating errors, which can lead to implausible measurement results. The design decision to install only a small number of control buttons and not to implement any nested user menus serves to ensure that the devices can be operated easily and safely even during discontinuous use as well as when used by other users.  The measuring instruments have an electrode wear indicator, a measuring stability indicator on the instrument and sensor, a locking function to "save" the currently measured value on the display, free naming of the measuring point (8 characters), automatic calibration functions, integrated sensor holders, self-diagnosis function, as well as GLP functions. The fold-out stand on the back of the instruments means that you always have your hands free to carry out your measurements easily and safely. Measurement data can be conveniently transferred to your computer or cell phone via USB or WiFi.All handheld meters of the 300 series are delivered in a reinforced measuring case for mobile use in the open air. This provides space for the meter, for electrodes and cables, for up to eight 60 ml bottles of buffer solutions including an integrated buffer solution bottle holder for easier calibration. Particularly noteworthy is the automatic sensor recognition of the instrument through the use of sensor cables with integrated digital sensor recording. Information about the sensor, calibration data as well as measurement settings are stored in the sensor recording and transmitted to the measuring instrument. In addition, calibration of all connected sensors is possible at the same time, since each sensor head independently stores the measurement and calibration data and transmits it to the WQ300 series measuring device.Optionally, there is the possibility to connect and use analog sensors via the Horiba BNC sensor adapter with the device, please contact us for this.Languages:GermanEnglishFrenchSpanishPortugueseChineseScope of delivery:WQ-300 series handheld meter in a carrying casethe digital electrode you have chosen, if applicable, and the corresponding sensor-specific cable with integrated digital sensor receptaclemanualManufacturer article number single measuring device WQ-310-K 1 channel: 3200832605 Note: Chloride sensor, if selected, is supplied without chloride ion strength regulator and chloride electrode filling solution. This must be procured by the customer. Without the filling solution the sensor can´t be used. Why We Use These Measuring Devices in Water Treatment Precise calcium control is a key element of efficient water treatment – from drinking water purification and process water management to environmental analysis. Elevated calcium levels can lead to scaling, pipe damage, energy losses, and disruptions in chemical processes. For this purpose, we offer tailored high-end solutions from the Horiba LAQUA WQ Series (WQ310-K, WQ320-K, WQ330-K) in our online shop, specifically designed to meet the needs of water technology:  WQ310-K: Single-parameter solution for targeted measurements • WQ320-K: Simultaneous monitoring of, for example, calcium and conductivity • WQ330-K: Three-channel measurement for complex real-time multi-parameter analyses Why We Rely on These Devices: • They provide reliable data for controlling and optimizing water treatment systems • They offer digital evaluation, documented results, and interfaces for process integration • They are robust, packaged in a practical analysis case, and thus also suitable for mobile on-site use • They allow calcium to be measured in combination with other parameters such as pH, conductivity, or redox – for a holistic and efficient approach

Thank you for your interest in our smart and customizable Horiba WQ-300 series instruments.The high-quality digital multi-parameter handheld meters with their generous color LCD display with LED backlight (7 cm x 5.2 cm) are ideally suited for use in the field under all conditions and in direct daylight.Use our configurator to freely select the suitable measuring device of the WQ-300 Horiba series (1 to 3 channels), the measuring parameters (sensor cartridges) and desired cable length (with integrated sensor receptacle + digital module) according to your wishes and requirements. At a later stage, you can always connect another available measurement parameter to the device via the corresponding sensor cable or carry it in the case as a supplement. As with other handheld measuring devices from Horiba, a major advantage of these devices is that the measuring devices are highly resistant to shock, slipping and scratching thanks to a special rubber coating. Only four standard AA 2500 mAh batteries are required for operation, and to give you more flexibility when you are on the move, the WQ-300 series devices can also be powered by a powerbank or battery pack via the integrated USB interface. The IP67 certification, which certifies dustproofness and protection against temporary submersion for up to 30 minutes at a water depth of one meter, completes the overall professional package, along with the usual ergonomic design and ease of user operation.  Horiba attests to its outstanding product quality by offering a three-year warranty on the LAQUA WQ-300 series handheld meters. Other added values and features:During analyses, the user is supported by the display of operating instructions in the form of smiley icons, which is supplemented by an LED status display on the sensor. This is intended to prevent operating errors, which can lead to implausible measurement results. The design decision to install only a small number of control buttons and not to implement any nested user menus serves to ensure that the devices can be operated easily and safely even during discontinuous use as well as when used by other users.  The measuring instruments have an electrode wear indicator, a measuring stability indicator on the instrument and sensor, a locking function to "save" the currently measured value on the display, free naming of the measuring point (8 characters), automatic calibration functions, integrated sensor holders, self-diagnosis function, as well as GLP functions. The fold-out stand on the back of the instruments means that you always have your hands free to carry out your measurements easily and safely. Measurement data can be conveniently transferred to your computer or cell phone via USB or WiFi.All handheld meters of the 300 series are delivered in a reinforced measuring case for mobile use in the open air. This provides space for the meter, for electrodes and cables, for up to eight 60 ml bottles of buffer solutions including an integrated buffer solution bottle holder for easier calibration. Particularly noteworthy is the automatic sensor recognition of the instrument through the use of sensor cables with integrated digital sensor recording. Information about the sensor, calibration data as well as measurement settings are stored in the sensor recording and transmitted to the measuring instrument. In addition, calibration of all connected sensors is possible at the same time, since each sensor head independently stores the measurement and calibration data and transmits it to the WQ300 series measuring device.Optionally, there is the possibility to connect and use analog sensors via the Horiba BNC sensor adapter with the device, please contact us for this.Languages:GermanEnglishFrenchSpanishPortugueseChineseScope of delivery:WQ-300 series handheld meter in a carrying casethe digital electrode you have chosen, if applicable, and the corresponding sensor-specific cable with integrated digital sensor receptaclemanualManufacturer article number single measuring device WQ-320-K 2 channel: 3200832606 Note: Chloride sensor, if selected, is supplied without chloride ion strength regulator and chloride electrode filling solution. This must be procured by the customer. Without the filling solution the sensor can´t be used.

Thank you for your interest in our smart and customizable Horiba WQ-300 series instruments.The high-quality digital multi-parameter handheld meters with their generous color LCD display with LED backlight (7 cm x 5.2 cm) are ideally suited for use in the field under all conditions and in direct daylight.Use our configurator to freely select the suitable measuring device of the WQ-300 Horiba series (1 to 3 channels), the measuring parameters (sensor cartridges) and desired cable length (with integrated sensor receptacle + digital module) according to your wishes and requirements. At a later stage, you can always connect another available measurement parameter to the device via the corresponding sensor cable or carry it in the case as a supplement. As with other handheld measuring devices from Horiba, a major advantage of these devices is that the measuring devices are highly resistant to shock, slipping and scratching thanks to a special rubber coating. Only four standard AA 2500 mAh batteries are required for operation, and to give you more flexibility when you are on the move, the WQ-300 series devices can also be powered by a powerbank or battery pack via the integrated USB interface. The IP67 certification, which certifies dustproofness and protection against temporary submersion for up to 30 minutes at a water depth of one meter, completes the overall professional package, along with the usual ergonomic design and ease of user operation.  Horiba attests to its outstanding product quality by offering a three-year warranty on the LAQUA WQ-300 series handheld meters. Other added values and features:During analyses, the user is supported by the display of operating instructions in the form of smiley icons, which is supplemented by an LED status display on the sensor. This is intended to prevent operating errors, which can lead to implausible measurement results. The design decision to install only a small number of control buttons and not to implement any nested user menus serves to ensure that the devices can be operated easily and safely even during discontinuous use as well as when used by other users.  The measuring instruments have an electrode wear indicator, a measuring stability indicator on the instrument and sensor, a locking function to "save" the currently measured value on the display, free naming of the measuring point (8 characters), automatic calibration functions, integrated sensor holders, self-diagnosis function, as well as GLP functions. The fold-out stand on the back of the instruments means that you always have your hands free to carry out your measurements easily and safely. Measurement data can be conveniently transferred to your computer or cell phone via USB or WiFi.All handheld meters of the 300 series are delivered in a reinforced measuring case for mobile use in the open air. This provides space for the meter, for electrodes and cables, for up to eight 60 ml bottles of buffer solutions including an integrated buffer solution bottle holder for easier calibration. Particularly noteworthy is the automatic sensor recognition of the instrument through the use of sensor cables with integrated digital sensor recording. Information about the sensor, calibration data as well as measurement settings are stored in the sensor recording and transmitted to the measuring instrument. In addition, calibration of all connected sensors is possible at the same time, since each sensor head independently stores the measurement and calibration data and transmits it to the WQ300 series measuring device.Optionally, there is the possibility to connect and use analog sensors via the Horiba BNC sensor adapter with the device, please contact us for this.Languages:GermanEnglishFrenchSpanishPortugueseChineseScope of delivery:WQ-300 series handheld meter in a carrying casethe digital electrode you have chosen, if applicable, and the corresponding sensor-specific cable with integrated digital sensor receptaclemanualManufacturer article number single measuring device WQ-330-K 3 channel: 3200832607 Note: Chloride sensor, if selected, is supplied without chloride ion strength regulator and chloride electrode filling solution. This must be procured by the customer. Without the filling solution the sensor can´t be used.

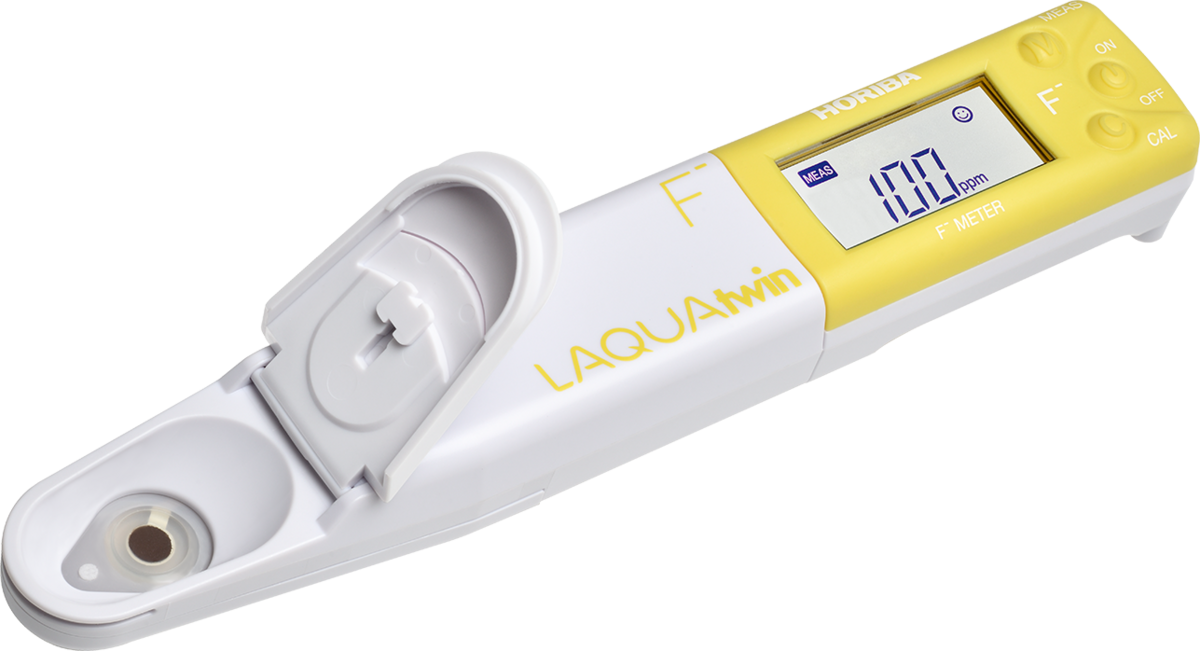

Manufacturer Part No. 3200934412 LAQUAtwin F-11: The world's first pocket-sized fluoride ion analyser Your mobile laboratory - for on-site use HORIBA's unique compact meter integrates electrode, display and sample container to enable simple, effective on-site testing by direct measurement with a single drop. Revolutionary fluoride ion analysis: Be part of history with the world's first and only pocket-sized fluoride ion analyser. Measurement capabilities for microsamples: The interchangeable sensor with a lanthanum trifluoride crystal enables measurements in samples as small as 0.3 ml (or 0.1 ml with a sampling sheet). Comprehensive measurement range: With a measurement range of 0.1 to 990 ppm or mg/L, the meter provides accurate fluoride ion readings. Unrivalled accuracy: With an accuracy of 2 % of the actual value, the meter ensures reliable results for your analyses. Convenient two-point auto-calibration: Achieve accuracy with two-point calibration as the meter automatically recognises and calibrates the 1 ppm and 10 ppm fluoride ion standard solutions included in the kit. You can adjust the calibration with other standard solutions that differ in concentration by a factor of ten. Multiplying compensation function: Taking into account the sample dilution in the measured value, the meter has a multiplying compensation function to calculate the correct concentration. Auto Stable & Auto Hold measurement modes: To assist users in recording stable readings, the meter displays a smiley face and can freeze the reading. Temperature Calibration: The meter displays temperatures up to 50.0°C and allows for temperature correction through its calibration function. IP67 rating: Water and dustproof meter with digital LCD display and backlighting Complete package for fluoride ion testing on the go: Each F-11 meter comes with 1ppm and 10ppm fluoride ion standard solutions (14ml each), TISAB solution (14ml), 5ml plastic cup, batteries, syringe and 5 sampling sheets.
