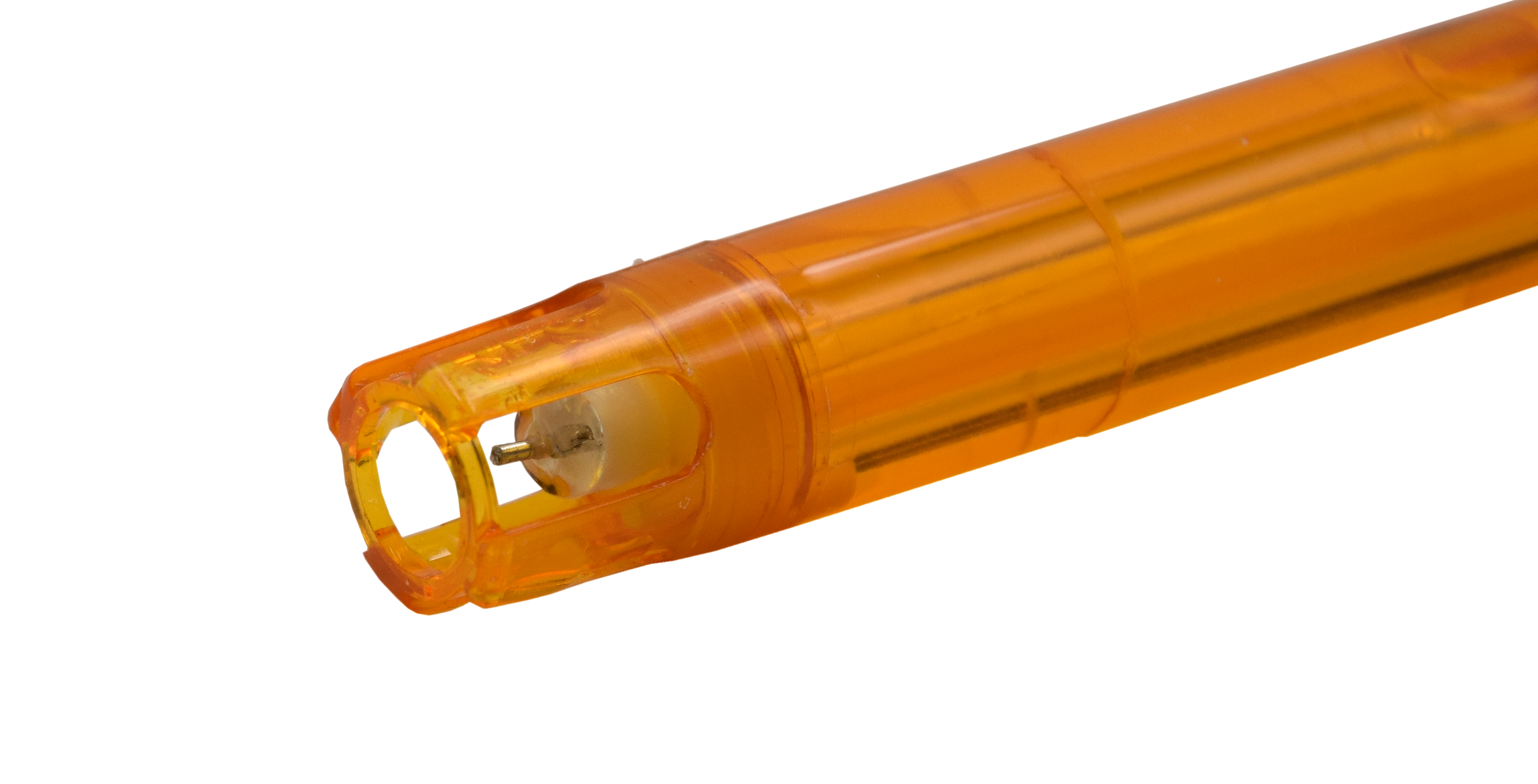

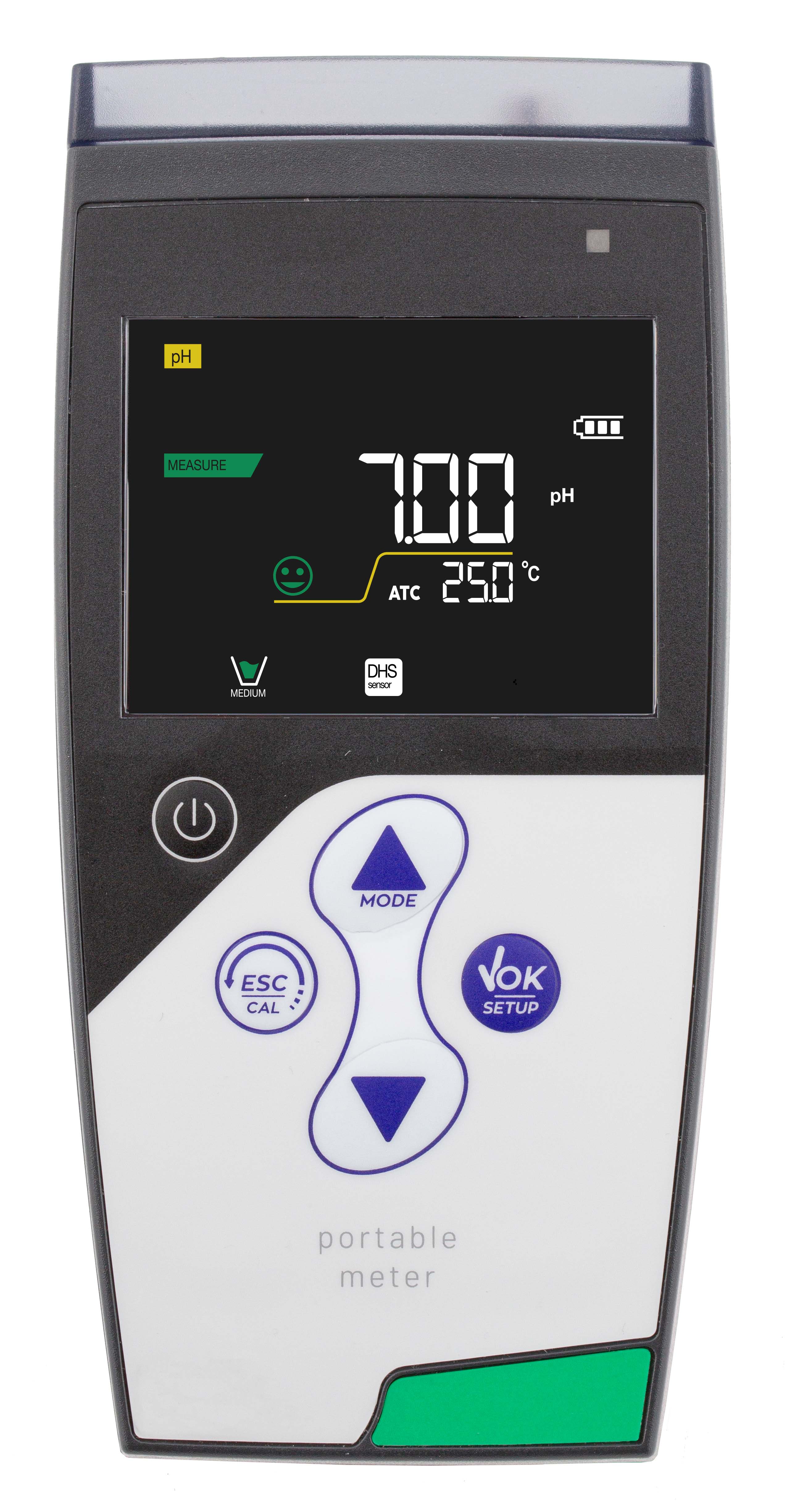

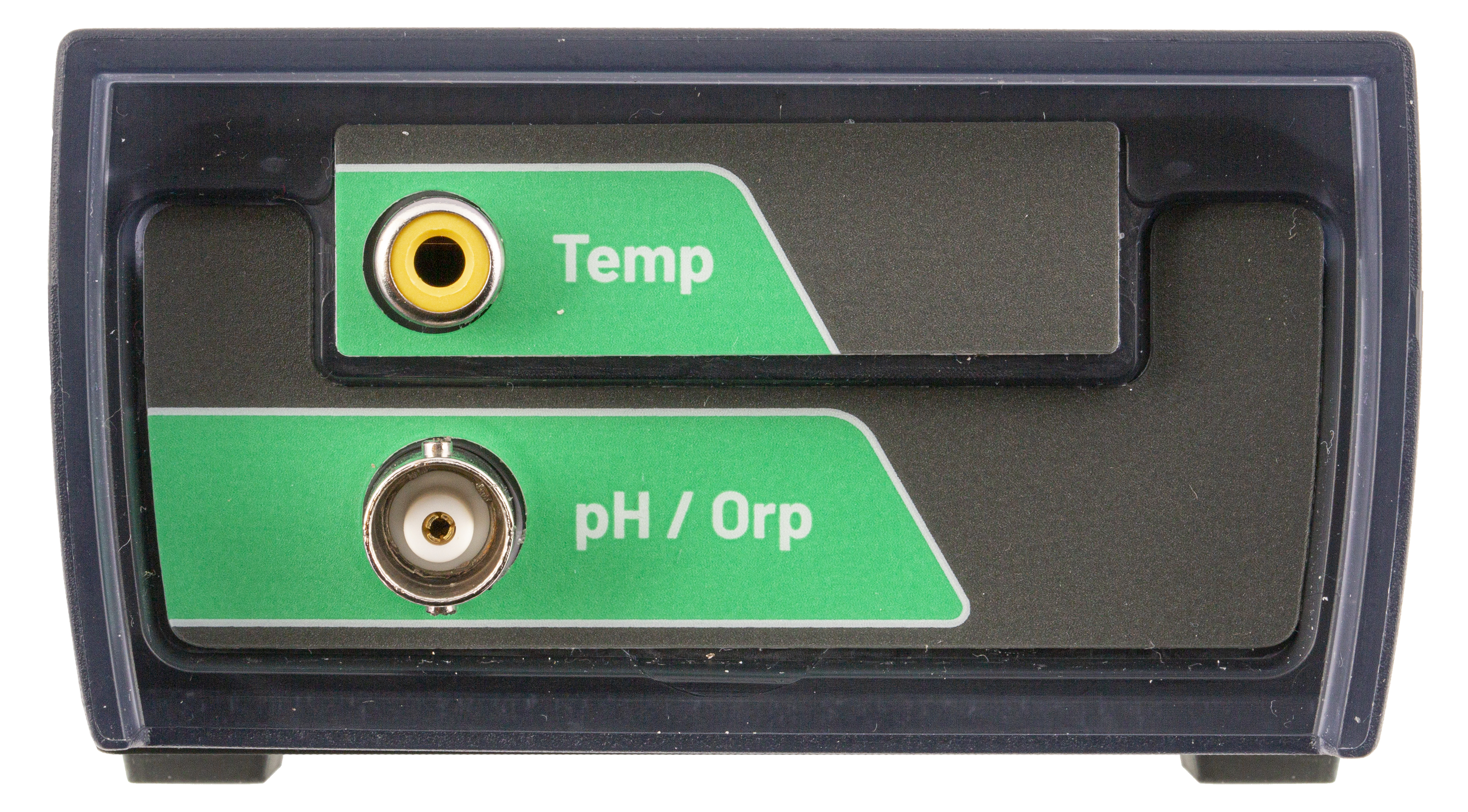

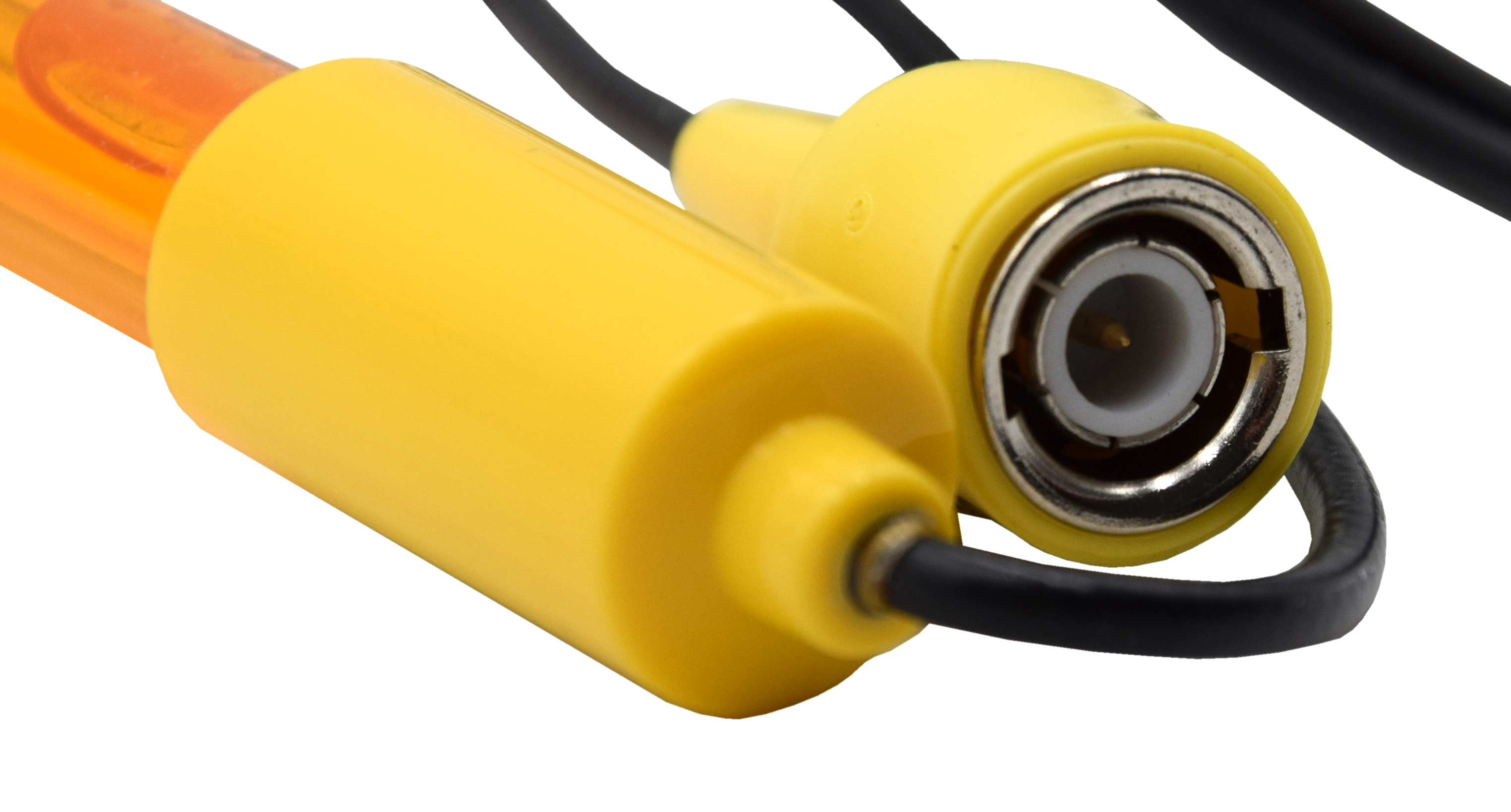

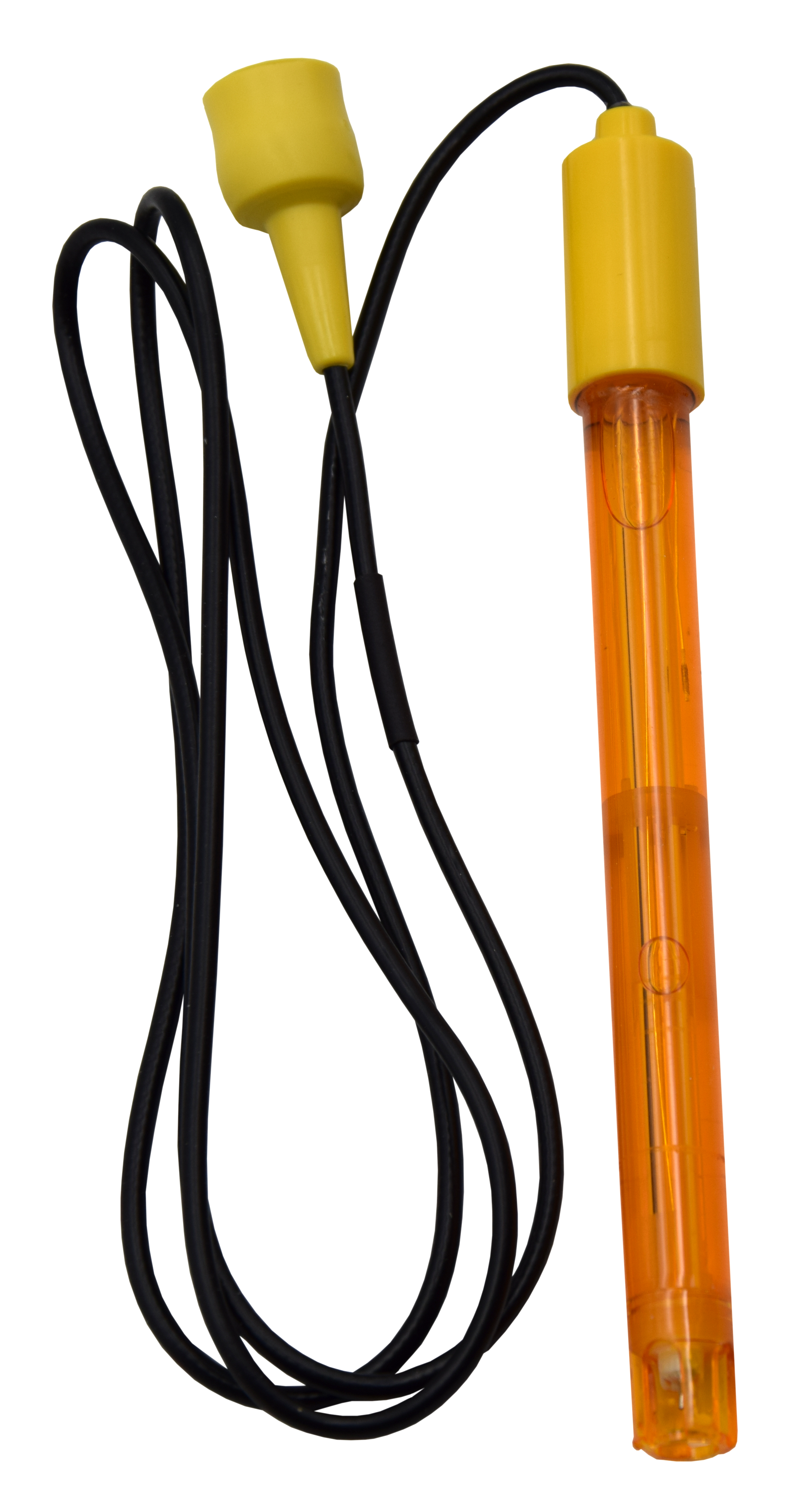

XS ORP 7 Vio portable ORP meter with ORP electrode with separate external temperature sensor
Product number: 895627
€390.00*
Please log in to receive your conditions.
Available in 7 days, delivery time 1-2 days
Product number:
895627
GTIN:
4260682382801
Measurement parameters:
pH value, mV, ORP and temperature
Offer as PDF
Login for addressed offer The entered number of pieces will be taken into account when creating the offer.
Login for addressed offer The entered number of pieces will be taken into account when creating the offer.
Product information "XS ORP 7 Vio portable ORP meter with ORP electrode with separate external temperature sensor"
The high quality XS Instruments portable multi-parameter meters of the Vio 7 and Vio 70 series with innovative high-resolution colour display are suitable for working in all conditions and offer easy handling through an integrated user-friendly operator guide in the form of the set-up and calibration mode. This allows the user to operate the instruments easily and intuitively.
The XS Instruments meters feature automatic pH calibration with USA and NIST buffers with up to three points for pH and one point for ORP. The user is supported by intuitive symbols on the backlit screen, including display of the measurement stability (adjustable) and any errors. Another plus point is that the multi-parameter meter is supplied in a professional measuring case, which contains the selected measuring electrode, as well as the appropriate buffer solutions and instructions.
Complementary advantages of the 70 Vio version:
- GLP functions: Date and time, recall of calibration data and "Calibration due" function
- Integrated data logger for up to 1000 data, automatic and manual
- PC connection via USB for evaluation of measurement data (Micro-USB on the instrument side) via Data Link+ software
- Automatic brightness control of the display (prolongs battery life)
- Only 6 keys for easy control of all functions of the unit
- 230V power supply unit
Manufacturer article number: 50119012
Dimensions
Weight
Other attributes
| Applications | Pools, Wine |
|---|---|
| Brand | XS Instruments |
| Country of origin | IT |
| Customs tariff number | 90278930 |
| Parameter | Combined Multiparameter, ORP |
| Quality | Professional |
Technical data
pH
Measuring range: 0 … 14.00
(70 Vio-Version: -2.00 … 16.00)
Resolution / Accuracy: 0.1
(70 Vio-Version: 0.01 / +0.02)
Calibration points: 1...3 automatic + 2 custom
Recognized buffers: USA, NIST
DHS sensor recognition: Yes
mV
Measuring range: -1000 … +1000
(70 Vio-Version: -1000 … +1900)
Resolution: 1
(70 Vio-Version: 0.1 / 1)
ORP
Calibration points: 1 point = 475 mV
Temperature:
Measuring range 0.0 … 100.0 °C
(70 Vio-Version: -10.0 … 110.0 °C)
Resolution / Accuracy: 0.1 / ± 0.5°C
Temperature compensation: 0.0 … 100.0 °C
General:
GLP: yes (only 70 Vio-Version)
Calibration due: yes (only 70 Vio-Version)
Buffer indication: Yes
Calibration report: Yes
Stability filter: Low – Nor - High
Internal memory: yes 1000 Data (only 70 Vio-Version)
Display: High definition backligt colored LCD
Brightness settings: Manual
(70 Vio-Version: automatic or manual)
IP protection: IP 57
Output: Micro USB (only 70 Vio-Version)
Power: 3 batteries AA 1,5 V
(70 Vio-Version: additional 5 V power supply)
Working conditions: T= 0 … +45 °C / H = < 95 %
Dimensions / Weight (device): 185 x 85 x 45 mm / 400 g
