Uses a glass membrane highly sensitive to lowconductivity water and nonaqueous solvents. Can also be used for ordinary pH measurement.
Manufacturer article number: 3014093084 (1076A-10C)
Suitable for measurements of liquid other than normal aqueous solutions, such as suspensions, emulsions, paste, and non-aqueous solutions. When the potassium chloride solution of the internal solution reacts with the sample, measurements can be stably carried out by filling the sample or any other chloride solution in the external jacket. The replacement of the internal solution and the cleaning of the liquid junction can be carried out easily.
Manufacturer article number: 3014080436 (2565A-10T)
Measuring range:
pH: 0 to 14 | Temperature: 0 to 60°C
|
Measurement parameters:
pH | Temperature
Manufacturer number: 3014081107This refillable pH electrode can measure samples in very slender test tubes (e.g., NMR test tubes) due to its long, thin, glass-body.Waterproof
The liquid junction of this glass-body, refillable pH electrode is located on the flat pH sensing membrane. Perfect for measuring samples in shallow containers (e.g., petri dishes) and gelatinous samples (e.g., nutrient agar). For pH measurement of meat, skin, leather, paper, leaves and cloth.
Manufacturer article number:3014081807 (6261-10C)
Measuring range:
pH: 0 to 14 | Temperature: 0 to 60°C
|
Measurement parameters:
pH | Temperature
Manufacturer number: 3014079136This glass-body, refillable pH electrode with temperature sensor has a sleeve junction for improved stability and repeatability. Ideal for highly accurate pH measurement.
Measuring range:
pH: 0 to 14 | Temperature: 0 to 100°C
|
Measurement parameters:
pH | Temperature
Manufacturer number: 3200611623This glass-body, refillable pH electrode is recommended for a wide range of applications, including pH buffers and aqueous test solutions.Offers quick stability and drift reductionConstructed with responsive glass that is 10x stronger than JIS standardsThe dome-shaped tip provides strength in all directions, reducing damage concernsWaterproof, Pb-free glass
Measuring range:
pH: 0 to 14 | Temperature: 0 to 60°C
|
Measurement parameters:
pH | Temperature
Manufacturer number: 3200611627This glass-body, refillable pH electrode can measure samples as low as 50µL.Compatible with extremely small sample containers (e.g., microtubes)Temperature sensor is placed beside the bulb for quick responseWaterproof
This refillable pH electrode with integrated temperature sensor is ideal for testing samples in large containers and long test tubes (e.g., microbial culture fluids) due to its long, thin, glass-body.
Electrode: 251mm length, 7mm diameterConstructed with responsive glass that is 10x stronger than JIS standardsWaterproof, Pb-free glass
Manufacturer article number:3200611628 (9480-10C)
This glass-body, refillable pH electrode gives stable readings even in highly viscous samples and non-aqueous solutions (e.g., solvents, cosmetics, paints).
The liquid junction is designed with a movable sleeve that prevents clogging. Easy to clean and provides quick stable readingsWaterproof, Pb-free glass
Manufacturer article number:3200611631 (9481-10C)
Manufacturer Part Number: 3200585428This glass-body, refillable pH electrode with integrated temperature sensor is recommended for a wide range of applications, including pH buffers and aqueous test solutions.
Offers quick stability and drift reductionConstructed with responsive glass that is 10x stronger than JIS standardsThe dome-shaped tip provides strength in all directions, reducing damage concernsWaterproof, Pb-free glass
Measuring range:
pH: 0 to 14 |Temperature: 0 to 100°C
|
Measurement parameters:
pH | Temperature
Manufacturer number: 3200585447This refillable glass-body
pH electrode with temperature sensor can measure samples as low as 50µL.Compatible with extremely small sample containers (e.g., microtubes)Temperature sensor is placed beside the bulb for quick responseWaterproof

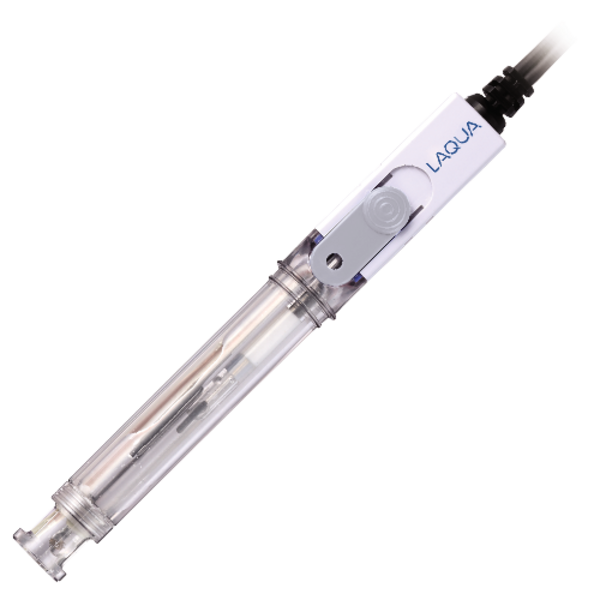

This refillable pH electrode with plastic housing and integrated temperature sensor is recommended for general use.
Cable length: 2 metres
Manufacturer article number: 3200393025 (9625-20D)
This refillable pH electrode with plastic housing and integrated temperature sensor is recommended for general use.
Cable length: 3 metres
Manufacturer article number: 3200393026 (9625-30D)
Measuring range:
pH: 0 to 14 | Temperature: 0 to 100 °C
|
Measurement parameters:
pH | Temperature
Manufacturer number: 3200528726This plastic-body, refillable pH electrode with integrated temperature sensor is recommended for pH measurement of samples that have low conductivity or buffering capacity. Suitable for tap water and quality control check in water purification plant. Recommended to use with cleaning solution 230.
Measuring range:
pH: 2 to 12 | Temperature: 0 to 60 °C
|
Measurement parameters:
pH | Temperature
Manufacturer number: 320052411This plastic-body, refillable pH electrode with integrated temperature sensor can measure 1% hydrofluoric acid solution (at 25°C, immersed for 1min) for about 1000X. Suitable for drain water measurement after etching process.
This plastic-body, refillable pH electrode with integrated temperature sensor has higher resistance and longer stability than conventional electrodes. The alkali-resistant glass membrane is suitable for strong alkali samples such as plating solutions.
Manufacturer article number: 3200524120 (9632-10D)
This plastic-body, gel-filled pH electrode with integrated temperature sensor is ideal for field testing. The body is durable and no need to refill the electrode.
Manufacturer article number:3200642020 (9651-10D)
The Horiba 9652-10D pH electrode with double diaphragm is a durable, gel-filled glass electrode in a robust plastic housing, specially developed for mobile use with handheld measuring devices from the LAQUA 200 series. It covers a measuring range from 0 to 14 pH and guarantees reliable results in a temperature range from 0 to 80 °C. The combination of a double diaphragm (double junction) and a porous, sintered polyethylene contact ensures stable measuring performance even under demanding conditions. An integrated temperature sensor enables accurate, temperature-compensated pH measurements. Thanks to its gel filling, the electrode is virtually maintenance-free and does not require refilling of the electrolyte solution. Manufacturer item number: 3200786359
The Horiba 9652-20D pH electrode with double diaphragm is a gel-filled pH glass electrode in a robust plastic housing, ideal for outdoor use in conjunction with handheld measuring devices from the LAQUA 200 series. It offers a measuring range from 0 to 14 pH and works reliably in a temperature range from 0 to 80 °C. Thanks to the double diaphragm (double junction) and the porous, sintered polyethylene liquid contact, it ensures high measurement stability. An integrated temperature sensor ensures precise, temperature-compensated measurements. The electrode is low-maintenance as it is gel-filled and does not need to be refilled.
Manufacturer Part Nr.
3200786361
