Milwaukee MW605 MAX Waterproof Galvanic Dissolved Oxygen Meter With Automatic Calibration
Product number: 896144
€599.70*
Please log in to receive your conditions.
Available in 14 days, delivery time 1-2 days
Product number:
896144
GTIN:
4068823012651
Measurement parameters:
Dissolved Oxygen | Temperature
Measuring range:
0.0 to 45,00 mg/L (ppm) O2 | % Saturation O2 0.0 to 300.0% | Temp. -20.0 to 120.0°C / -4.0 to 248.0°F
Application:
Suitable for field biologists, educators, fish farmers, water treatment plants and laboratories
Offer as PDF
(Login for quotation) The entered number of pieces will be taken into account when creating the offer.
(Login for quotation) The entered number of pieces will be taken into account when creating the offer.
Product information "Milwaukee MW605 MAX Waterproof Galvanic Dissolved Oxygen Meter With Automatic Calibration"

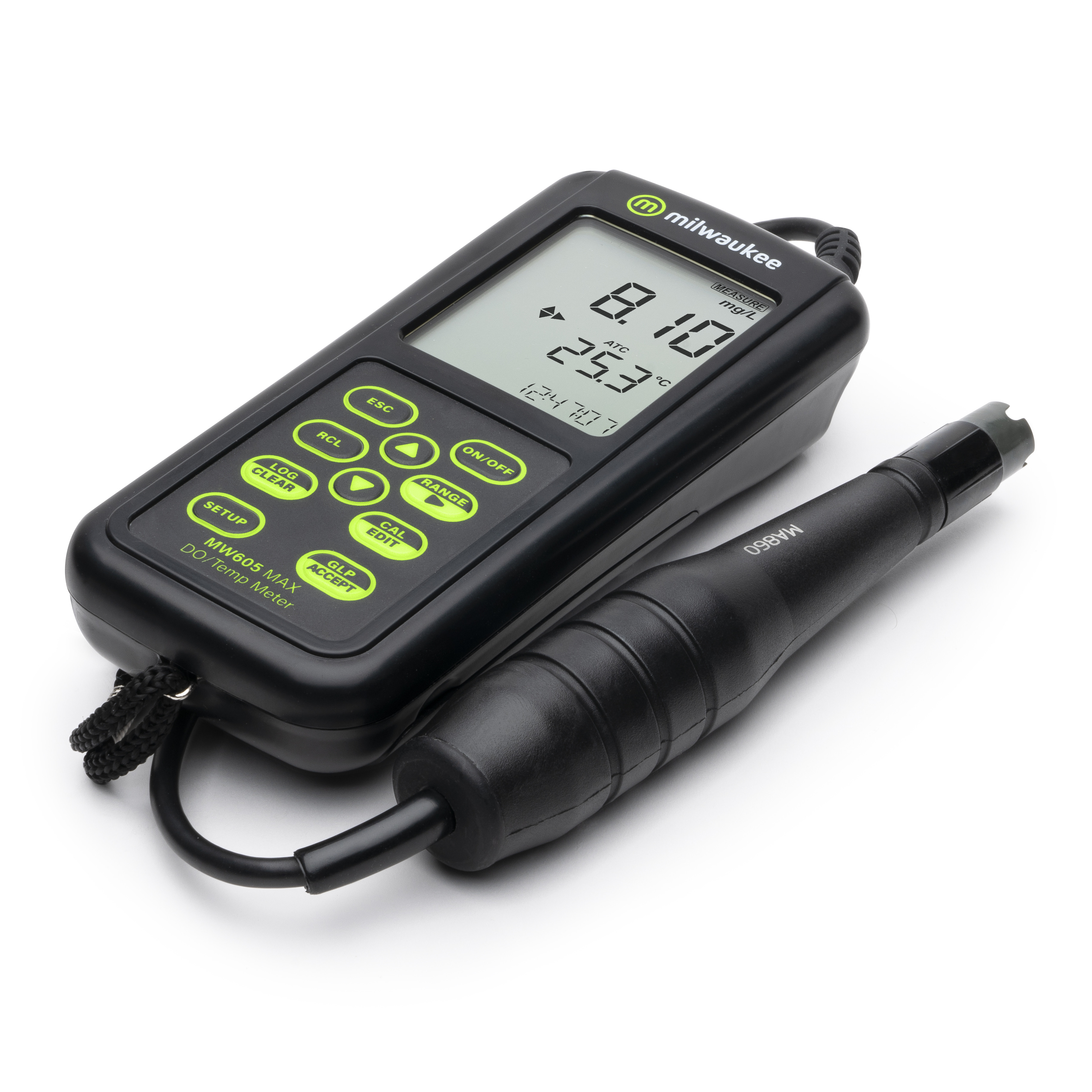

The Milwaukee MW605 MAX Galvanic Portable Waterproof Dissolved Oxygen meter is one of Milwaukee's most popular meters with its reliable and fast operation as well as its accuracy.
The Milwaukee MW605 MAX DO Meter is preferred by people looking for lab level accuracy without the cost.
The Milwaukee DO Meter is popular with everyone from field biologists, educators, fish farmers, water treatement plants and labs.
DESIGN FEATURES
- Fast, easy-to-read results with large digital LCD readout
- Galvanic probe means no conditioning time
- Repeatable, accuracy to ±1.5% of reading
- Water Proof IP 67 rated
- Lightweight and portable
- Simple 1 or 2 % saturation calibration points at 100% (water saturated air) and 0% (zero oxygen solution)
- Dedicated GLP key to store and recall data on system status
- Available log space for up to 1000 records
- Logged data export via USB cable
- Altitude and Salinity compensation
- Automatic temperature compensation °F & °C
- Uses MA860 (included) reinforced Galvanic probe with an oxygen-permeable polytetrafluroethylene (PTFE) membrane sensor

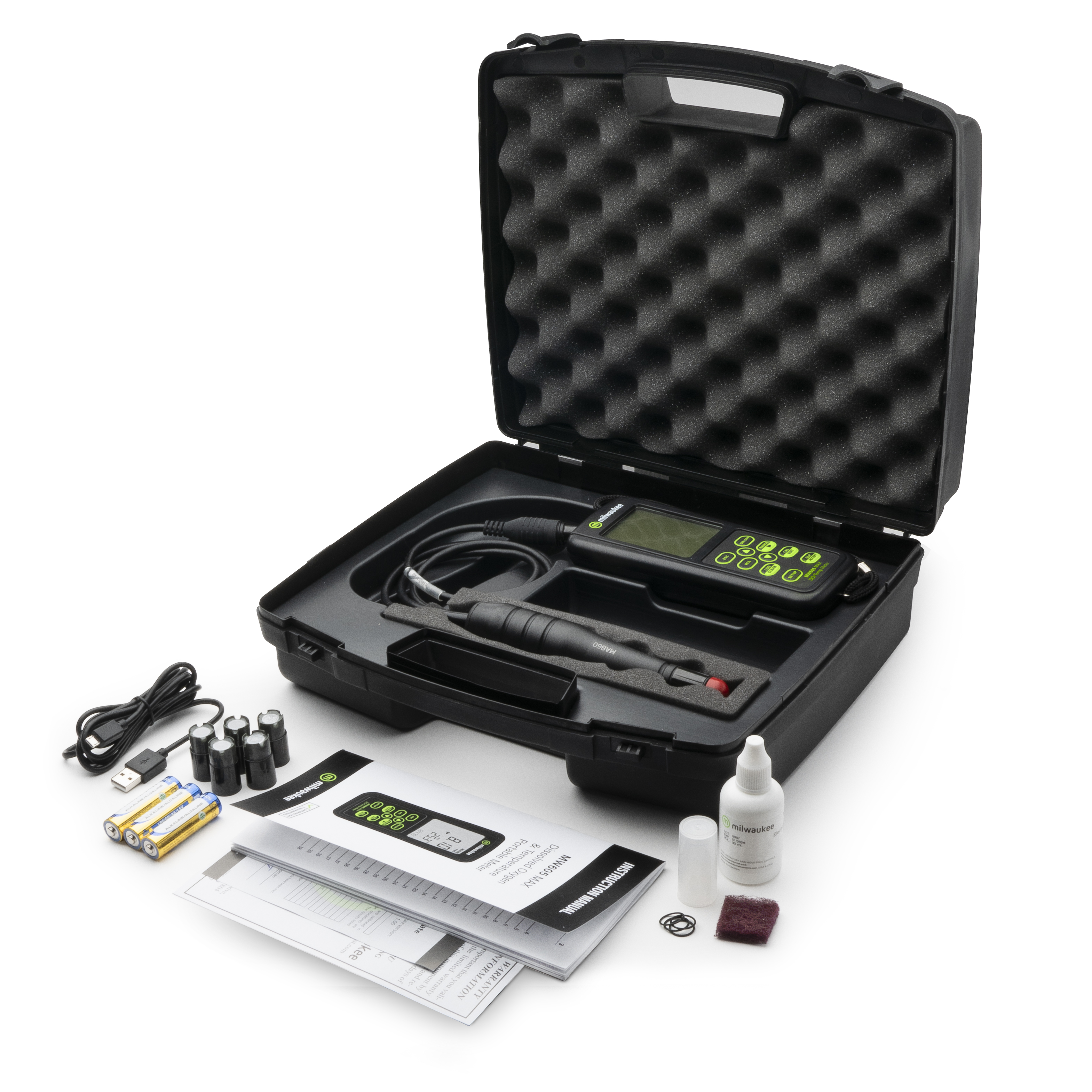

- 2x O-rings, membranes and one protective cap included
- 3m probe cable for extra flexibility when testing
- 3 x 1.5 volt akaline AA battery (battery included) approx. 200 hours of battery life with continuous use with low battery warning
Dimensions
| Height | 12 cm |
|---|---|
| Length | 31 cm |
| Width | 28 cm |
Weight
| Weight | 1,61 kg |
|---|
Other attributes
| Applications | Laboratory, Water Treatment |
|---|---|
| Brand | Milwaukee |
| Parameter | Oxygen |
Technical specifications
O2 Range*: 0.0 to 45.00 mg/L (ppm)
O2 Range: 0.0 to 300.0 % Saturation
Range Temperature**: -20.0 to 120.0 °C (-4.0 to 248.0 °F)
O2Resolution: 0.01 mg/L (ppm) / 0.1 % Saturation
Temperature Resolution: 0.1 °C (0.1 °F)
O2 Accuracy: ±1.5% of reading ± 1 digit
Temperature Accuracy: ± 0.4°C (±0.8°F)
Calibration: One or Two % saturation calibration points 0 % (MA9070) and 100 % (water saturated air)
Temperature Compensation: Automatic, from 0.0 to 50.0°C (32.0 to 122.0 °F)
Altitude compensation: -500 to 4,000 m (-1,640' to 13,123') with 100 m (328') resolution
Salinity Compensation: Manual, from 0 to 40 g/L ( with 1 g/L resolution)
Logging/Memory: Max. 1,000 log records (stored in up to 100 lots) / On Demand, 200 logs / On Stability, 200 logs / Interval logging, 1,000 logs
PC Connectivity: 1 micro USB port
Battery Type: 3 x 1.5V alkaline AA (included)
Battery Life: Approx. 200 hours of use
Environment: 0 to 50°C / 32 to 122°F; max RH 95%
Dimensions Meter: 200 x 85 x 50 mm
Dimensions Packaging: 355.6 x 304.8 x 152.4 mm
Weight Meter: 260g
Weight Packaged: 2.27 kg
Probe MA860:
Galvanic Probe included
Temperature Range: 0.0 to 50.0°C / 32.0 to 122.0°F
Temperature Sensor: Built in Thermistor
Cathode: Silver
Anode: Zinc
Membranes: Oxygen permeable PTFE (2) included

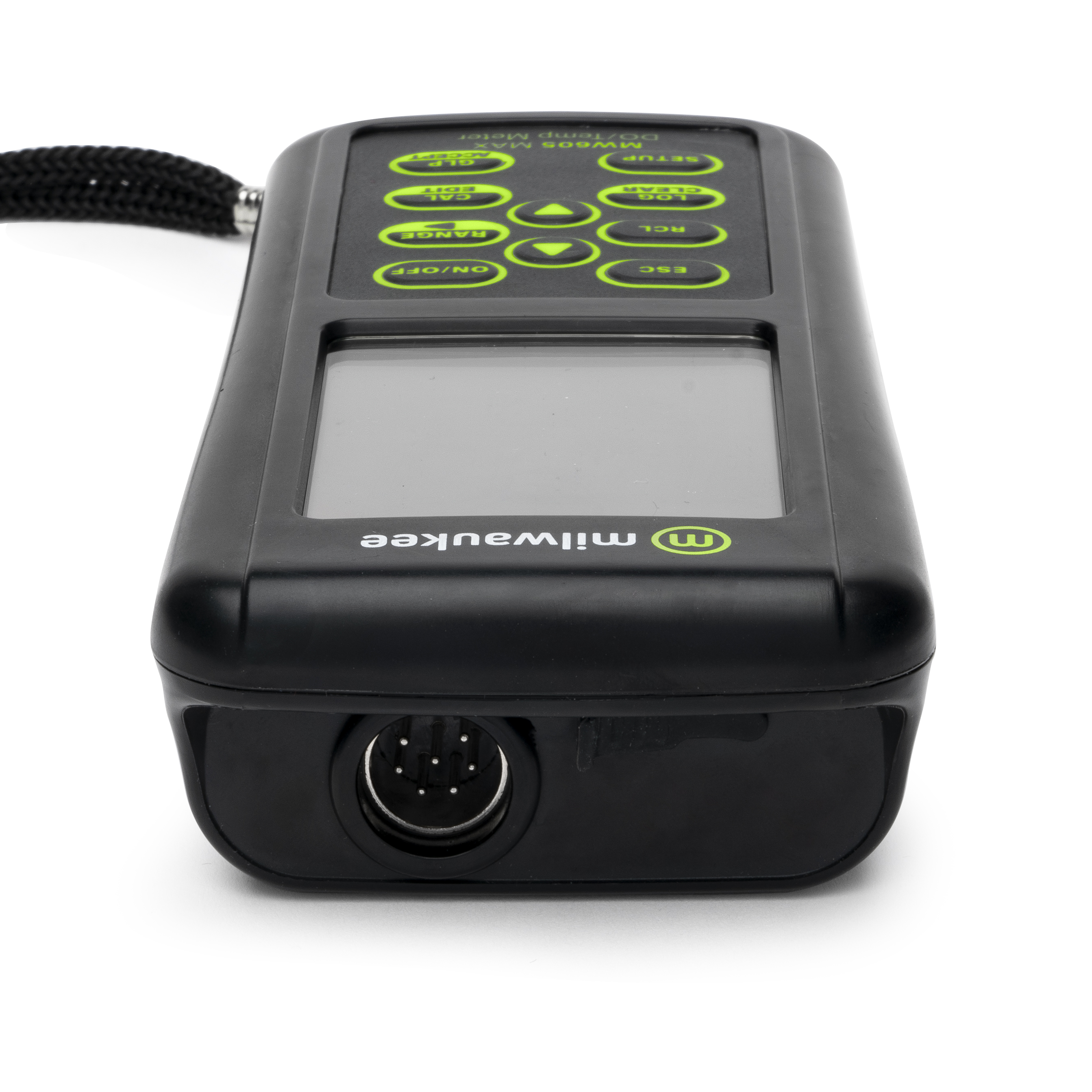

Connector Socket: DIN 7pins
Body: PP, ABS, IP67 rating
* Do measurement is performed within automatic temperature compensation interval.
** Limits will be reduced to actual sensor limits.
Skip product gallery
Ersatzteile und Zubehör

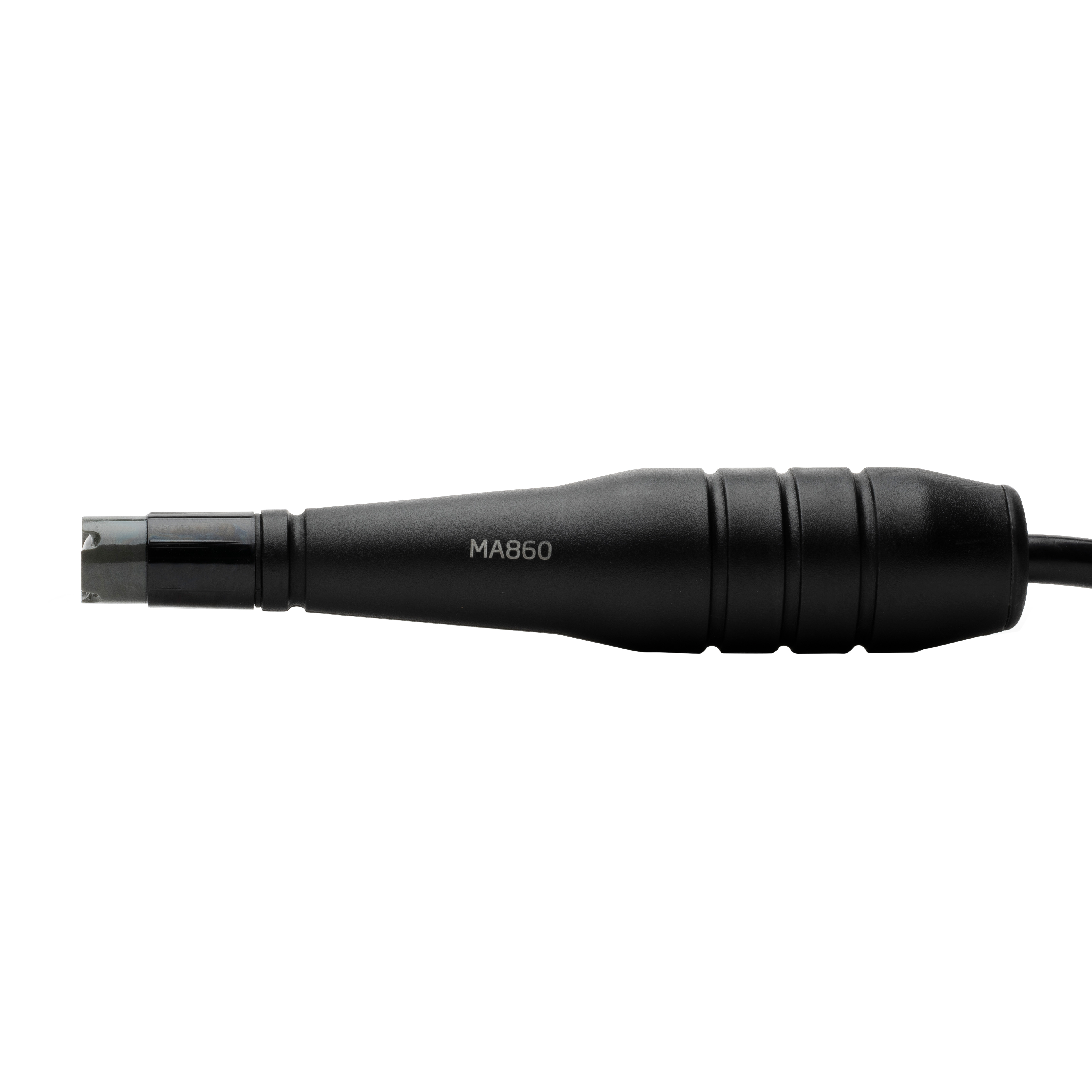

Milwaukee MA860 Galvanic Dissolved Oxygen Probe
Product number:
896142
The Milwaukee MA860 is a Galvanic replacement probe for the MW605 MAX Dissolved Oxygen meter.The refillable Galvanic probe has an oxygen-permeable polytetrafluroethylene (PTFE) membrane sensor for measuring dissolved oxygen (DO) levels in aqueous solutions and a built in temperature sensor.The probe uses a silver cathode and a zinc anode.The body is made of PP and ABS.DESIGN FEATURESReinforced plastic PP, ABS for durabilityBuilt in temperature sensor to achieve thermal equilibrium between the sensor and the sample for more accurate reading160 mm long with a tip that tapers from 1-1/2" to 3/4" in diameter3.0 m cable with a 7-pin DIN connector for attaching to the meter
€335.40*

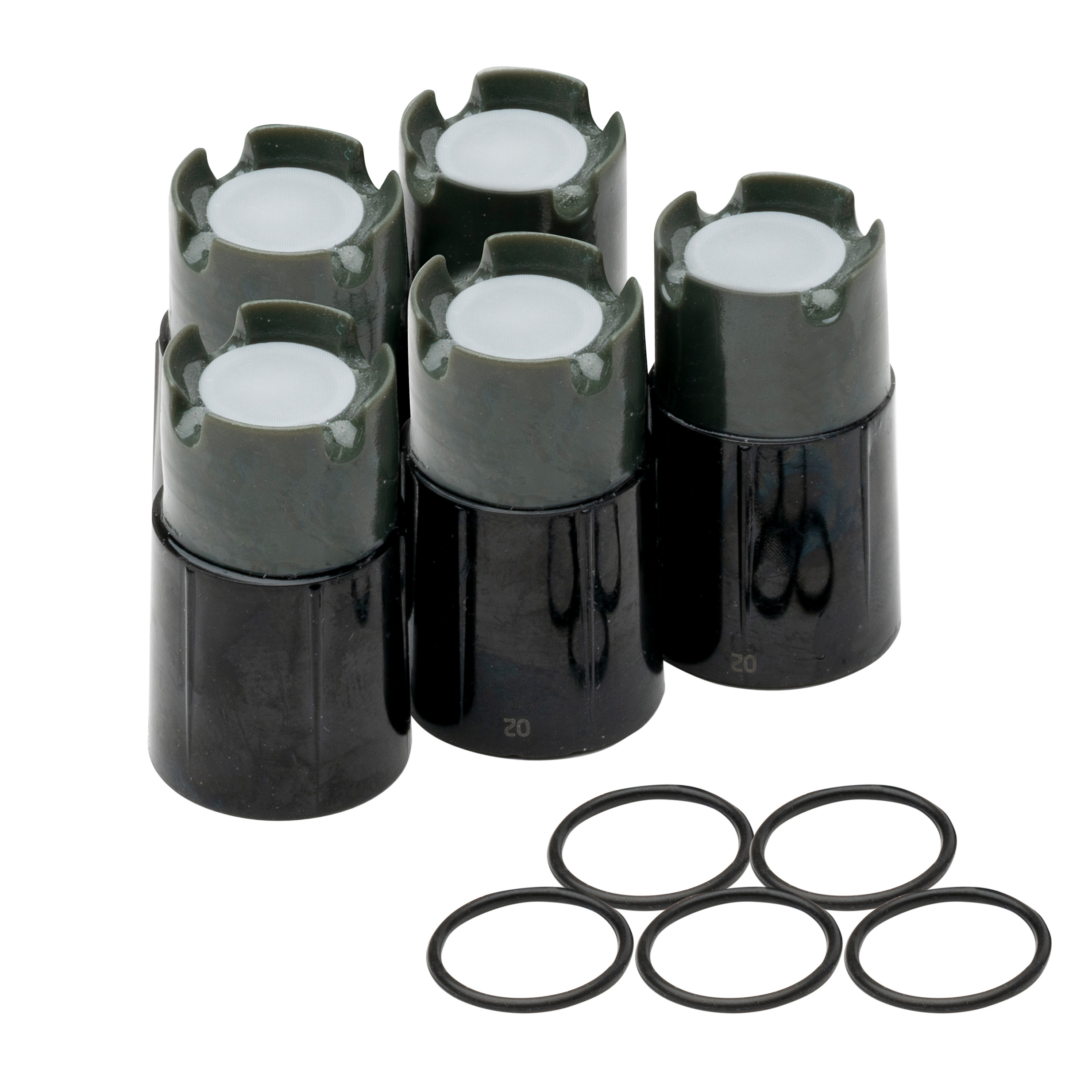

Milwaukee MA861 Spare Membrane for Dissolved Oxygen Probe MA860
Product number:
896141
The Milwaukee MA861 Dissolved Oxygen Membranes are compatible with the MA860 Galvanic Dissolved Oxygen Probe used on the MW605 MAX Dissolved Oxygen Meter.DESIGN FEATURESOxygen-permeable polytetrafluroethylene (PTFE) membrane sensorEasy to fill with MA9072S Oxygen Electrolyte SolutionIncludes membranes and 5x o-rings
€118.20*
