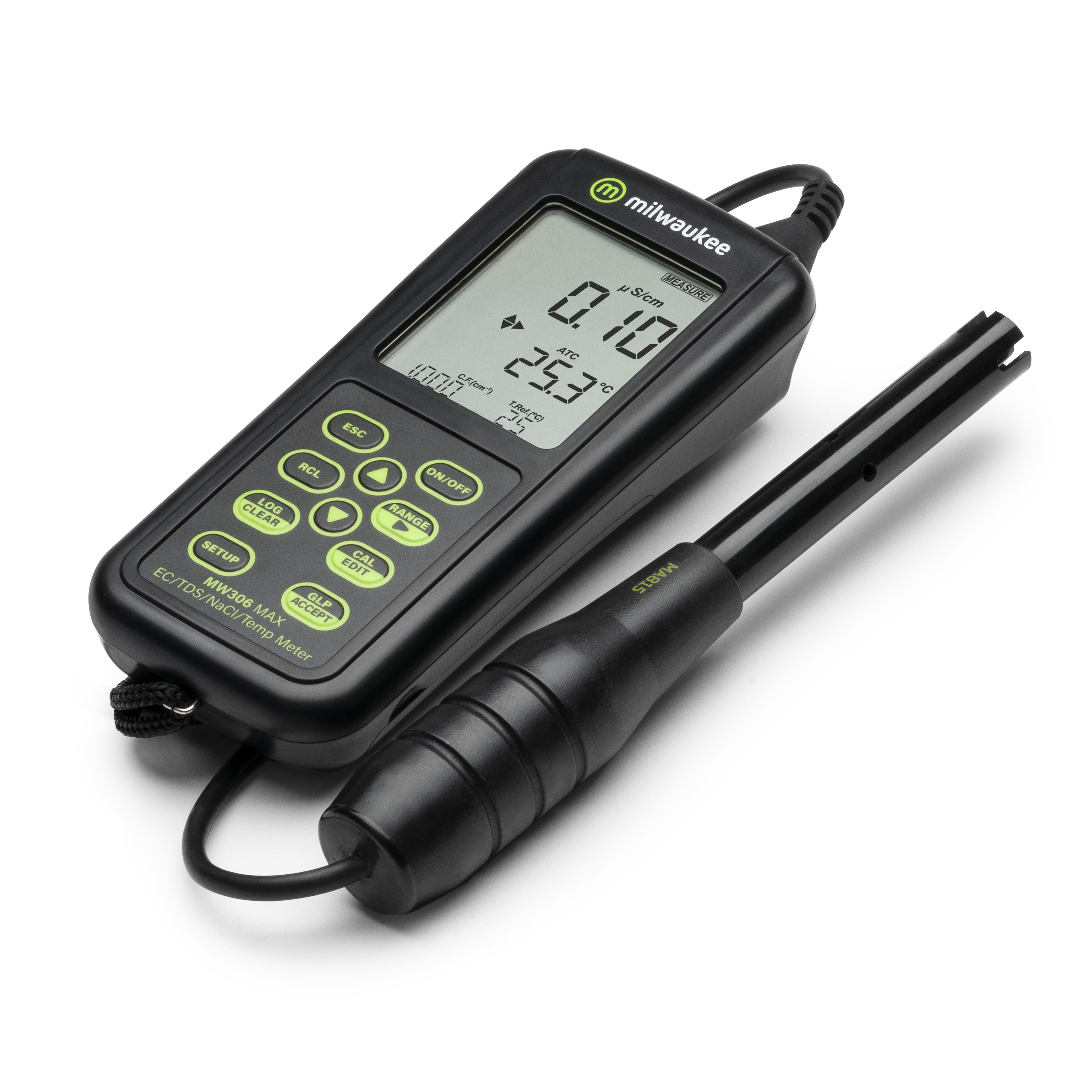

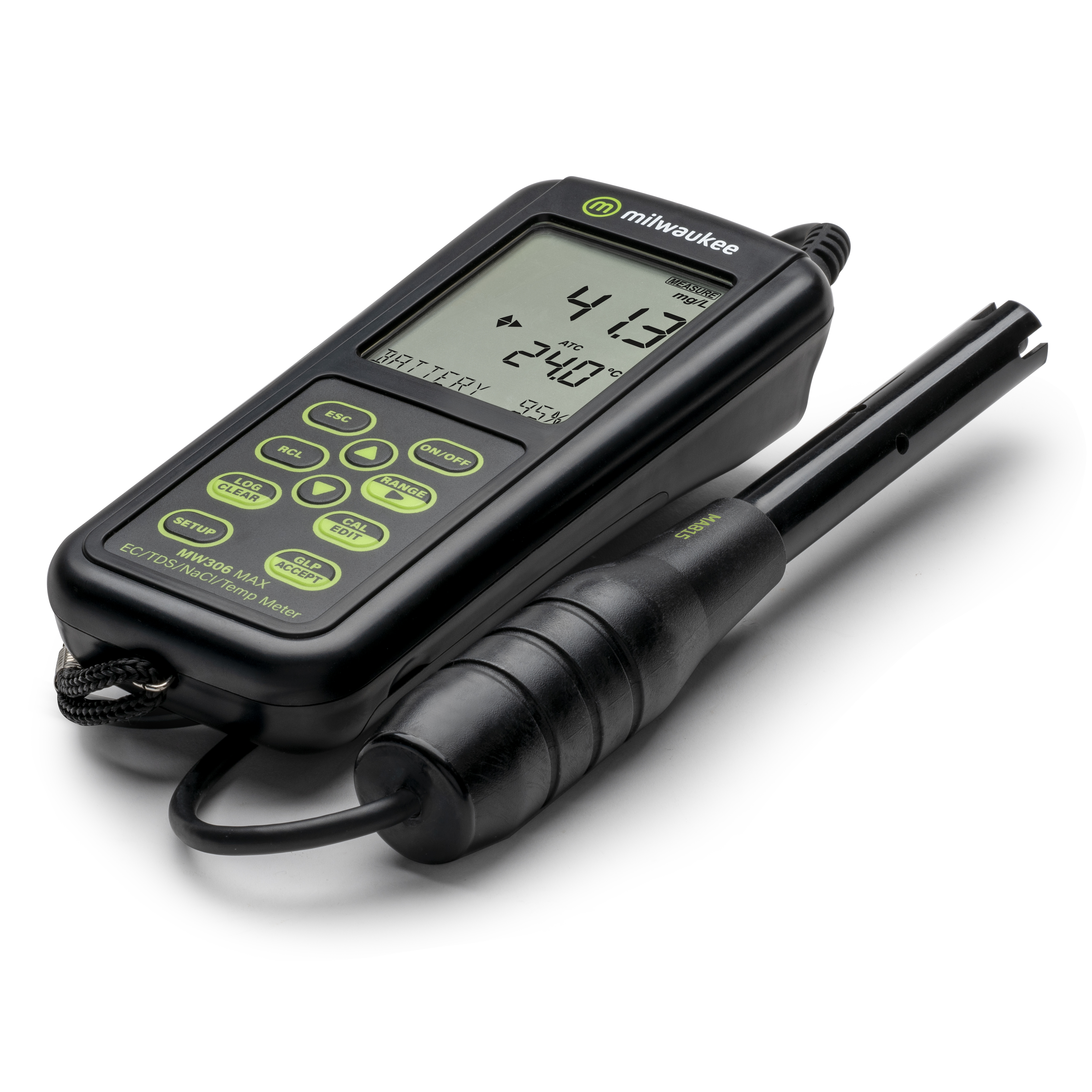

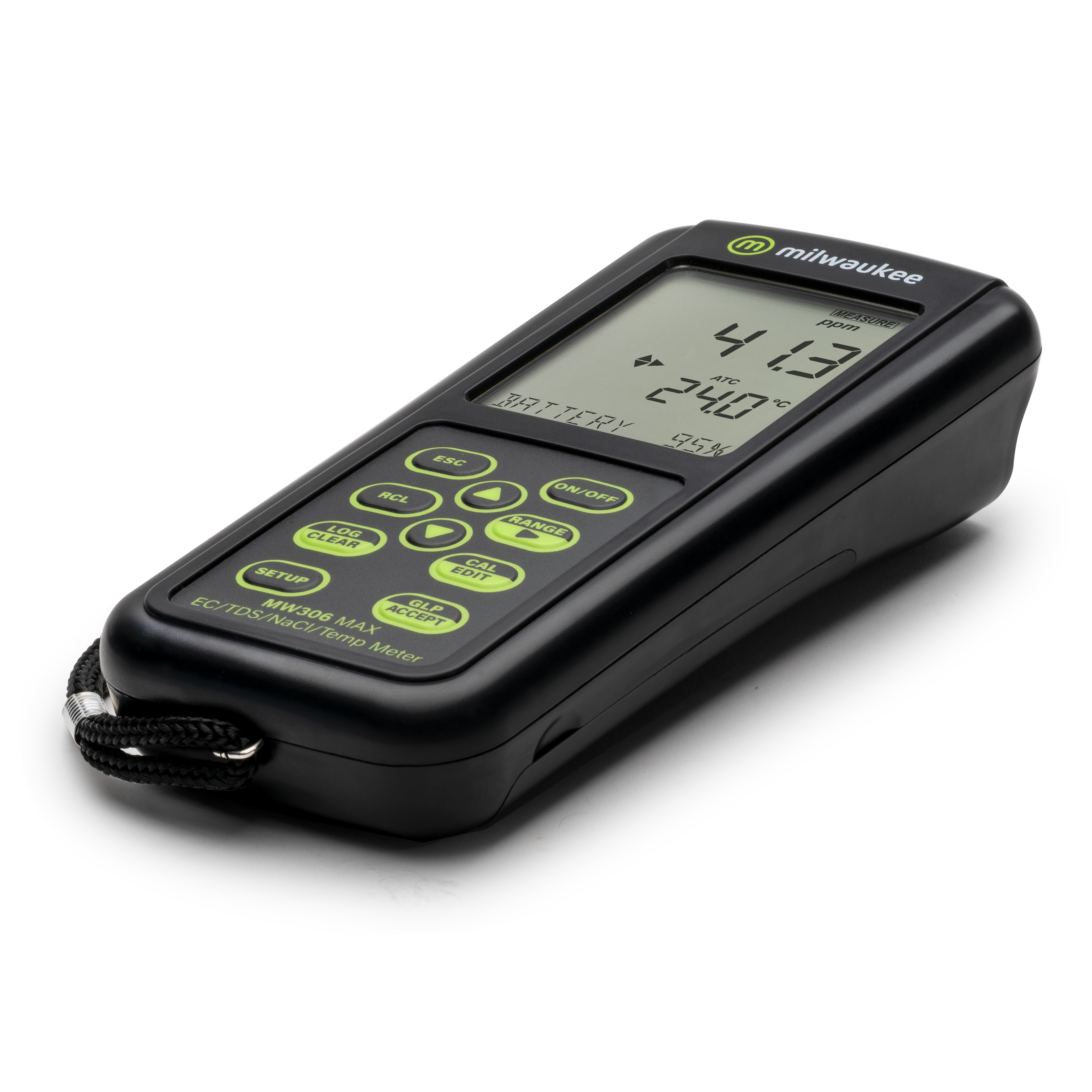

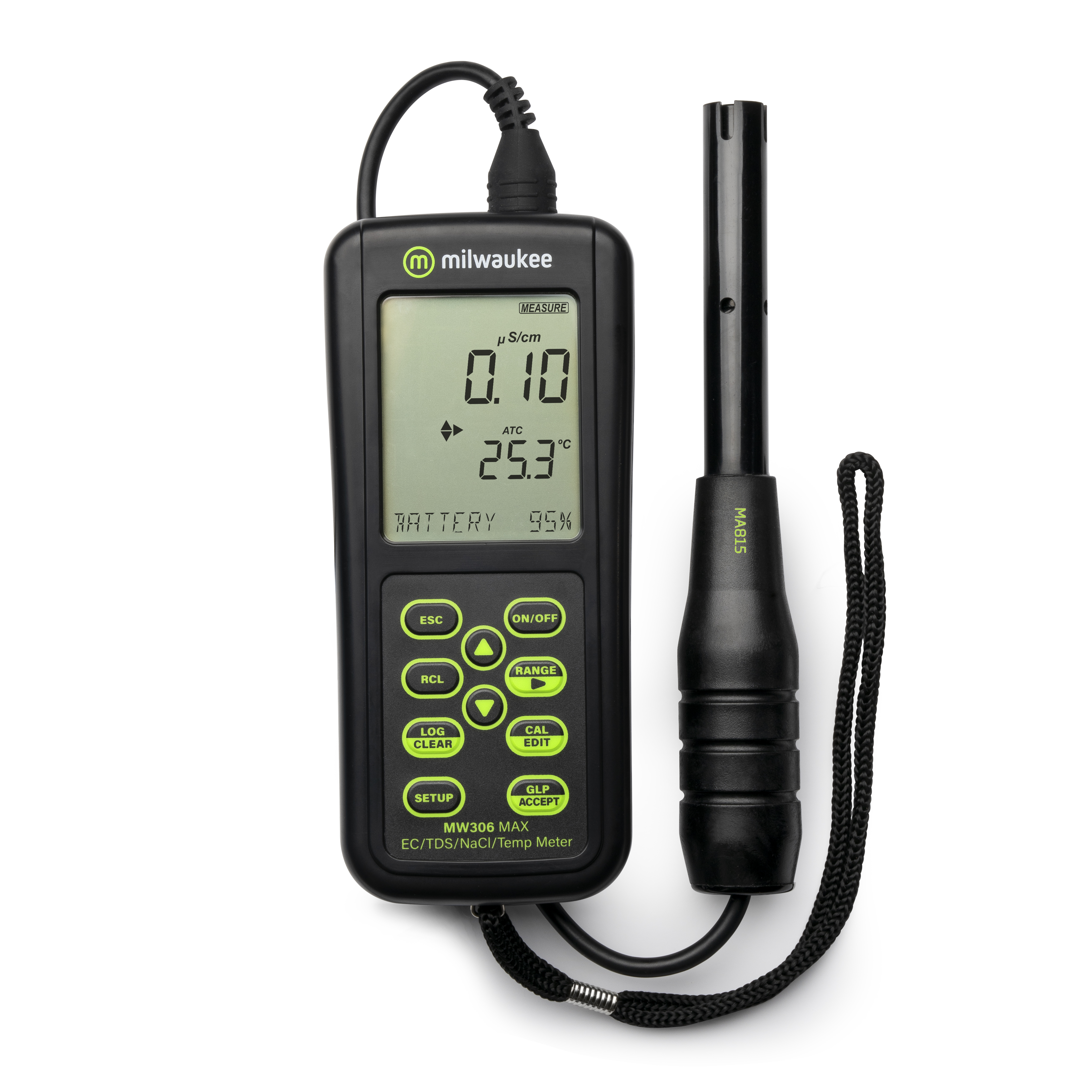

Milwaukee MW306 MAX, Automatic and logging EC/TDS/NaCl/Temperature meter.

Product number: 895564

Product information "Milwaukee MW306 MAX, Automatic and logging EC/TDS/NaCl/Temperature meter."

The portable 4-in-1 MW306 PRO conductivity/TDS/NaCl (salinity)/temperature meter has won many fans worldwide with its reliable fast and easy operation. It is also very rugged and has IP67 waterproof rating.

 It has a user-friendly interface for data exchange and as mentioned at the beginning, it is designed to measure four different parameters of water.
Ideal for use in hydroponics, horticulture, laboratories, food processing, water treatment and many other applications with demanding measurement requirements.

Dimensions

Height 11,5 cm
Length 30,5 cm
Width 28 cm

Weight

Weight 1,22 kg

Other attributes

Applications Food, Horticulture, Laboratory, Water Treatment
Brand Milwaukee
Country of origin RO
Customs tariff number 38221900
Parameter Combined Multiparameter, Conductivity and TDS, Salinity, Thermometers (°C)
Quality Advanced
Technical specifications
Electrical Conductivity
Measuring range:
0.00 to 29.99 uS/cm / 3.0 to 29.9 uS/cm
30.0 to 299.9 uS/cm / 300 to 2999 uS/cm
3.00 to 29.99 mS/cm / 30.0 to 200.0 mS/cm / up to 500.0 mS/cm, absolute conductivity*.
Resolution:
0.01 uS/cm / 0.1 uS/cm / 1 uS/cm
Sensor: MA815D/1, (4 ring)

TDS (total dissolved solids):
Measuring range:
0.00 to 14.99 ppm (mg/L)
15.0 to 149.9 ppm (mg/L) / 150 to 1499 ppm (mg/L)
1.50 to 14.99 g/L / 15.0 to 100.0 g/L / up to 400.0 g/L absolute TDS* (with factor 0.80)
Resolution:
0.01 ppm / 0.1 ppm / 1 ppm
0.01 g/L / 0.1 g/L
TDS factor: 0.40 to 0.80 / standard value: 0.50

Salinity:
Measuring range:
0.0 to 400.0 %NaCl / 2.00 to 42.00 PSU
0.00 to 80.00 g/L
Resolution: 0.1 % NaCl / 0.01 PSU / 0.01 g/L

Temperature:
Range: -20.0 to 120.00°C (-4.0 to 248.0°F)
Resolution: 0.1°C / 0.1°F
Temperature compensation: Automatic, -5.0 to 100.0°C (-23.0 to 212.0°F) or manual from -20 to 120°C (-4.0 to 248.0°F) or NO TC without temperature compensation
Conductivity temperature coefficient: 0.00 to 6.00 % / °C (EC and TDS only) | default: 1.90 % / °C
Temperature sensor: Built-in temperature sensor

Accuracy: (@ 25°C / 77°F)
EC: ±1 % of reading / ±0.05 uS/cm or 1 digit, whichever is greater
TDS: ±1 % of reading / ±0.03 ppm or 1 digit, whichever is greater
Salinity: ±1 % of reading
Temperature: ±0.5°C (±0.9°F)

Calibration
Conductivity/TDS: single cell factor calibration, 6 standards: 84 uS/cm, 1413 uS/cm, 5.00 mS/cm, 12.88 mS/cm, 80.0 mS/cm, 111.8 mS/cm / one point offset: 0.00 uS/cm
Salinity calibration: one point with MA9066 salinity calibration solution
Temperature calibration: no temperature calibration

Other data:
Recording: maximum 1,000 samples (max. 100 batches) / on demand, 200 samples; on stability, 200 samples / interval logging, 1000.

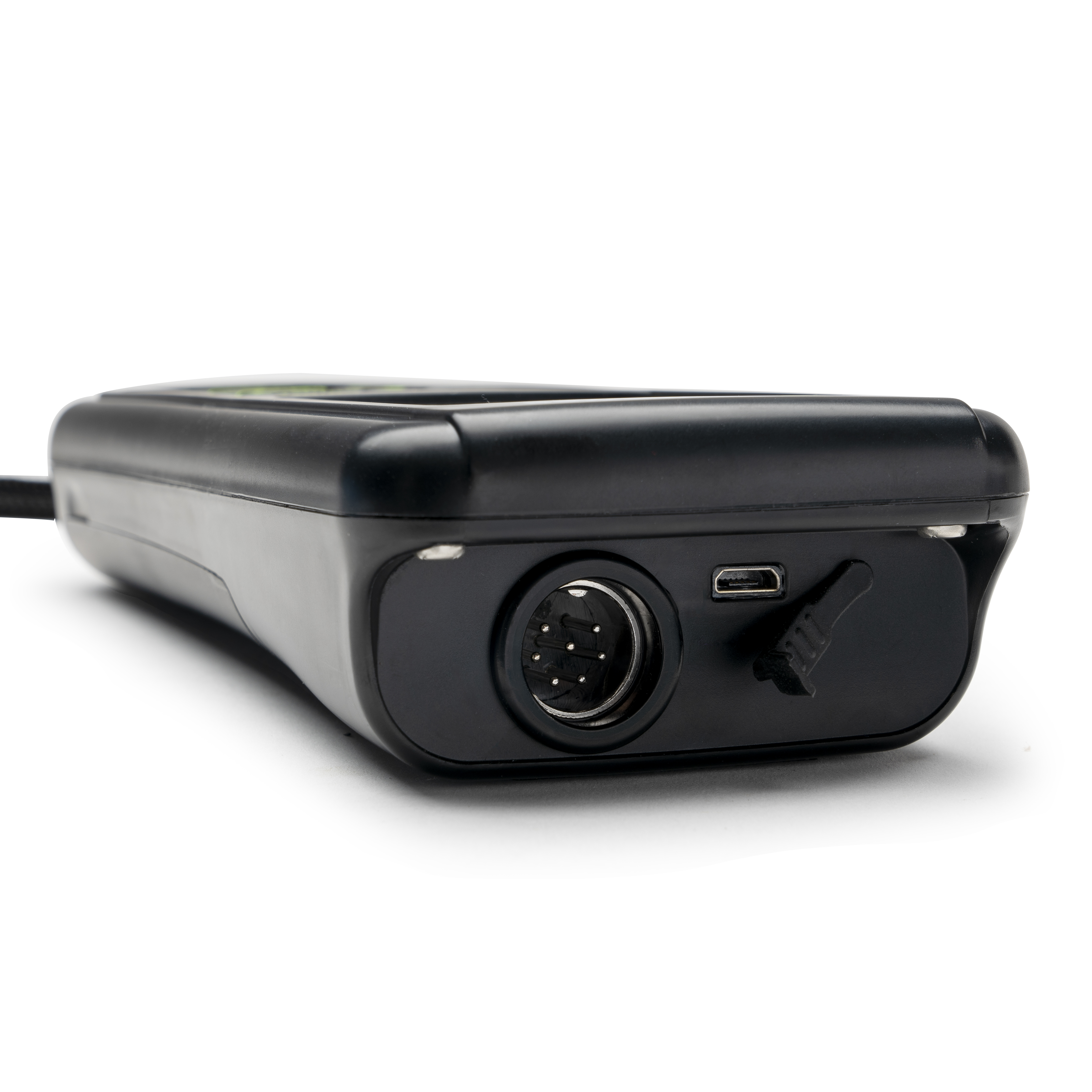

PC connectivity: 1 micro USB port
Battery type: 3 x 1.5 V alkaline AA (supplied)
Battery life: approx. 200 hours operating time
Auto power off: selectable 5, 10, 30, 60 min. or off
Environment: 0 to 50°C / 32 to 122°F; max. RH 95%
Dimensions: 305 x 280 x 115 mm (7.9 x 3.3 x 2.0 in.)
Housing: IP67 Weight: 1.22 kg (with battery)
Warranty: 2 years, meter

* Absolute conductivity (or TDS) is the conductivity value without temperature compensation
