Milwaukee MA884 Digital Brix/Potent Alcohol Refractometer

Article number: 895542
Our service hotline – We are here for you 📞 +49 (0) 5121 7609 99

Product information "Milwaukee MA884 Digital Brix/Potent Alcohol Refractometer"

Digital refractometer for determining Brix value and potential alcohol content in grape must and other sugary liquids. Ideal for viticulture, quality control and laboratory applications.

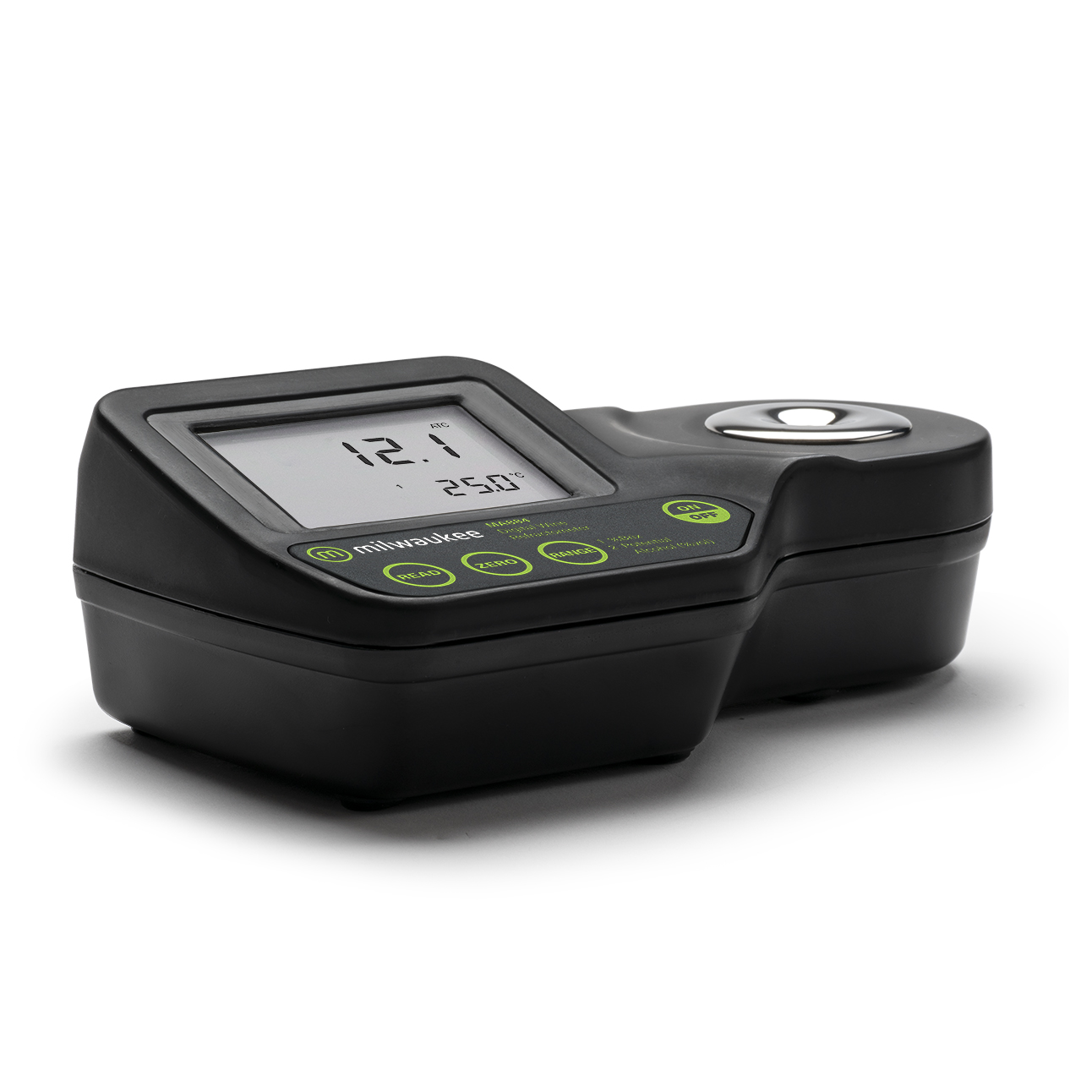

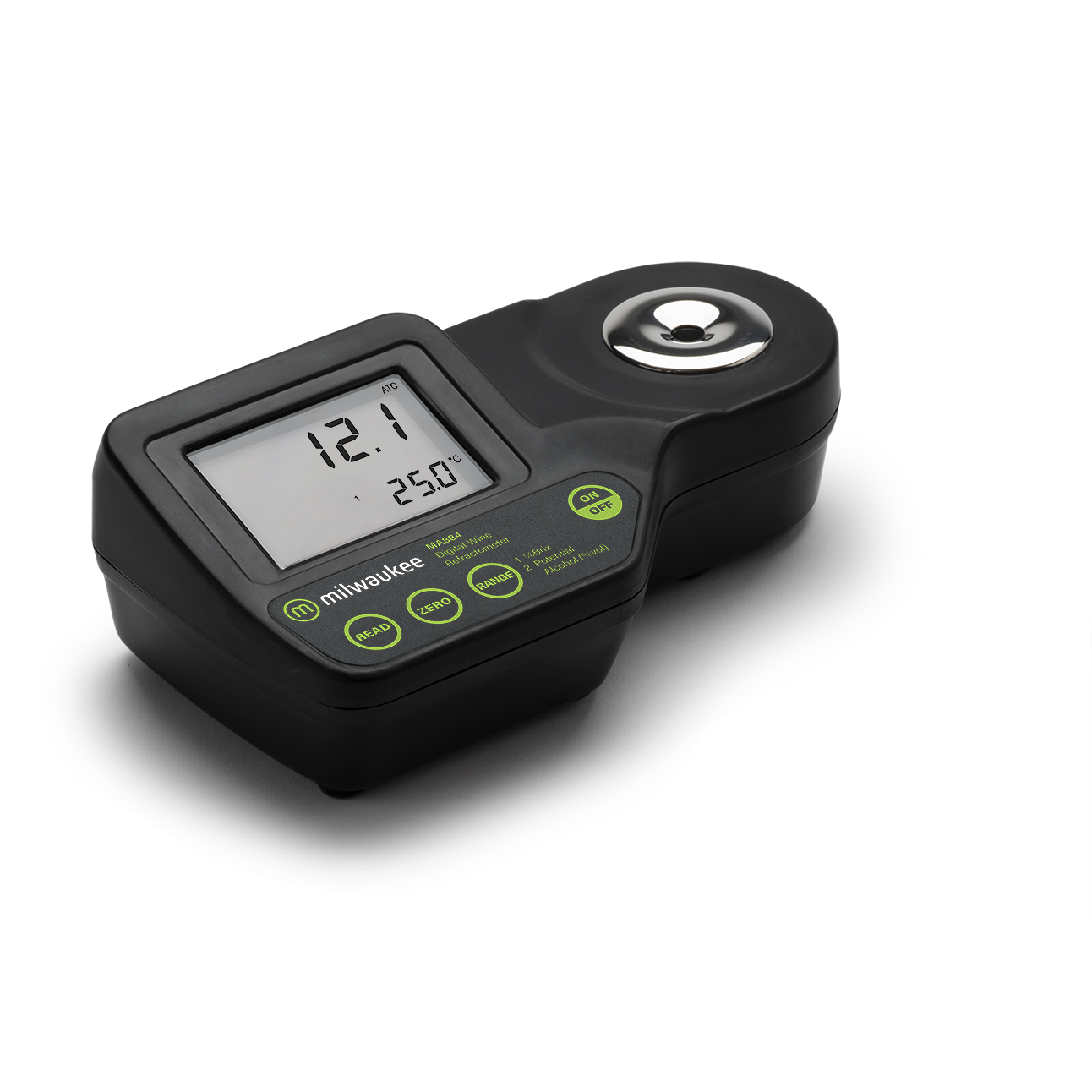

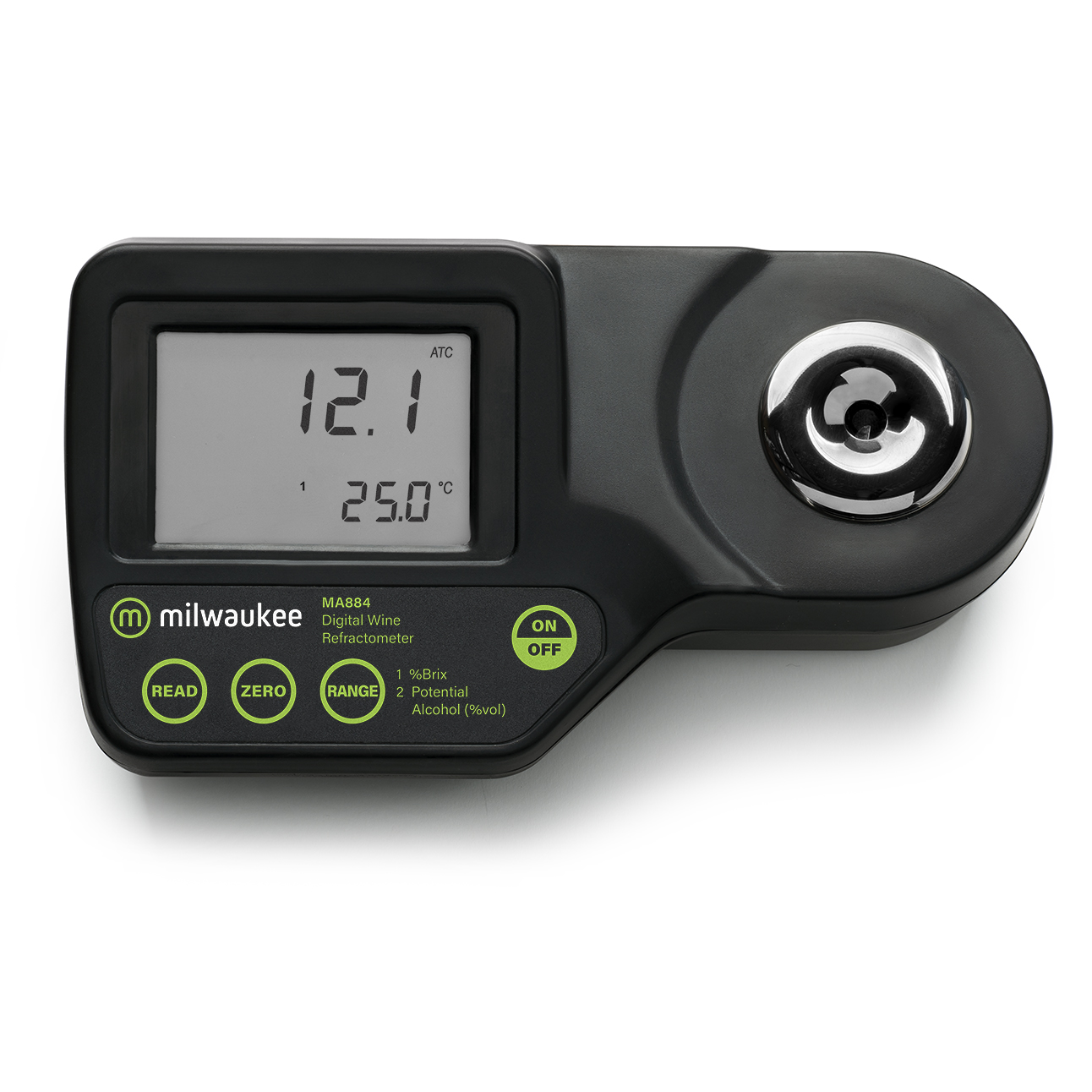

Milwaukee MA884 Digital Brix/Potential Alcohol Refractometer

The Milwaukee MA884 combines the measurement of Brix values and potential alcohol content in a single compact device. By measuring the refractive index, the digital refractometer can determine the sugar content of a sample and, from this, calculate the potential alcohol content following fermentation. It measures Brix values from 0 to 50% and potential alcohol from 0 to 25% vol., offering an accuracy of +/- 0.2% for both values. It features simple operation with two buttons and a response time of less than 2 seconds.

This combination makes the instrument particularly useful for applications in viticulture and the analysis of grape juice must. Even before fermentation begins, it is possible to estimate the alcohol content that could theoretically be produced from the sugar present. In this way, the refractometer aids in assessing the ripeness of grapes and in quality control during processing.

The digital display simplifies daily work and enables rapid evaluation without the need to read scales manually. Only a few drops of sample are required for the measurement. The result is available within a short time and is suitable for both individual analyses and regular control measurements.

Thanks to automatic temperature compensation, temperature fluctuations during measurement are taken into account. The robust housing with IP65 protection rating supports use in the laboratory, in production or directly in the vicinity of the sampling point.

Advantages

  • Fast, accurate results thanks to a digital LCD display showing two readings.
  • Easy to use: only 2–3 drops of the sample are required, and the result is available within 2 seconds.
  • Simple one-point calibration using distilled or deionised water.
  • The stainless steel sample well is easy to clean.
  • The device is IP65-rated, dustproof and protected against water jets.
  • Battery level display (percentage) and auto-off function.
  • Ideally suited for winemakers, brewers, syrup and food manufacturers, as well as numerous other applications.
  • The conversion method used is based on the ICUMSA Methods Book (International Commission for Uniform Methods of Sugar Analysis).
  • Automatic temperature compensation
  • Robust design for daily use

Typical areas of application

  • Viticulture
  • Grape juice and must analysis
  • Quality control
  • Laboratory applications
  • Production monitoring

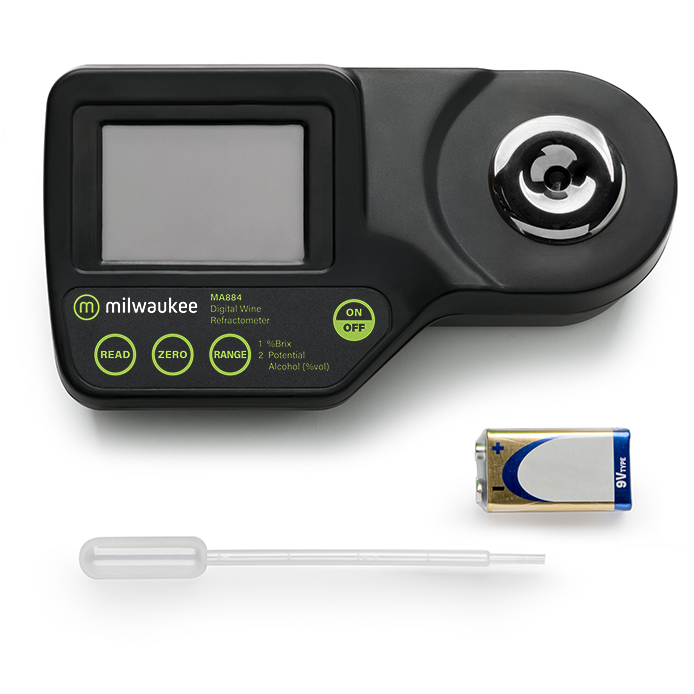

Scope of delivery

  • Milwaukee MA884 Digital Brix/Potential Alcohol Refractometer
  • 9V battery
  • User manual

Frequently Asked Questions

Yes, the MA884 displays both values quickly and conveniently on the screen.

The result appears in less than 2 seconds and is immediately readable.

Just 2 to 3 drops are sufficient to obtain a reliable result.

Yes, it is ideal for wine, beer, must, grape juice, and syrup.

No, the device automatically compensates for temperature fluctuations to ensure reliable readings.

Yes, the two-button operation makes using it quick and straightforward.

The values are displayed directly, eliminating the need for estimation or difficult reading through an eyepiece.

Dimensions

Height 11,8 cm
Length 26,8 cm
Width 12,2 cm

Weight

Weight 660 g

Other attributes

Applications Beer, Beverages, Food, Wine
Brand Milwaukee
Country of origin RO
Customs tariff number 38221900
Quality Advanced
Technical specifications
Range: 0 to 50% Brix | 0 to 25% v/v Potential Alcohol | 0 to 80°C / 32 to 176°F
Resolution: 0.1% Brix | 0.1% v/v Potential Alcohol | 0.1°C / 0.1°F
Accuracy: ±0.2% Brix | ±0.2% v/v Potential Alcohol | ±0.3°C / ±0.5°F
Light Source: Yellow LED
Measurement Time: Approximately 1.5 seconds
Minimum Sample: Volume 100 µL or 2 metrics drops (cover prism totally)
Sample Cell: Stainless steel ring and flint glass prism
Temperature Compensation: Automatic between 10 and 40°C / 50 to 104°F
Enclosure rating: IP65
Case Material: ABS
Battery Type: 1 x 9V AA (included)
Battery Life: 5000 hours reading with auto-shut off after 3 minutes of non-use
Dimensions Meter: 192 x 102 x 67 mm
Weight Meter: 0.42 kg
Dimensions Package: 268 x 172 x 118 mm
Weight Packaged: 0.66 kg
