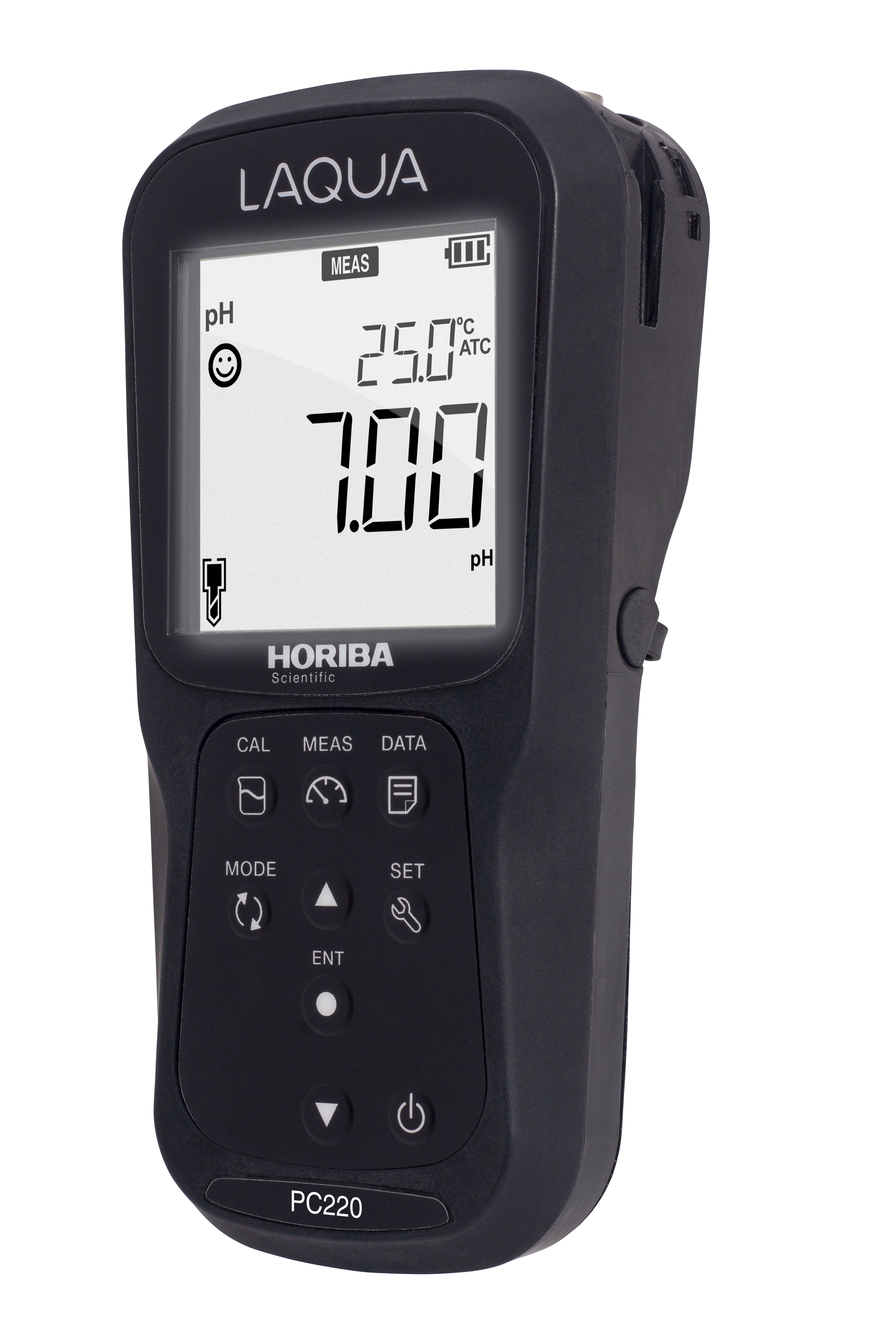

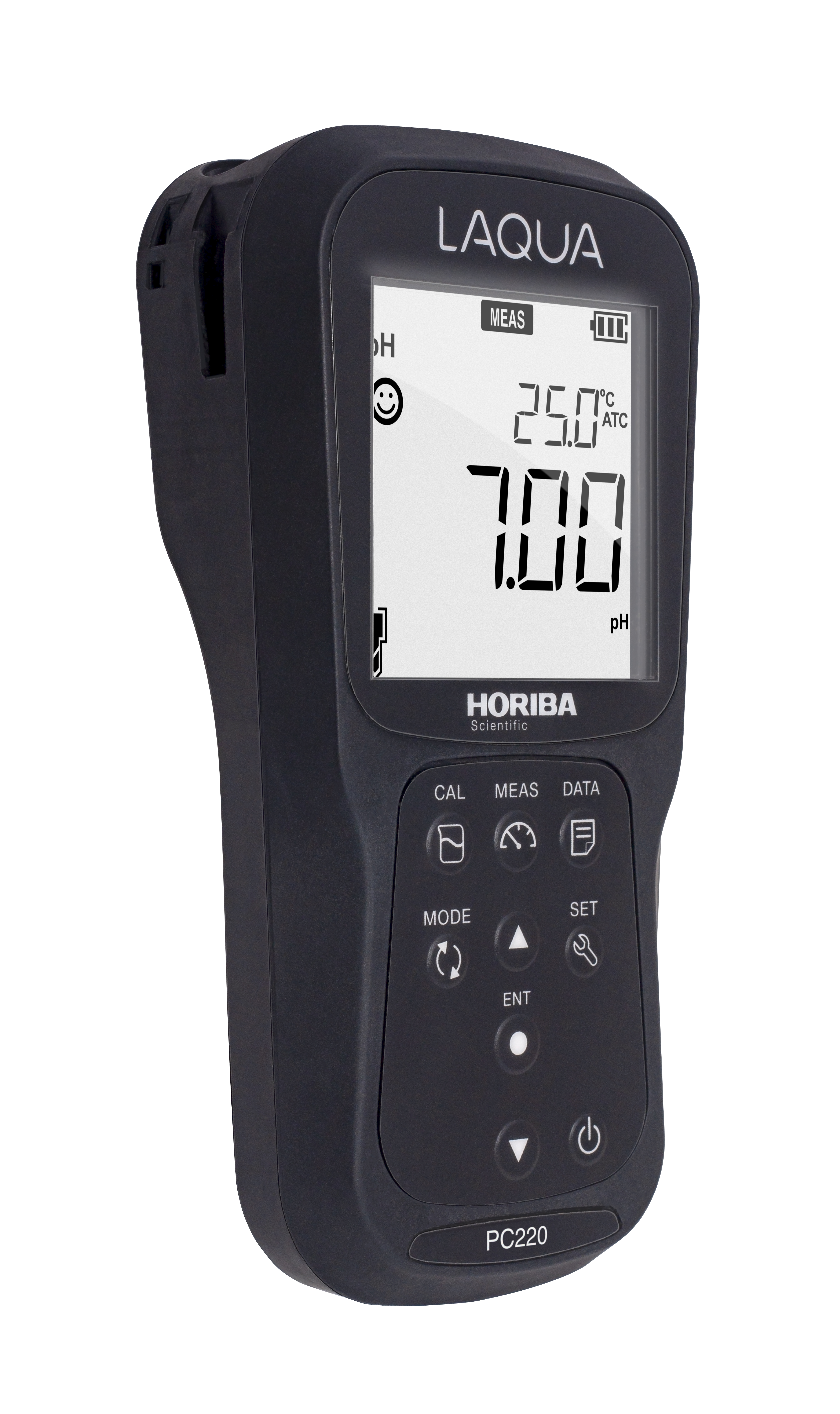

Horiba LAQUA PC210 dual channel hand-held meter without electrode

Product number: 895727

Product information "Horiba LAQUA PC210 dual channel hand-held meter without electrode"

The high-quality multi-parameter hand-held meters of the LAQUA 200 series manufactured by Horiba are suitable for use in the field under any conditions and in direct daylight thanks to their monochrome LCD display with LED backlight.

Another advantage of these devices is that the hand-held meters are very shock and scratch resistant due to the special rubber coating and offer a long service life due to the AA 2500 mAh batteries used. An IP67 certification, which certifies dust-tightness and protection against temporary submersion for up to 30 minutes at a water depth of one metre, rounds off the professional overall package in addition to the ergonomic design and simple operation.
In the certainty of producing high-quality devices, the manufacturer Horiba offers you a three-year guarantee on the hand-held measuring devices of the LAQUA 200 series.

During the measurements, the user is supported by the display of instructions in the form of smiley symbols. This is to prevent operating errors that can lead to implausible measurement results. Furthermore, the measuring device has only 9 keys and no menu texts. This design decision serves, among other things, to ensure that the device can be operated as easily as possible during discontinuous use or when used by other users.
The Horiba meters have an electrode wear indicator, a lock function to "save" the current measured value on the display, automatic calibration functions and a self-diagnosis function. The fold-out stand on the back of the devices means that you always have your hands free to carry out your measurements easily and safely.
Version PC220 with GLP functions
Measurement data storage of 1000, instead of 500 data sets
Measurement and calibration data are stored GLP compliant with date and time stamp
PC communication via optional USB cable
RS232 printer function to print the measurement data
Scope of delivery:
  • Handheld meter PC210 or PC220
  • 2x AA battery
  • manual and quick reference guide
Manufacturer article number:
3200779543 (PC210)
3200779544 (PC220)

Other attributes

Brand Horiba
Country of origin JP
Customs tariff number 90278930
Parameter Combined Multiparameter, Conductivity and TDS, ORP, Salinity, pH
Version PC210 (Messgerät o. Elektrode), PC220 (Messgerät o. Elektrode)
Technical data

pH

Measuring range: -2.00 to 16.00 pH
Resolution: 0.01 pH
Accuracy: ± 0.01 pH
Calibration points: USA & NIST (up to 5), DIN (up to 6)
Recognised buffers: USA, NIST, DIN

ORP
Measuring range: ± 2000 mV
Resolution: 0.1 mV ( < ± 1000 mV), 1 mV ( ≥ ± 1000mV)
Accuracy: ± 0.3 mV ( < ± 1000 mV), 0.3% of display value( ≥ ± 1000mV)
Calibration option: yes

Conductivity
Measuring range: ... µS/cm to 200.00 mS/cm (k=1.0)
Resolution: 0.05 % full measuring range
Accuracy: ± 0.6% full measuring range, ± 1.5% full measuring range > 18.0 mS/cm
Reference temperature: 15 to 30 °C
Temperature coefficient: 0.00 to 10.00
Cell constants: 0.1 ; 1.0 ; 10.0
Calibration points: up to 4 (automatic), up to 5 (manual)
Units: S/cm; S/m (automatic setting)

TDS
Measuring range: ... ppm to 100 ppt (TDS factor = 0.5)
Resolution: 0.01 ppm (mg/L) / 0.1 ppt (g/L)
Accuracy: ± 0.1 % full measuring range
TDS curves: Linear (0.40 to 1.00), EN27888, 442, NaCl

Resistance measurement
Measuring range: 0.000 Ω●cm to 20.0 MΩ●cm
Resolution: 0.05% full measuring range
Accuracy: ±0.6% full measuring range, ±1.5% full measuring range > 1.80 MΩ●cm

Salinity
Measuring range: 0.0 to 100.0 ppt / 0.00 to 10.00 %
Resolution: 0.1 ppt / 0.01 %
Accuracy: ±0.2% full measuring range
Salt curves: NaCl, sea water Calibration possibility: yes

Temperature
Measuring range: - 30.0 to 130.0 °C / - 22.0 to 266.0 °F
Resolution: 0.1 °C / °F
Accuracy: ± 0.5 °C / ± 0.9 °F
Calibration option : yes

Basic functions:
  • Storage of 500 data records
  • Automatic data log
  • Auto hold of measured value
  • Auto stability display
  • Measurement Display of offset and average slope
  • Adjustable calibration alarm between 1 and 90 days
  • Auto-off function (1 to 30 minutes)
  • Electrode status display
  • Diagnostic messages
Additional functions GLP version PC220
  • Storage of 1000 data records
  • Real time Date and time stamp
  • PC connection via USB
  • RS232 printer connection
General information:
Inputs: BNC, Phono
Display: LCD with backlight monochrome
Housing: IP67, scratch and shock resistant, anti-slip material
Power supply: 2x AA batteries
Battery life: > 500 hours
Dimensions: 160 (L) x 80 (W) x 40.60 (H) mm
Weight: approx. 260 g (with batteries) / 216 g (without batteries)
Skip product gallery

Empfohlenes Zubehör

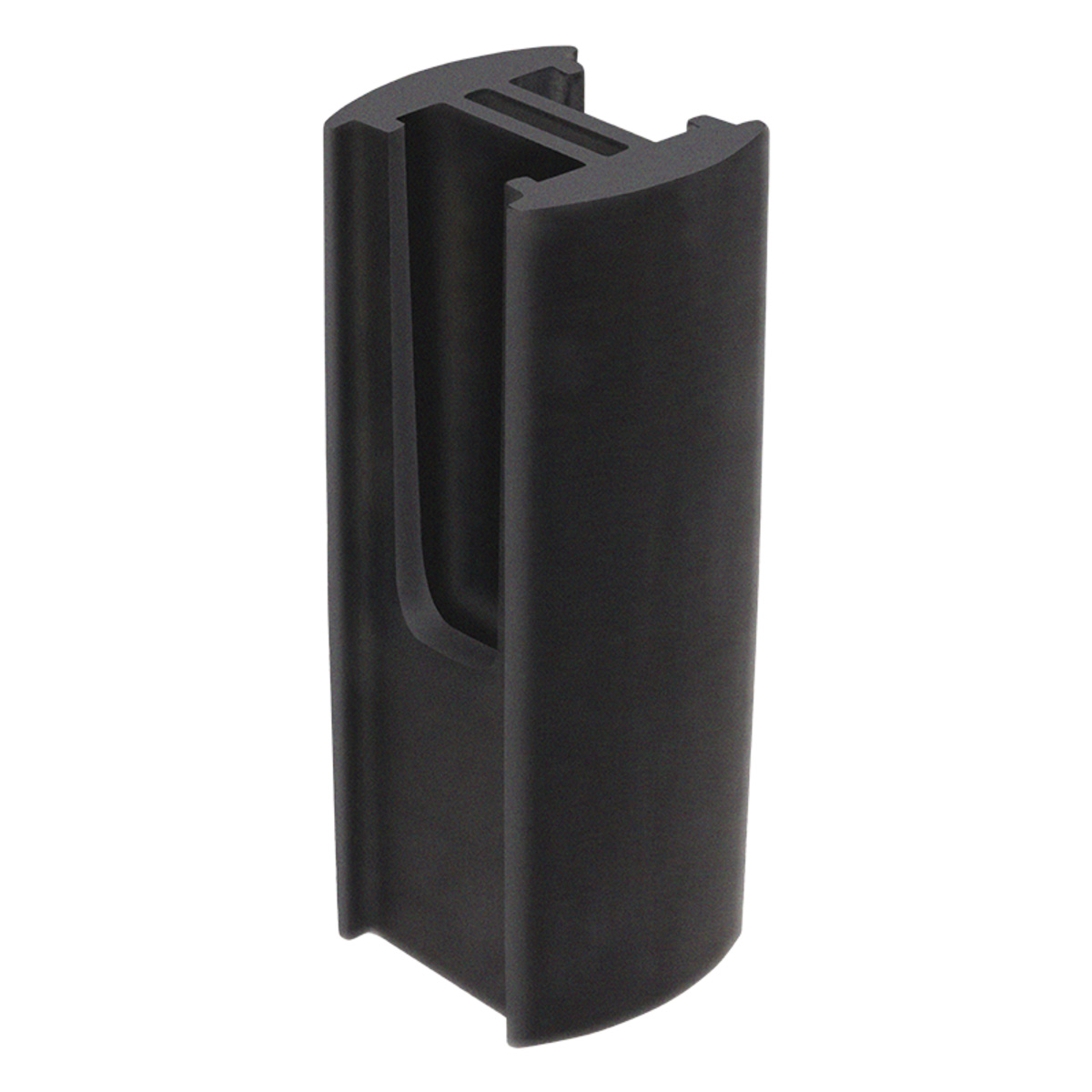

Electrode adapter for HORIBA Series 200 – double holder for precise measurements
Product number: 895940
The electrode adapter for the HORIBA Series 200 enables two electrodes to be attached simultaneously and securely. This allows two electrodes to be conveniently immersed together in a solution – ideal for precise and stable measurements in the laboratory and in the field. Manufacturer article number: 3200779640

€15.00*
Horiba Citizen CBM-910ll Printer EU (for GLP/GMP compliance)
Product number: 895956
The Citizen CBM-910II is a compact and reliable printer that has been specially developed for use with theHORIBA 300 series laboratory benchtop and handheld measuring instruments.With its robust design, simple RS-232 interface andcompact size, it is ideal for use in the laboratory or in the field.The CBM-910II is ideal for use in laboratories, in the field and forenvironmental monitoring. In combination with HORIBA measuring instruments, it enables direct andreliable documentation of measurement results. Model: Citizen CBM-910-24RJ-230-AApplicable products: Horiba WQ-300 F-50 DS-50 D-50* OM-50 ES-50 F-70 DS-70 D-70* OM-70 ES-70 series *Except D-51/D-71Accessories:Paper roll (1 roll) ,Ribbon cassette (1 unit) ,AC adapter (1 unit)*Printer cable sold separately Manufacturer article number: 3014030147

€480.00*

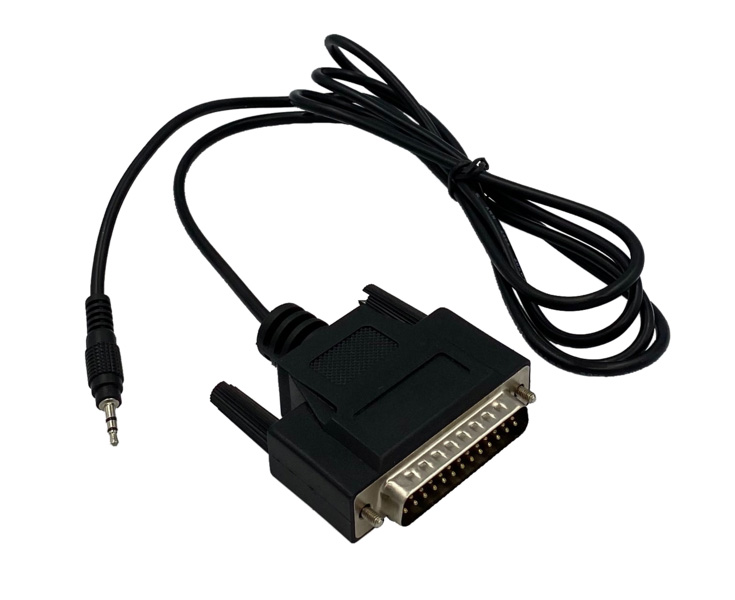

Printer cable for HORIBA 200/300/1500/2000 series – 25-pin with phono plug
