Horiba 6581S-10C, nitrate ion (NO3-) electrode (combined)

Product number: 895884

Horiba 6581S-10C, nitrate ion (NO3-) electrode (combined)

€875.00*

Please log in to receive your conditions.

Prices excl. VAT plus shipping costs.

Show gross prices
(incl. VAT)

Available in 14 days, delivery time 1-2 days

Product number: 895884

GTIN: 4260682383105

Measurement parameters: Nitrate

Measuring range: Nitrate: 0.62 - 62,000 mg/L NO3- | 1 x 10-5 - 1 mol/L NO3-

Application: Agriculture / Plant Tissue / Fertilizers, Surface / Seawater / Drinking Water, Sewage Effluent, Soils, Meats, Vegetables, Foods / Beverages

Offer as PDF
Login for addressed offer The entered number of pieces will be taken into account when creating the offer.

Product information "Horiba 6581S-10C, nitrate ion (NO3-) electrode (combined)"

Manufacturer's number: 3200697408

Ion-selective electrodes respond to the concentration of specific ions in the test fluid and are variable potential electrodes. They are used in combination with reference electrodes to measure the concentration of certain ions.

When measuring with an ion meter, the ion concentration can be read directly by calibrating with different standard solutions. Since the volume reading changes with temperature, the measurements must be taken at a fixed temperature.

Dimensions

Weight

Other attributes

Brand	Horiba
Country of origin	JP
Customs tariff number	90279000
Parameter	Nitrate Ion (NO3-)

Technical specifications

Measurement Range:

0,62 - 62.000 mg/L NO3-

1 x 10-5 - 1 mol/L NO3-

Temperature Range: 0 - 50 ºC

pH-Range: 3 - 7 (62 mg/L NO3-)

Accuracy: ±2%

Internal electrode: Ag/AgCl

Internal solution: 2 mol/L (NH4)2SO4

Liquid Junction: Moveable sleeve

Connector: BNC

Cable length: 1m

Dimensions: 150mm (length), 16mm (diameter)

Wetted Part Materials: PVC, PSU

Slope: -53 to -62 mV/decade

Selection Coefficient:

ClO4-, I- = not acceptable

Br- = 2, NO2- = 3, Cl- = 300

HCO3-, H2PO4-, SO42- = over 1000

Package Contents:

2x Nitrate Ion Electrode Tips
1000 mg/L Nitrate Ion Standard Solution (50ml)
100 mg/L Nitrate Ion Standard Solution (50ml)
Nitrate Ionic Strength Adjustor (50ml)
Nitrate Ion Electrode Filling Solution (50ml)
Syringe
Dropper
Protective Pipe
Manual

Accessories and Solutions:

7681S: Nitrate Ion Electrode Tip

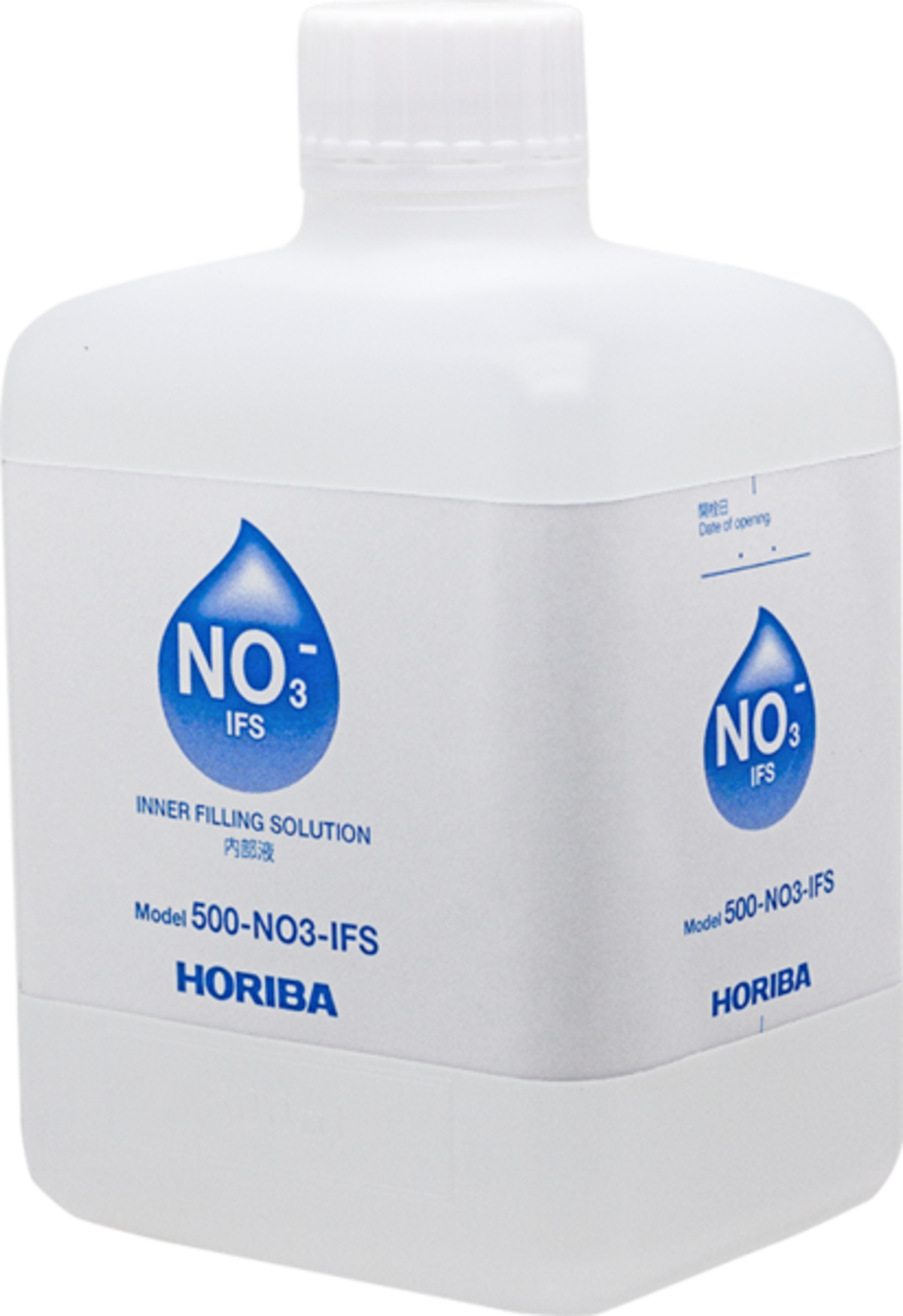

500-NO3-IFS: Nitrate Ion Electrode Filling Solution (500ml)

500-NO3-SL: 100 mg/L Nitrate Ion Standard Solution (500ml)

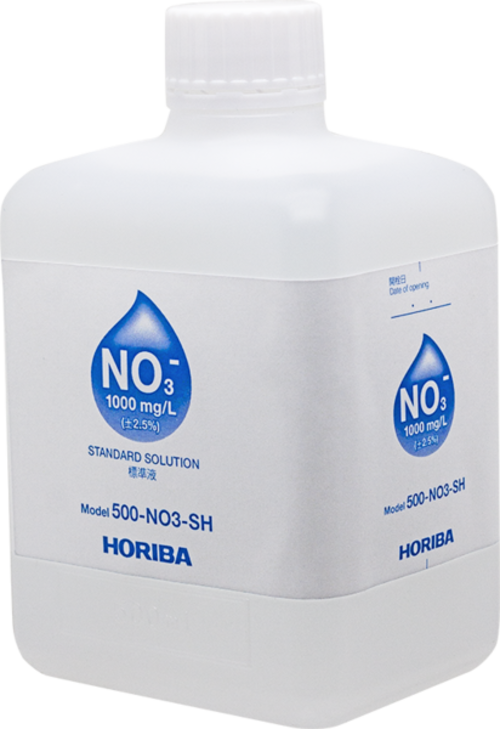

500-NO3-SH 1000 mg/L Nitrate Ion Standard Solution (500ml)

500-NO3-ISA: Nitrate Ionic Strength Adjustor (500ml)
