Horiba 5002S-10C, Ammonia-ion (NH3) electrode (combined)

Product number: 895880

€850.00*

Please log in to receive your conditions.

Available in 14 days, delivery time 1-2 days


Product number: 895880
GTIN: 4260682383020
Measurement parameters: Ammonia
Measuring range: Ammonia: 0,01 - 18000 mg/L NH4+ ; 5 x 10-7 to 1 mol/L NH4+
Application: Agriculture, soils, power plant water, fish tanks, seawater, waste water, plating baths, air/stack gases and biological cultures or samples
Offer as PDF
Login for addressed offer
The entered number of pieces will be taken into account when creating the offer.
Product information "Horiba 5002S-10C, Ammonia-ion (NH3) electrode (combined)"
Manufacturer's number.: 3200698386

Ion selective electrodes respond to the concentration of specific ions in the test liquid and are variable potential electrodes. They are used in combination with reference electrodes to measure the concentration of certain ions.
When measuring with an ion meter, the ion concentration can be read directly by calibrating with different standard solutions. Since the volume reading changes with temperature, the measurements must be taken at a fixed temperature.

Dimensions

Height 7 cm
Length 20 cm
Width 27 cm

Weight

Weight 80 g

Other attributes

Brand Horiba
Country of origin JP
Customs tariff number 90279000
Parameter Ammonia Ion (NH3)
Technical specifications

Measuring Range:     0,01 - 18000 mg/L NH4+

                                    5 x 10-7 bis 1 mol/L NH4+

Temperature Range: 0 - 50 ºC

pH-Range: ≥ pH 12

Accuracy: ±2%

Internal electrode: Ag/AgCl

Internal solution: 0,1 mol/L NH4Cl

Liquid junction: Moveable sleeve

Connector: BNC

Cable length: 1m

Dimensions: 161mm (Length), 15mm (Diameter)

Wetted parts materials: PTFE, PVC, PSU

Slope: -54 to -62 mV/decade

Package contents:

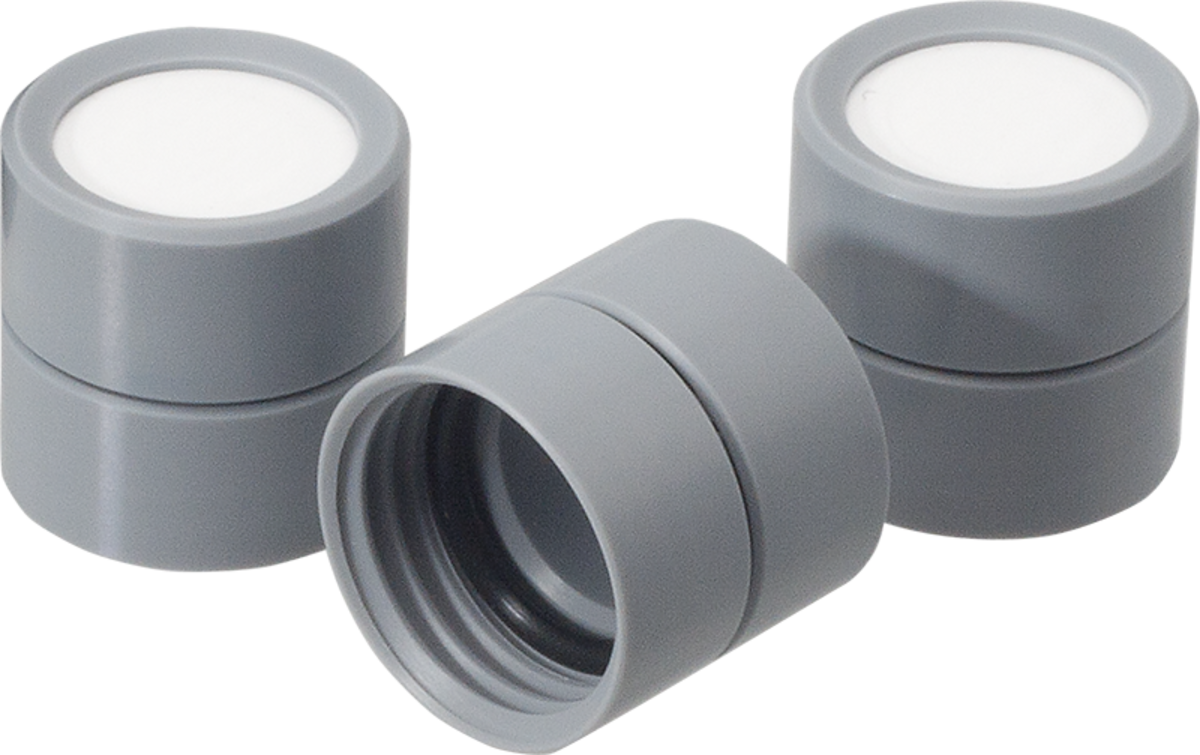

  • 3 pcs. Membrane caps
  • 1000 mg/L Ammonia-Ion-Standard solution (50ml)
  • 100 mg/L Ammonia-Ion-Standard solution (50ml)
  • Ammonia electrode filling solution (50ml)
  • Syringe
  • Dropper
  • Manual

Accessories and solutions:

NH3 electrode membrane cap:              Ammonia electrode tips

500-NH3-IFS:                                                   Ammonia electrode filling solution (500ml)

500-NH4-SL:                                                    100 mg/L Ammonia ion standard solution (500 ml)

500-NH4-SH:                                                   1000 mg/L Ammonia ion standard solution (500ml)

500-NH3-ISA:                                                   Ammonia ion strength adjuster (500ml)
