Measuring ions in leaf and fruit sap with instruments such as the HORIBA LAQUAtwin is of great importance for mango production. Sap measurements provide a snapshot of the nutrients that are actually moving within the tree – not just the nutrients present in the soil. Soil analyses alone are not sufficient, because nutrient availability in mango changes rapidly due to flowering, fruit set, vegetative growth phases, irrigation, and environmental stress.

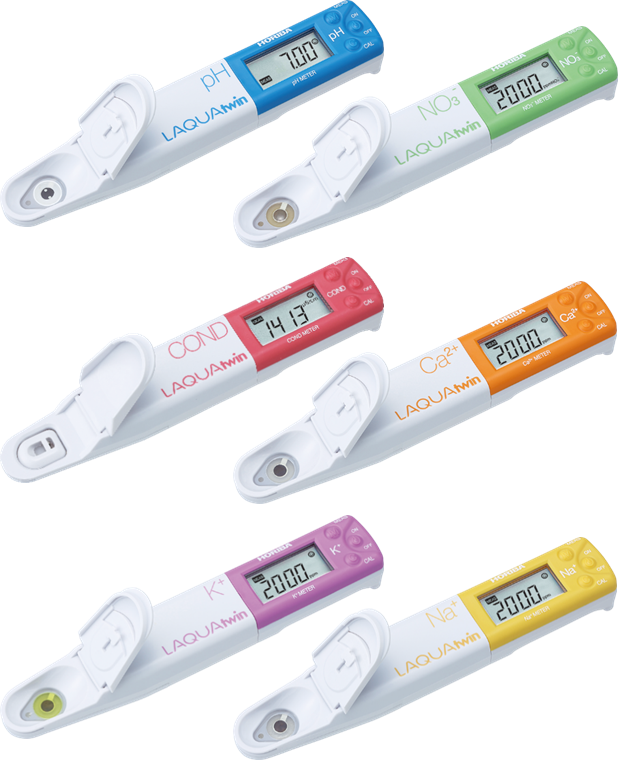

The LAQUAtwin meters can measure K⁺, NO₃⁻, Ca²⁺, Na⁺, pH, and EC in fruits, leaves, soil, and water.
Why Ion, pH, and EC Measurements Are So Important for Mango Farms
Modern mango production is no longer limited primarily by the availability of fertilizers, but by the correct nutrient balance, the optimal timing of supply, and the efficiency of nutrient uptake. Problems such as weak flowering, excessive vegetative growth, uneven fruit size, internal fruit breakdown, soft fruit, jelly seed, low Brix values, and poor shelf life are usually the result of nutrient imbalances during the growing season – not only at harvest.
This is why real-time measuring instruments for ions, pH, and EC are now indispensable tools for professional mango farms.
Why Ion Measurements Matter
Ion-specific measurements of K⁺, Ca²⁺, NO₃⁻, and Na⁺ show directly what the tree is actually taking up and transporting at that moment. Unlike soil analyses or conventional leaf tissue analyses, sap measurements reflect the current physiological status. This makes it possible to detect problems early – often weeks before visible symptoms or irreversible fruit damage appear.
- Early detection of a K-Ca imbalance, a major cause of soft fruit and internal fruit breakdown
- Better control of nitrogen-driven vegetative growth in relation to flowering
- The ability to adjust fertigation and foliar feeding proactively
- Less waste from unnecessary fertilizer applications
In high-value varieties such as Kent, Keitt, Tommy Atkins, Ataulfo, and Alphonso, these measurements directly affect export quality and shelf life.
Why pH and EC Are Equally Important
While ion meters show which nutrients are present, pH and EC explain why nutrient uptake is working or failing.
pH controls nutrient availability and the competition between ions in the root and leaf zone. Even optimal Ca or K values are of limited benefit if pH conditions restrict uptake.
EC (electrical conductivity) is a rapid indicator of total salt concentration and osmotic stress. An elevated EC value reduces water uptake, inhibits calcium transport into the fruit, and often precedes sodium-related stress.
Together, pH and EC measurements help to:
- Detect salt stress early
- Diagnose irrigation and fertigation problems
- Interpret ion measurement values correctly and avoid wrong decisions
Without the context of pH and EC, ion data alone can be misleading.
Sampling, Sap Extraction, and Measurement Procedure
Sample Preparation from Stone Fruit or Stone Fruit Leaves
This general section describes sap preparation before moving on to the specific protocols for mango leaf sap and mango fruit sap.
Sample Collection
-
Select leaves or fruits
For leaves: select healthy, fully developed leaves from comparable positions. Avoid shaded, diseased, or stressed leaves.
For fruits: use fruit sap instead of sap from the vascular tissue. Fruit sap is well suited for measurements of nitrate, potassium, sodium, and calcium. -
Extract sap
Leaves: use a petiole sap press, such as a garlic press or a small hand press, to squeeze out the sap.
Fruits: peel and chop. Crush or blend the flesh and then filter out solids so that the sensor only comes into contact with clear liquid.
If necessary, samples should be diluted with deionized or distilled water so that the ion concentration falls within the calibrated measuring range of the device.
Step-by-Step Protocol: Mango Leaf Sap (Petiole Sap)
1. Sampling
- Timing: in the morning between 8 and 11 a.m.; avoid drought stress or heat stress
- Leaf selection: fully developed leaves from the middle shoot position
- Avoid diseased or shaded leaves
- Quantity: 20 to 30 leaves per block or variety
- Remove the petioles; the leaf blade dilutes the sap and increases variability
2. Sap Extraction
Required equipment:
- Garlic press or small sap press
- Clean plastic cup
- Coffee filter or syringe filter (optional)
Procedure:
- Cut petioles into pieces 5 to 10 mm long
- Press firmly to extract the sap
- Collect at least 0.5 mL total sap
- Typical yield: 20 petioles produce about 0.4 to 0.8 mL sap
3. Dilution (important for mango)
Mango sap is generally too concentrated for Ca and K meters.
Recommended standard dilution to begin with:
| Measurement parameter | Dilution |
|---|---|
| NO₃⁻ | 1:5 |
| K⁺ | 1:10 |
| Ca²⁺ | 1:10 |
| Na⁺ | 1:5 |
Example of a 1:10 dilution:
Mix 0.10 mL sap with 0.90 mL distilled or deionized water and mix gently. Disposable pipettes or syringes should be used for precise dosing.
Step-by-Step Protocol: Mango Fruit Sap
1. Sampling
- Select 3 to 5 representative mangoes
- Avoid damaged or overripe fruits
2. Sap Extraction
- Peel and chop the fruits
- Crush or blend the flesh
- Filter out solids
- Collect clear sap
3. Dilution
- K and Ca: usually 1:5 or 1:10
- NO₃⁻ and Na⁺: often no dilution required
Measurement
The device must be calibrated before measurement.
- Turn on the meter
- Rinse the sensor with demineralized water or normal tap water and gently dry with a cloth
- Place some 150 ppm solution on the sensor and press the CAL button
- Rinse the sensor again and gently dry
- Place some 2000 ppm solution on the sensor and press the CAL button
- Rinse and dry the sensor
- Place the extracted sap or fruit sap on the sensor
- Wait until the reading stabilizes; this takes only a few seconds
Reference Values, Target Ranges, and Practical Interpretation
Expected Values
The following values are typical working ranges, not absolute sufficiency standards. The composition of mango sap varies greatly depending on variety, crop load, irrigation, weather, and stage of development.
Mango Petiole Sap (ppm, mg/L)
| Status | NO₃⁻ | K⁺ | Ca²⁺ | Na⁺ |
|---|---|---|---|---|
| Low | <250 | <1400 | <180 | - |
| Adequate | 250-600 | 1400-2800 | 180-450 | <50 |
| High | 600-1000 | 2800-4200 | 450-750 | 50-150 |
| Excessive | >1000 | >4200 | >750 | >150 |
Mango requires controlled nitrogen supply to keep flowering and vegetative growth in balance. High K values suppress calcium transport and thereby promote soft fruit as well as internal disorders. Sodium should remain very low.
Mango Fruit Sap (ppm, mg/L)
| Parameter | Range | Note |
|---|---|---|
| NO₃⁻ | <30 | High nitrate values are undesirable |
| K⁺ | 800-1200 | Excess promotes soft fruit and poor shelf life |
| Ca²⁺ | >35 | Low calcium values promote jelly seed and internal fruit breakdown |
| Na⁺ | <20 | Indicates salt stress |
Note: Calcium content in fruits is significantly lower than in leaf sap.
Practical, Growth-Stage-Specific Sap Ranges
Below are practical target ranges for mango according to growth stage, aligned with the HORIBA LAQUAtwin meters for NO₃⁻, K⁺, Ca²⁺, and Na⁺. These ranges are intended as working target values for orchard decisions, not as laboratory diagnostic limits.
Petiole Sap (ppm, corrected for dilution) - Standard Mango Varieties
Examples: Kent, Keitt, Tommy Atkins, Ataulfo, Alphonso
| Stage | NO₃⁻ | K⁺ | Ca²⁺ | Na⁺ |
|---|---|---|---|---|
| Pre-bloom | 200-400 | 1800-3000 | 350-600 | <50 |
| Bloom to fruit set | 250-500 | 2000-3200 | 400-650 | <50 |
| Early fruit growth | 300-600 | 2200-3500 | 450-700 | <50 |
| Mid-season | 250-500 | 1800-3000 | 500-750 | <50 |
Target Values for Mango Fruit Sap at Harvest
| Range | NO₃⁻ | K⁺ | Ca²⁺ | Na⁺ |
|---|---|---|---|---|
| Desired range | <30 | 800-1100 | >40 | <20 |
K:Ca ratio in fruit sap: < 20:1
K:Ca Ratio in Leaf Sap
The ratio of potassium to calcium in mango leaf sap is crucial for fruit quality. It influences firmness, size, and the prevention of disorders such as jelly seed or internal fruit breakdown, because potassium and calcium compete during uptake. A balanced ratio supports cell wall stability through calcium and fruit filling through potassium.
| Development stage | Target value |
|---|---|
| Bloom | < 8 : 1 |
| Mid-season | < 6 : 1 |
| Before harvest | < 4 : 1 |
Practical Notes for Mango and Mango Leaves
What should be measured?
Leaves (petiole sap): well suited for the rapid assessment of nutrient status during the growing season, especially for nitrate and potassium.
Fruit sap: suitable for rapid quality checks, for example to assess potassium or calcium levels in relation to fruit quality. However, these values do not reflect the physiological condition of the plant as directly as sap measurements do.
Consistency
Samples should always be taken at the same time of day and under similar environmental conditions whenever possible in order to minimize variation.
Dilution and Correction
If ion concentrations exceed the measuring range of the instrument, the sample should be diluted and the reading corrected with the corresponding dilution factor. Diluted plant sap values must therefore be multiplied by the dilution ratio.
What about pH and EC?
pH and EC are also important, but they serve a somewhat different function from ion-specific measurements of K⁺, Ca²⁺, NO₃⁻, and Na⁺.
1. pH Value (Hydrogen Ion Concentration)
pH influences nutrient availability. Even if sufficient calcium or potassium is applied, the plant cannot absorb these nutrients efficiently when the pH is too high or too low.
Typical ranges for mango sap or irrigation water:
- Sap: usually 5.5-6.5
- Irrigation or fertigation water: 6.0-7.0
Extreme pH values can cause:
- Reduced uptake of Ca, Mg, Fe, and Mn
- Nutrient imbalances with negative effects on flowering and fruit quality
Conclusion: pH is not itself a nutrient ion, but it controls how well the plant can use other nutrients.
2. EC (Electrical Conductivity)
EC measures the total amount of dissolved salts in water or sap.
High EC values in water or sap indicate salt stress, which:
- reduces water uptake
- increases the accumulation of Na⁺
- impairs the uptake of K⁺ and Ca²⁺
Typical target ranges:
- EC in leaf sap: 1.0-3.0 mS/cm, depending on development stage
- Irrigation water: preferably <0.75 mS/cm for mango
EC in irrigation water and plant sap should be monitored together to detect salt stress early.
3. Complement to Ion Measurements
| Parameter | Use | Important for |
|---|---|---|
| K⁺, Ca²⁺, NO₃⁻, Na⁺ | Direct ion status | Nutrient balance, prediction of disorders |
| pH | Nutrient availability | Ensures that applied nutrients can be taken up |
| EC | Total salt content / salinity | Detects stress and Na⁺-related impairment |
In short:
- pH and EC should always be checked for irrigation water and sap.
- Ion meters plus pH/EC provide a complete picture of the plant’s nutrient status and stress risk.
Advantages of LAQUAtwin Meters for Mango Farms
HORIBA LAQUAtwin meters are particularly well suited for use in fruit production because they combine laboratory-quality ion-selective measurement technology with real field practicality.
- Direct measurement of plant sap and fruit sap without complex sample preparation
- Very small sample volumes, ideal for petiole sap
- Fast, reproducible results for same-day decisions
- Ion-specific accuracy for precise control of K, Ca, NO₃⁻, and Na
- Portable, robust design for orchards and packing houses
- Proven reliability in agriculture, research, and advisory work worldwide
Particularly important is that LAQUAtwin meters make frequent monitoring practical. This is crucial because nutrient dynamics can change very quickly after flowering, during fruit growth, and before harvest.
Practical Conclusion
Mango farms that integrate ion, pH, and EC monitoring move from calendar-based fertilization to data-based nutrient management.
- Better fruit quality and greater uniformity
- Improved shelf life
- Lower input costs
- Reduced environmental impact
- Greater confidence in management decisions
In today’s mango production systems with high costs and high risks, ion, pH, and EC meters are no longer optional diagnostic tools, but essential management instruments. The LAQUAtwin platform makes this level of precision practical, affordable, and immediately usable for modern mango growers.
