Horiba U-50 Series Multiparameter Water Analysis Professional Instrument optional with GPS and Sea Depth Measurement
€3,075.00*
Please log in to receive your conditions.
Available in 28 days, delivery time 1-2 days
(Login for quotation) The entered number of pieces will be taken into account when creating the quotation.
Product information "Horiba U-50 Series Multiparameter Water Analysis Professional Instrument optional with GPS and Sea Depth Measurement"
Manufacturer article number:3200164509 (2 Meter = U-51)
Other attributes
| Applications | Aquaculture and Coral, Aquariums, Environmental, Hydroponics, Schools, Water Conditioning, Water Treatment |
|---|---|
| Brand | Horiba |
| Country of origin | JP |
| Customs tariff number | 90278930 |
| Parameter | Combined Multiparameter, Conductivity and TDS, ORP, Oxygen, Salinity, Seawater specific gravity (SSG) , pH |
| Quality | Professional |
| U-50 Series Specifications | U-51 | U-52 | U-52G | U-53 | U-53G | |
| Sensor | Temperature range | -10 to 55 °C | ||||
| Maximum sensor diameter | approx. 96 mm | |||||
| Sensor length | approx. 340 mm | |||||
| Cable length | Standard: 2 metres, optional: 10, 30 m | |||||
| Weight | approx. 1,800 g (approx. 3.97 lbs) | |||||
| Automatic calibration (pH 4) | ● | |||||
| Turbidity wiper (impeller to reduce air bubbles) | ─ | ─ | ─ | ● | ● | |
| Measuring depth | max. 30 m | |||||
| Materials in contact with liquid | PPS, glass, SUS316L, SUS304, FKM, PEEK, Q, titanium, FEP membrane, POM | |||||
| Protection rating | JIS protection class level 8 | |||||
| Instrument | External dimensions | 115 (W) × 66 (D) × 283 (L) mm | ||||
| Weight | approx. 800 g (approx. 1.76 lbs) | |||||
| Display | 320 × 240 LCD with backlight (monochrome) | |||||
| Data memory | 10,000 | |||||
| Interface | USB | |||||
| Batteries | 4 × C batteries | |||||
| Protection rating | JIS protection class level 7 (with sensor attached) | |||||
| Battery life | approx. 70 hours (without backlight) | approx. 500 measurements | ||||
| Storage temperature | -10 to 60 °C | |||||
| Operating temperature | -5 to 45 °C | |||||
| pH ● Two-point calibration ● Automatic temperature compensation |
Measuring principle | Glass electrode method | ||||
| Measuring range | pH 0 to 14 | |||||
| Resolution | 0.01 pH | |||||
| Repeatability | ±0.05 pH | |||||
| Accuracy | ±0.1 pH | |||||
| Redox potential (Oxidation Reduction Potential) | Measuring principle | Platinum electrode method | ||||
| Measuring range | -2000 mV to +2000 mV | |||||
| Resolution | 1 mV | |||||
| Repeatability | ±5 mV | |||||
| Accuracy | ±15 mV | |||||
| Dissolved oxygen (DO) ● (0 to 70 ppt / automatic) ● Automatic temperature compensation |
Measuring principle | Polarographic method | ||||
| Measuring range | 0 to 50.0 mg/L | |||||
| Resolution | 0.01 mg/L | |||||
| Repeatability | ±0.1 mg/L | |||||
| Accuracy | 0 to 20 mg/L: ±0.2 mg/L; 20 to 50 mg/L: ±0.5 mg/L | |||||
| Conductivity ● Automatic range selection ● Automatic temperature compensation (25 °C) |
Measuring principle | 4-electrode AC method | ||||
| Measuring range | 0 to 10 S/m (0 to 100 mS/cm) | |||||
| Resolution | 0.000 to 0.999 mS/cm: 0.001 mS/cm; 1.00 to 9.99 mS/cm: 0.01 mS/cm; 10.0 to 99.9 mS/cm: 0.1 mS/cm | |||||
| 0.0 to 99.9 mS/m: 0.1 mS/m; 0.100 to 0.999 S/m: 0.001 S/m; 1.00 to 9.99 S/m: 0.01 S/m | ||||||
| Repeatability | ±0.05 % F.S. | |||||
| Accuracy | *±1 % F.S. (mid-point of two-point calibration) | |||||
| Salinity | Measuring principle | Conversion from conductivity | ||||
| Measuring range | 0 to 70 ppt (permillage) | |||||
| Resolution | 0.1 ppt | |||||
| Repeatability | ±1 ppt | |||||
| Accuracy | ±3 ppt | |||||
| Total dissolved solids (TDS) ● Conversion factor setting |
Measuring principle | Conversion from conductivity | ||||
| Measuring range | 0 to 100 g/L | |||||
| Resolution | 0.1 % F.S. | |||||
| Repeatability | ±2 g/L | |||||
| Accuracy | ±5 g/L | |||||
| Seawater specific gravity ● Display: σt, σ0, σ15 |
Measuring principle | Conversion from conductivity | ||||
| Measuring range | 0 to 50 σt | |||||
| Resolution | 0.1 σt | |||||
| Repeatability | ±2 σt | |||||
| Accuracy | ±5 σt | |||||
| Temperature | Measuring principle | Thermistor method | ||||
| Measuring range | -10 to 55 °C | |||||
| Resolution | 0.01 °C | |||||
| Repeatability | *±0.10 °C (from calibration point) | |||||
| Accuracy | Platinum resistance thermometer, JIS class B (±0.3 + 0.005 |t|) | |||||
| Turbidity | Measuring principle | ─ | LED light source and 30° scattered light method | Tungsten white light source and 90° scattered light method | ||
| Measuring range | 0 to 800 NTU | 0 to 1000 NTU | ||||
| Resolution | 0 to 99.9 NTU: 0.1 NTU; 100 to 800 NTU: 1 NTU | 0 to 9.99 NTU: 0.01 NTU; 10 to 99.9 NTU: 0.1 NTU; 100 to 1000 NTU: 1 NTU | ||||
| Repeatability | *±5 % of reading or ±0.5 NTU, whichever is greater | ±3 % of reading or ±0.1 NTU, whichever is greater | ||||
| Accuracy | ±5 % of reading or ±1 NTU, whichever is greater | 0 to 10 NTU: ±0.5 NTU 10 to 1000 NTU: 3 % of reading or ±1 NTU, whichever is greater |
||||
| Water depth | Measuring principle | ─ | ─ | Pressure method | ||
| Measuring range | 0 to 30 m | |||||
| Resolution | 0.05 m | |||||
| Repeatability | ±1 % F.S. | |||||
| Accuracy | ±0.3 m | |||||
| GPS | 12 channels – parallel | ─ | ─ | ● | ─ | ● |
Accessories

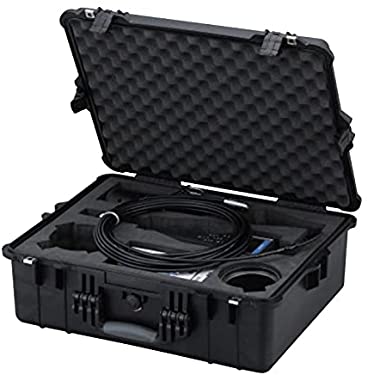

Carrying case U-5030 for measuring instruments of the U-50 seriesManufacturer Number: 3200174772

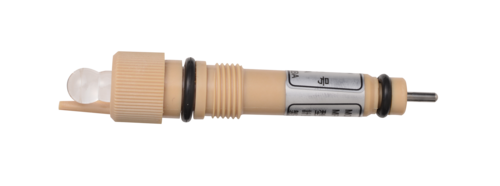

The pH sensor 7112 is a high-quality original replacement part for the HORIBA U-50 series of multiparameter measuring devices. It enables precise and reliable pH measurements in a wide range of water quality applications – from environmental monitoring to industrial process control.Quick replacement – can be mounted on the U-50 probe unit without toolsDurable & robust – designed for use in harsh environmental conditions Manufacturer article number: 3014057312
Original spare part from HORIBA – guaranteed to fit the U-50 series perfectlyThe Horiba Reference Electrode Tip 7210 is a high-quality replacement part designed specifically for Horiba's U50 series of multiparameter measuring devices. It ensures a precise and stable reference voltage, which is essential for reliable measurement results in demanding environmental and water analyses. The electrode tip is easy to replace and helps to extend the service life of the entire system. Thanks to its robust design, it is ideal for use in harsh field conditions. With the 7210 reference electrode tip, your U50 measuring device will always be ready for use and perform at its best. Manufacturer article number: 3200043582
