Horiba DS-72A-S Single Channel Conductivity/TDS/Resistivity/Salinity/Temperature Laboratory Benchtop Meter Set with Touchscreen
Product number: 895833
€1,340.00*
Please log in to receive your conditions.
Available in 28 days, delivery time 1-2 days
Product number:
895833
GTIN:
4260682386366
Measurement parameters:
Electrical Conductivity | TDS | Resistivity | Salinity | Temperature
Our comment:
The measuring electrodes suitable for the laboratory measuring instruments can be found under the product category "Spare parts and individual components"
Offer as PDF
Login for addressed offer The entered number of pieces will be taken into account when creating the offer.
Login for addressed offer The entered number of pieces will be taken into account when creating the offer.
Product information "Horiba DS-72A-S Single Channel Conductivity/TDS/Resistivity/Salinity/Temperature Laboratory Benchtop Meter Set with Touchscreen"
The High-End LAQUA DS-72 forms the top of the laboratory instruments series and measures the parameters electrical conductivity, TDS, resistance, salinity, as well as temperature and complies with the standards of the industrial pharmacopoeias (JIS, USP, EP, JP and CP).
The auto-diagnostic function of the F- series allows the user to ensure that the instruments always provide powerful and reliable measurements. The LAQUA DS-72 is fully GLP/GMP compliant and can be connected to an external printer. To ensure traceability, all results are recorded along with sample name, user ID and calibration information. The instrument offers you the proven calibration functions with automatic buffer recognition, stability display as well as the display of the electrode status (wear indicator).
We offer a comprehensive range of conductivity electrodes suitable for all types of applications and samples. Known for their stability and durability, HORIBA's electrodes provide accurate measurements under all conditions.
LAQUA's large capacitive touch screen panel:
- Large 5,7" (115,2 x 86,4 mm) graphic touch- color screen
- Display easy-to-understand menus for values and functions
- Effortless single-touch operations- tap, flick and drag
- Switch between real-time digital graphs or analogue displays during measurement with a single finger movement
- Single channel display
- Extensive on-screen support on the meter through an electronic user manual with colour images that can be accessed at any time and includes problem-solving instructions for calibration or measurement
Features:
- Easy navigation for main instrument and electrode inspections
- Mode for periodic inspections: JIS/pharmacopoeia/digital simulator
- Customisable auto-hold function for calibration and measurement
- Simultaneous connection to a GLP/GMP compliant and a PC
- Digital memory - up to 2,000 measurement data sets can be recorded
- 360° electrode stand which holds up to three electrodes and is height adjustable
- USB PC communication and USB memory
- Multilingual support (Japanese, English, Chinese, Korean)
Scope of delivery
- DS-72 Meter

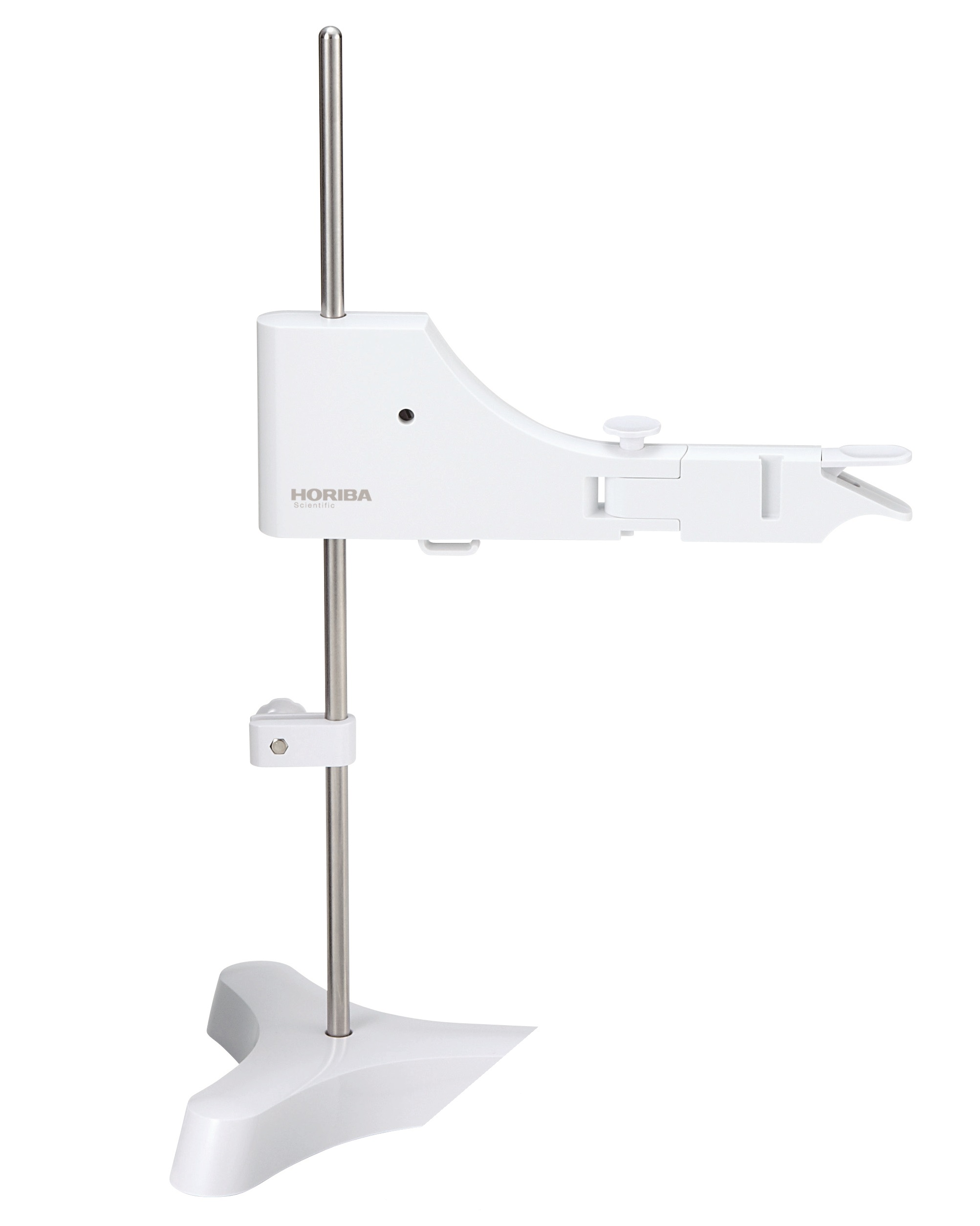

- electrode stand
- protection cover

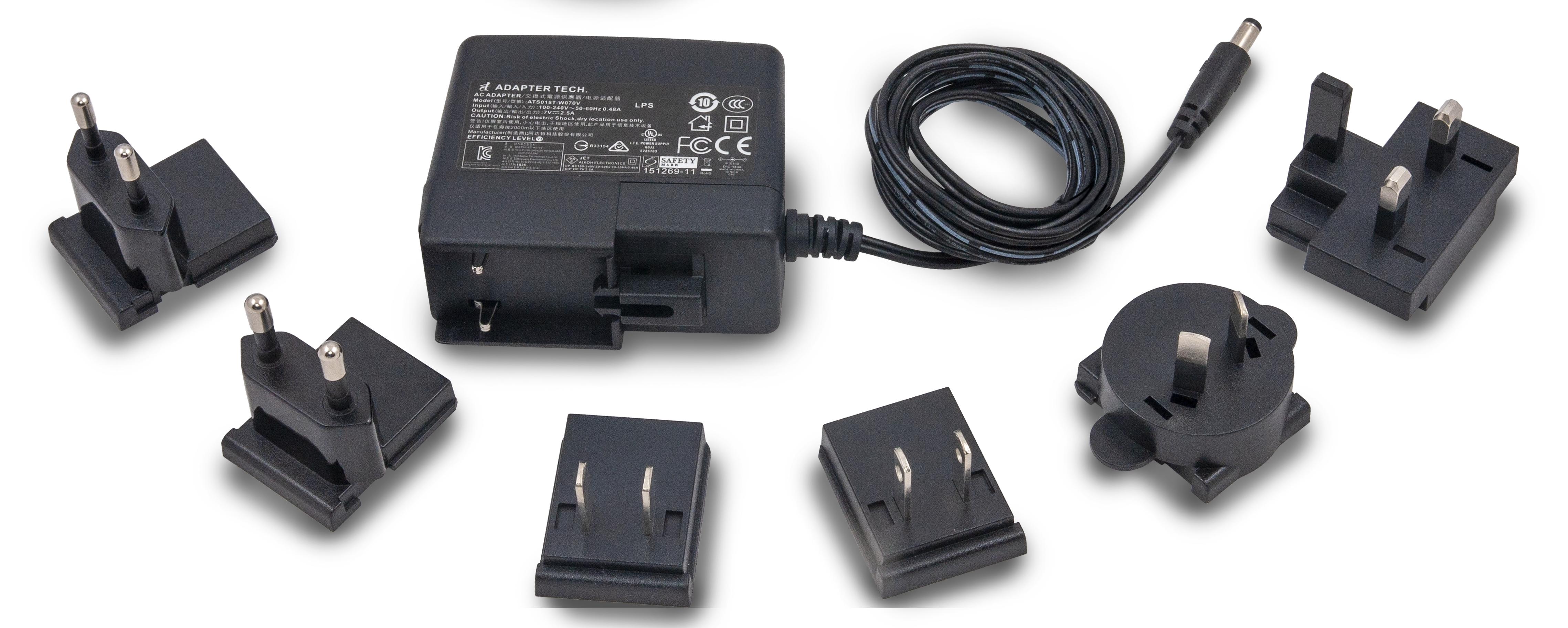

- power adaptor with 6 plugs
- data acquisition software in USB

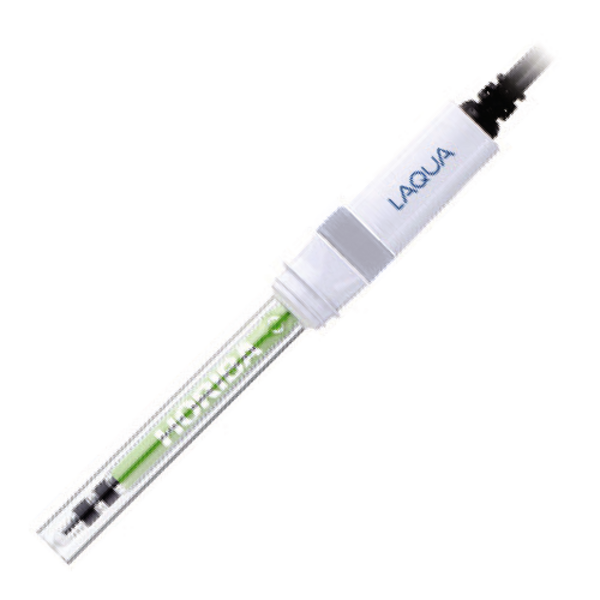

- 3552-10D - Platinum/Platinum black, glass-body k=1.0 conductivity cell with integrated temperature sensor, 1m cable, BNC & phono jack

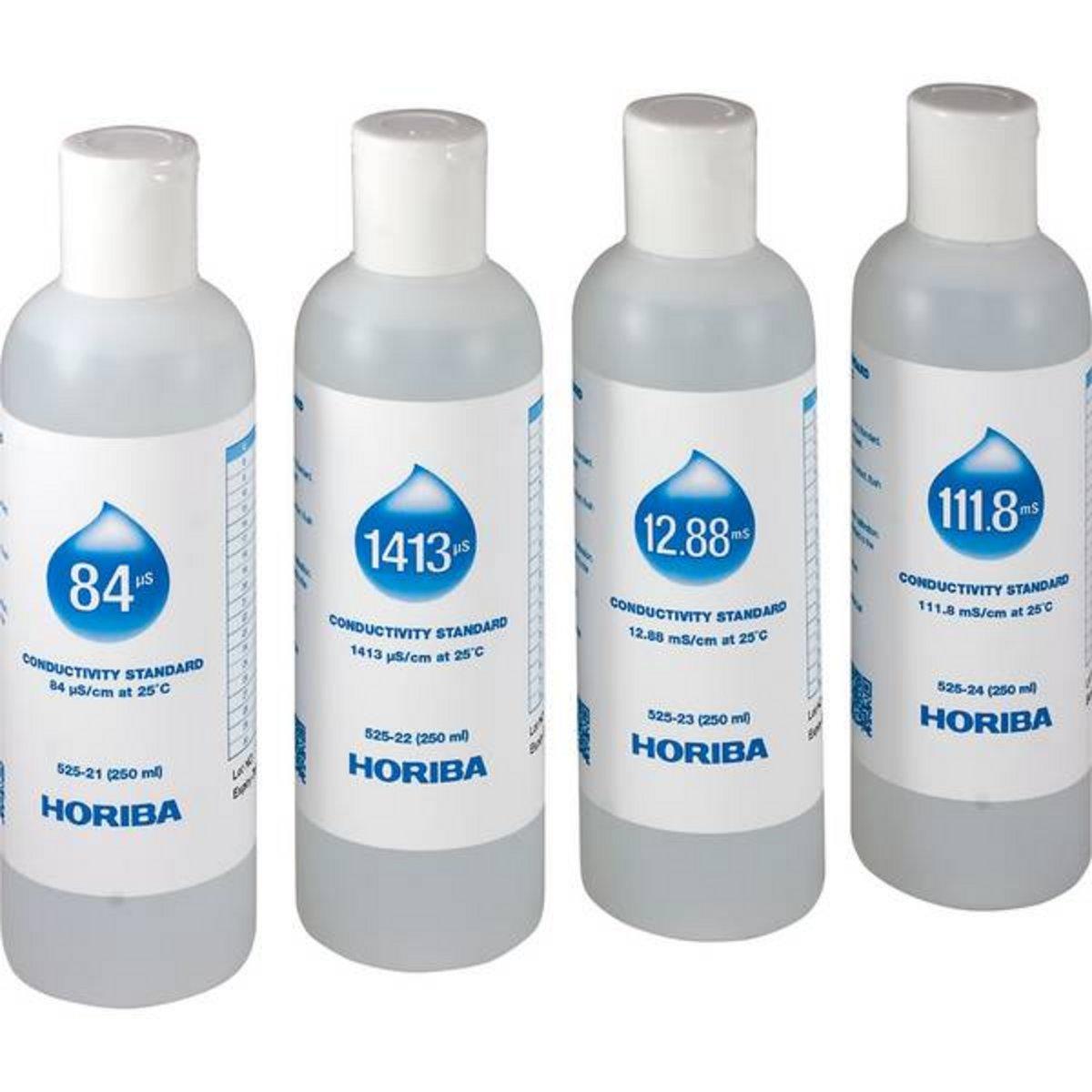

- 503-S - each 1x 84µS/cm, 1413µS/cm, 12.88mS/cm & 111.8mS/cm conductivity standard solution (250ml)
Dimensions
Weight
Other attributes
| Applications | Aquaculture and Coral, Aquariums, Beer, Beverages, Environmental, Food, Hydroponics, Laboratory, Schools, Water Conditioning, Wine |
|---|---|
| Brand | Horiba |
| Country of origin | JP |
| Customs tariff number | 90278930 |
| Parameter | Combined Multiparameter, Conductivity and TDS, Salinity, Thermometers (°C) |
| Quality | Professional |
Downloads:
Technical specifications
EC (Electrical Conductivity):
Measuring range:
0.000 µS/cm to 19.99mS/cm (k=0.1)
0.00 µS/cm to 199.9 mS/cm (k=1.0)
0.0 µS/cm to 1.999 S/cm (k=10.0)
Resolution: 0.05% of full scale
Accuracy: ±0.6% of full scale (±1.5% full scale > 18.0 mS/cm)
Reference Temperature: 15 to 30°C (adjustable)
Temperature Coefficient: 0.00 to 10.00% (adjustable)
Cell Constants: 0.1 / 1.0 / 10.0
Calibration Points: 4 (Auto / Manual)
Measurement Units:
Auto Ranging / Manual
S/cm, S/m, Fix (mS/cm)
TDS (total dissolved solids):
Measurement range: 0.01 mg/L to 1000 g/L
Resolution: 0.01 mg/L
Accuracy: ±0.1% of full scale
TDS curves: EN27888, Linear (0.40 to 1.0), 442, NaCl
Resisitivity:
Measurement range:
0.00 kΩ・cm to 199.9 MΩ・cm (k=0.1)
0.000 kΩ・cm to 19.99 MΩ・cm (k=1.0)
0.0 Ω・cm to 1.999 MΩ・cm (k=10.0)
Resolution: 0.05% of full scale
Accuracy: ±0.6% of full scale (±1.5% full scale > 1.80 MΩ・cm)
Salinity:
Measurement range: 0.00 to 80.00 ppt / 0.000 to 8.000%
Resolution: 0.01 ppt / 0.001%
Accuracy: 0.2% of full scale
Salinity Curves: NaCl / Seawater
Temperature:
Measurement range: -30.0°C to 130.0℃
Resolution: 0.1℃
Accuracy: ±0.4°C
More data:
Navigation Function: Yes
Memory: 2000
Auto Data-Logging: Yes
Data Search: Yes
Custom Printing: Yes
Real Time Clock: Yes
Date / Time Stamp: Yes
Sample ID Input: Yes
Operator ID Input: Yes
Password Setting: Yes
Auto Stable / Auto Hold: Yes
Offset / Slope Display: Yes (independant acid and alkaline slopes depending on calibration)
Calibration Alarm Limit: Yes
Electrode Status: On screen display
Diagnostic Messages: Yes
Display: Touch screen color graphic LCD
Languages: English, Japanese, Chinese, Korean, Vietnamese
Inputs: BNC, phono, DC socket
Outputs: USB, RS232C, analopg output
Power Requirements: AC adaptor 100 to 240V, 50/60 Hz
Electrode Stand: Stand alone
Weight: 700g
Dimensions: 170 x 174 x 73mm
