Horiba DS-72A-S-CFR Starter Set with 21 CFR Part 11 Software

Product number: 895833.3

Price on request

Version

DS-72A-S (starter set with conductivity electrode and calibration solution)

DS-72A-S (starter set with conductivity electrode, calibration solution and 21 CFR Part 11 software)

Inquire now

Product number: 895833.3

GTIN: 4260682386434

Measurement parameters: Electrical Conductivity | TDS | Resistivity | Salinity | Temperature

Our comment: The measuring electrodes suitable for the laboratory measuring instruments can be found under the product category "Spare parts and individual components"

Product information "Horiba DS-72A-S-CFR Starter Set with 21 CFR Part 11 Software"

The High-End LAQUA DS-72 forms the top of the laboratory instruments series and measures the parameters electrical conductivity, TDS, resistance, salinity, as well as temperature and complies with the standards of the industrial pharmacopoeias (JIS, USP, EP, JP and CP).

The auto-diagnostic function of the F- series allows the user to ensure that the instruments always provide powerful and reliable measurements. The LAQUA DS-72 is fully GLP/GMP compliant and can be connected to an external printer. To ensure traceability, all results are recorded along with sample name, user ID and calibration information. The instrument offers you the proven calibration functions with automatic buffer recognition, stability display as well as the display of the electrode status (wear indicator).

We offer a comprehensive range of conductivity electrodes suitable for all types of applications and samples. Known for their stability and durability, HORIBA's electrodes provide accurate measurements under all conditions.

LAQUA's large capacitive touch screen panel:

Large 5,7" (115,2 x 86,4 mm) graphic touch- color screen
Display easy-to-understand menus for values and functions
Effortless single-touch operations- tap, flick and drag
Switch between real-time digital graphs or analogue displays during measurement with a single finger movement
Single channel display
Extensive on-screen support on the meter through an electronic user manual with colour images that can be accessed at any time and includes problem-solving instructions for calibration or measurement

Features:

Easy navigation for main instrument and electrode inspections
Mode for periodic inspections: JIS/pharmacopoeia/digital simulator
Customisable auto-hold function for calibration and measurement
Simultaneous connection to a GLP/GMP compliant and a PC
Digital memory - up to 2,000 measurement data sets can be recorded
360° electrode stand which holds up to three electrodes and is height adjustable
USB PC communication and USB memory
Multilingual support (Japanese, English, Chinese, Korean)

Scope of delivery

DS-72 Meter

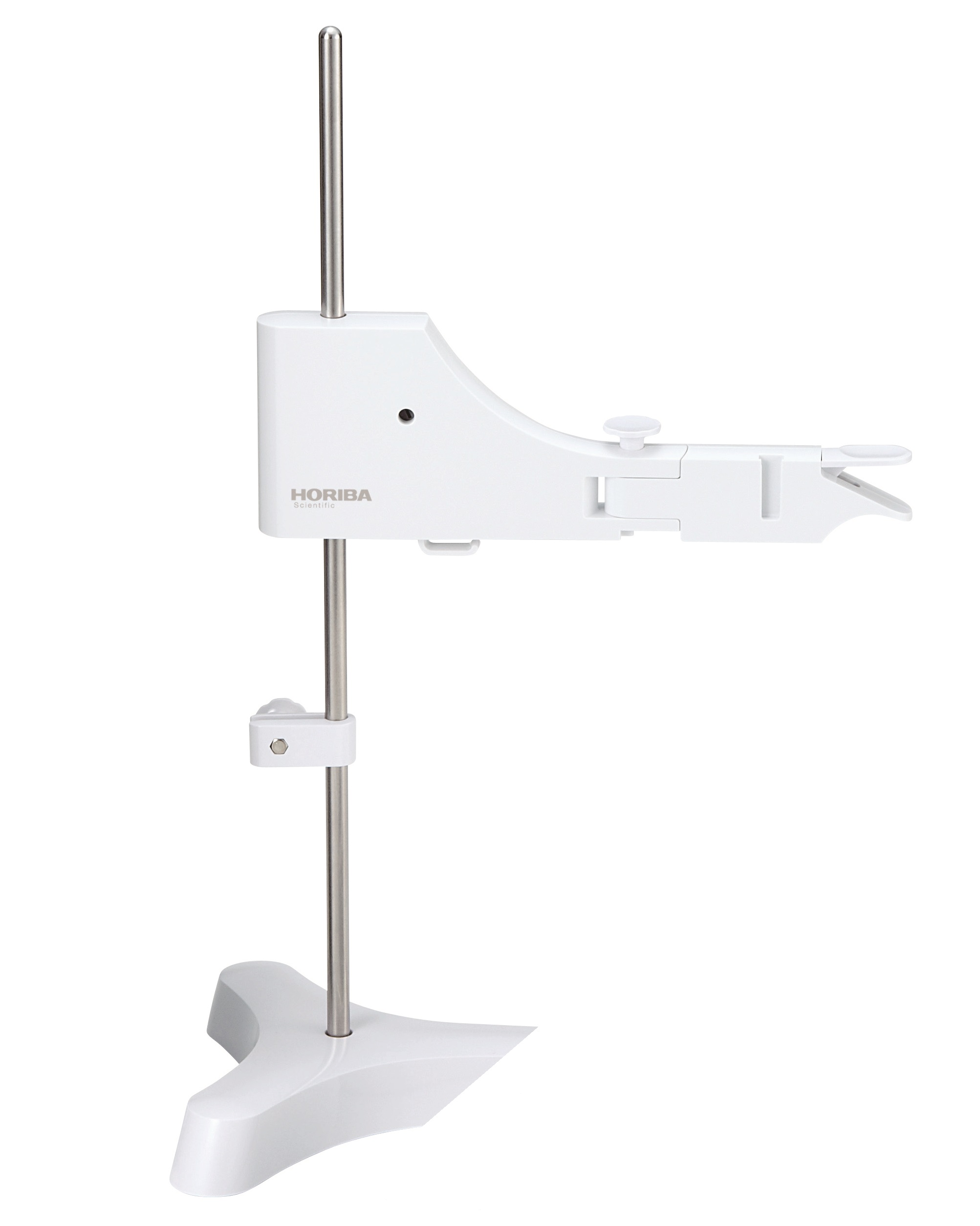

electrode stand

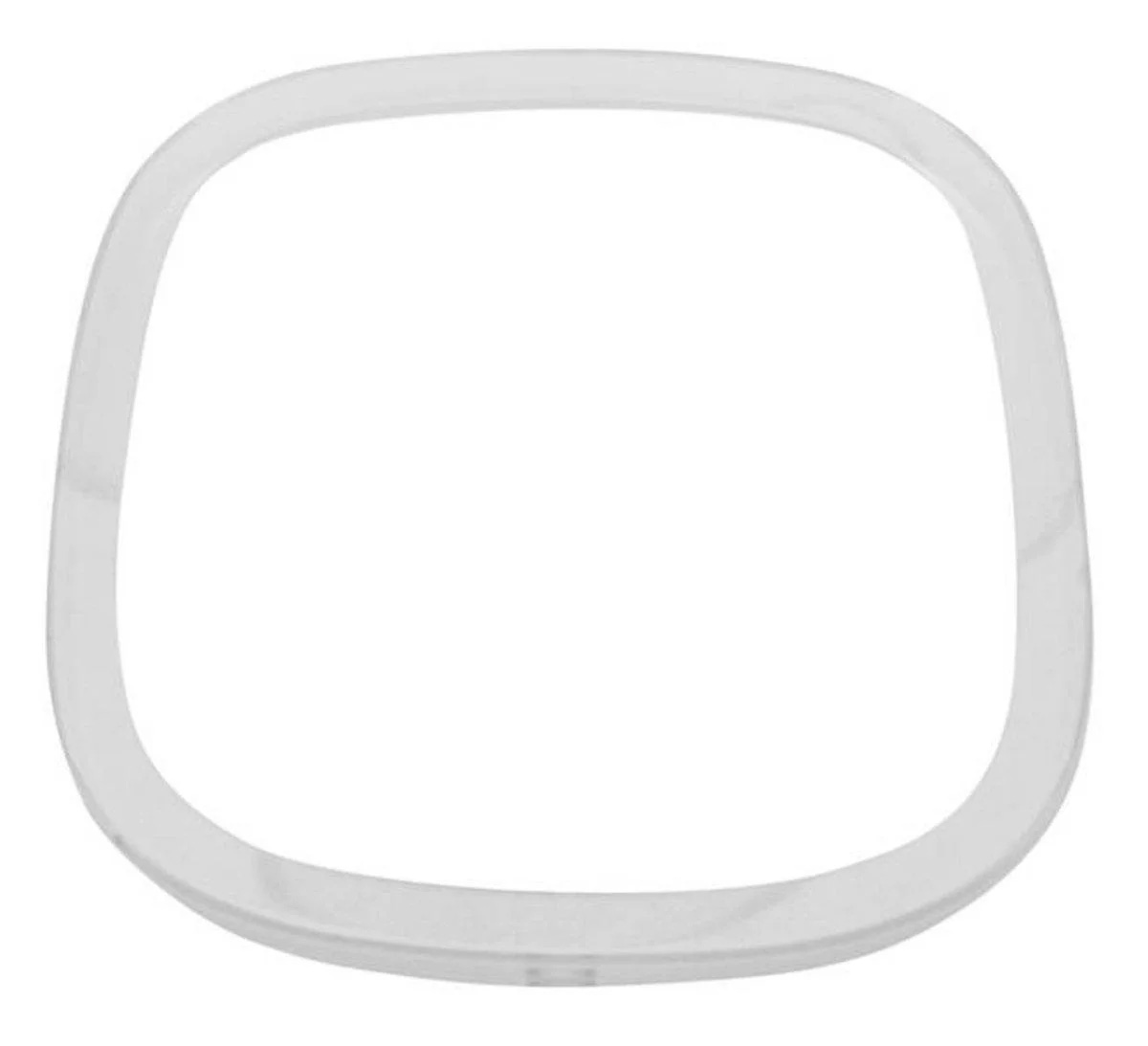

protection cover

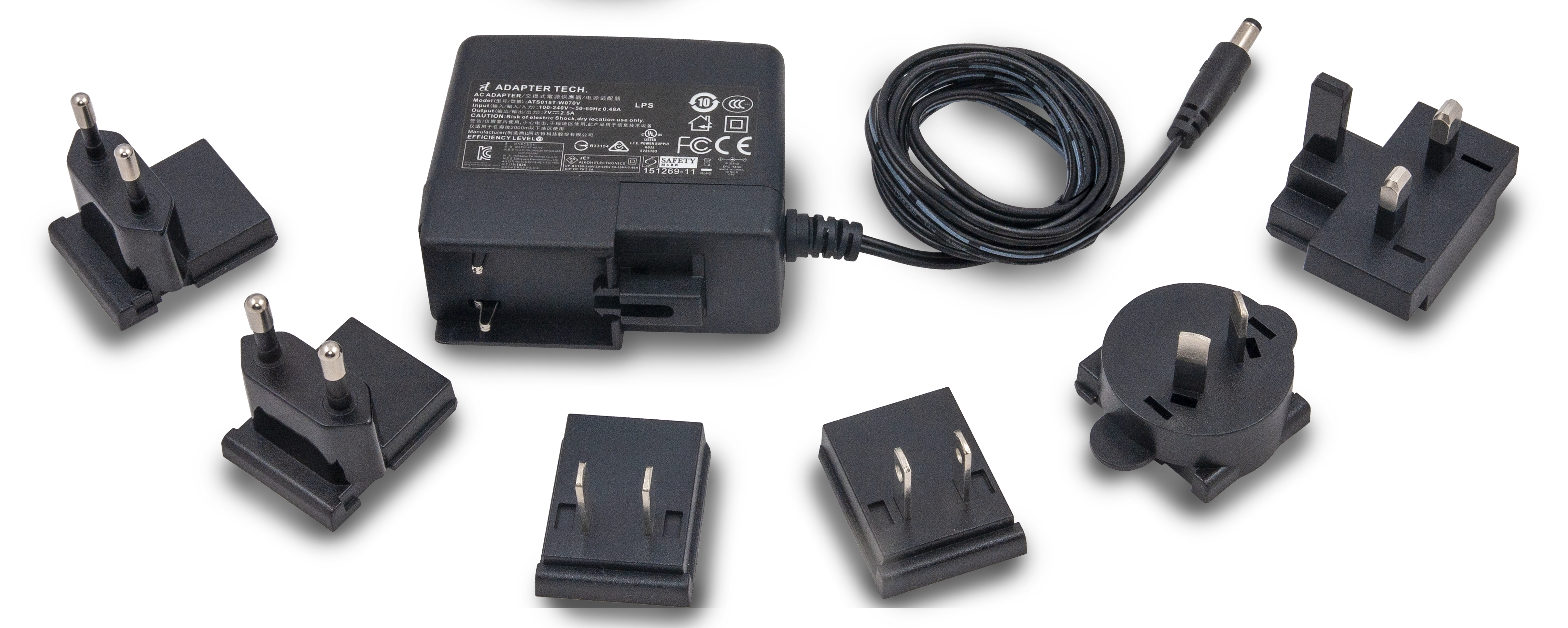

power adaptor with 6 plugs
data acquisition software in USB
21 CFR Part 11 Software

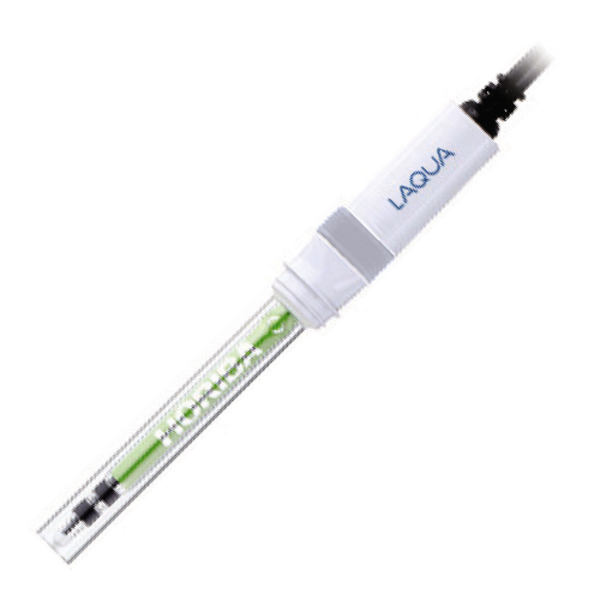

3552-10D - Platinum/Platinum black, glass-body k=1.0 conductivity cell with integrated temperature sensor, 1m cable, BNC & phono jack

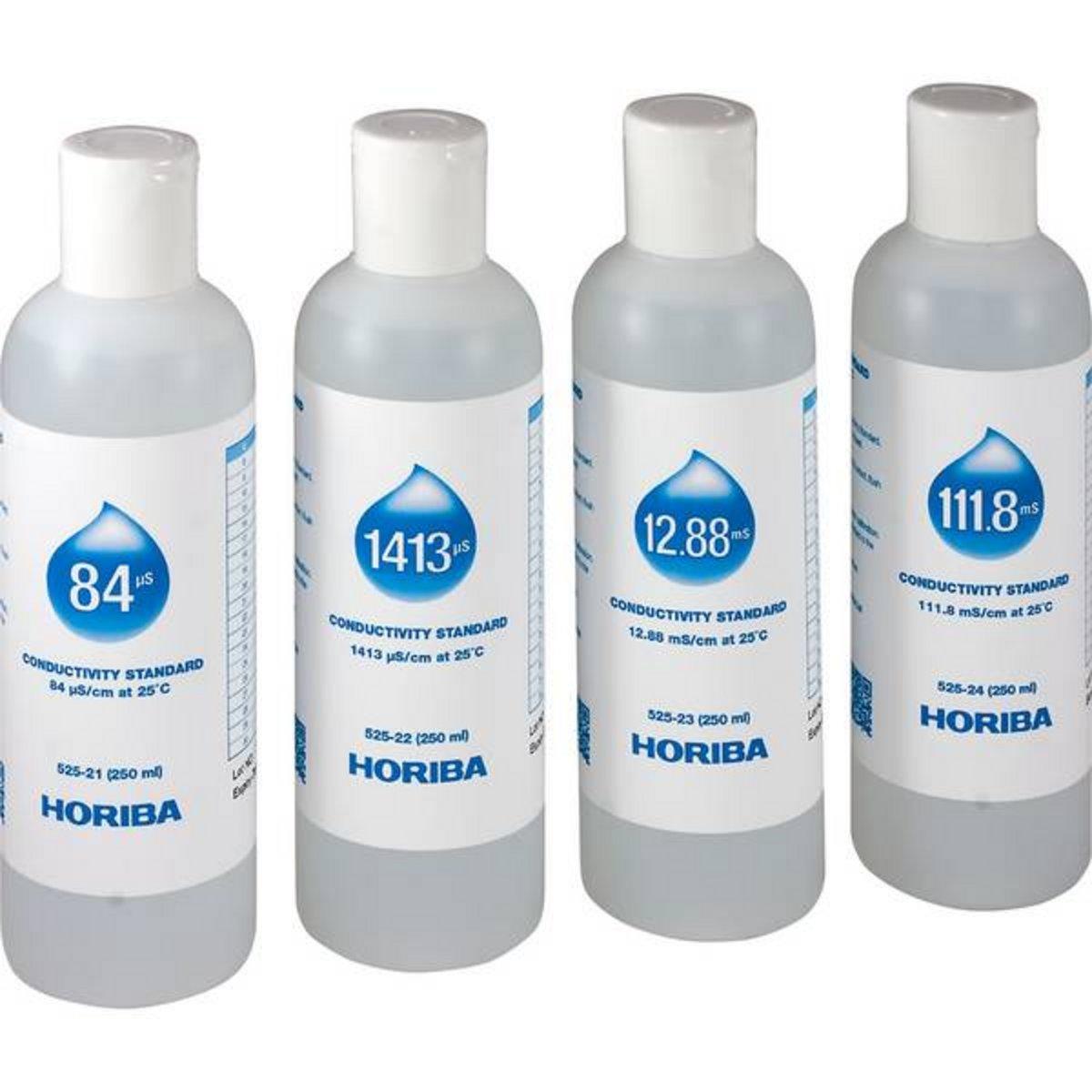

503-S - each 1x 84µS/cm, 1413µS/cm, 12.88mS/cm & 111.8mS/cm conductivity standard solution (250ml)

Other attributes

Applications	Aquaculture and Coral, Aquariums, Beer, Beverages, Environmental, Food, Hydroponics, Laboratory, Schools, Water Conditioning, Wine
Brand	Horiba
Parameter	Combined Multiparameter, Conductivity and TDS, Salinity, Thermometers (°C)
Quality	Professional

Downloads:

Flyer - Brochure

Technical specifications

EC (Electrical Conductivity):

Measuring range:

0.000 µS/cm to 19.99mS/cm (k=0.1)

0.00 µS/cm to 199.9 mS/cm (k=1.0)

0.0 µS/cm to 1.999 S/cm (k=10.0)

Resolution: 0.05% of full scale

Accuracy: ±0.6% of full scale (±1.5% full scale > 18.0 mS/cm)

Reference Temperature: 15 to 30°C (adjustable)

Temperature Coefficient: 0.00 to 10.00% (adjustable)

Cell Constants: 0.1 / 1.0 / 10.0

Calibration Points: 4 (Auto / Manual)

Measurement Units:

Auto Ranging / Manual

S/cm, S/m, Fix (mS/cm)

TDS (total dissolved solids):

Measurement range: 0.01 mg/L to 1000 g/L

Resolution: 0.01 mg/L

Accuracy: ±0.1% of full scale

TDS curves: EN27888, Linear (0.40 to 1.0), 442, NaCl

Resisitivity:

Measurement range:

0.00 kΩ・cm to 199.9 MΩ・cm (k=0.1)

0.000 kΩ・cm to 19.99 MΩ・cm (k=1.0)

0.0 Ω・cm to 1.999 MΩ・cm (k=10.0)

Resolution: 0.05% of full scale

Accuracy: ±0.6% of full scale (±1.5% full scale > 1.80 MΩ・cm)

Salinity:

Measurement range: 0.00 to 80.00 ppt / 0.000 to 8.000%

Resolution: 0.01 ppt / 0.001%

Accuracy: 0.2% of full scale

Salinity Curves: NaCl / Seawater

Temperature:

Measurement range: -30.0°C to 130.0℃

Resolution: 0.1℃

Accuracy: ±0.4°C

More data:

Navigation Function: Yes

Memory: 2000

Auto Data-Logging: Yes

Data Search: Yes

Custom Printing: Yes

Real Time Clock: Yes

Date / Time Stamp: Yes

Sample ID Input: Yes

Operator ID Input: Yes

Password Setting: Yes

Auto Stable / Auto Hold: Yes

Offset / Slope Display: Yes (independant acid and alkaline slopes depending on calibration)

Calibration Alarm Limit: Yes

Electrode Status: On screen display

Diagnostic Messages: Yes

Display: Touch screen color graphic LCD

Languages: English, Japanese, Chinese, Korean, Vietnamese

Inputs: BNC, phono, DC socket

Outputs: USB, RS232C, analopg output

Power Requirements: AC adaptor 100 to 240V, 50/60 Hz

Electrode Stand: Stand alone

Weight: 700g

Dimensions: 170 x 174 x 73mm
